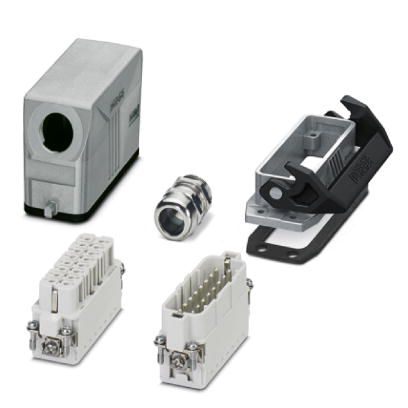

HC-STA-A16PT-BWS-HS-M25-ELCAL - Connector set
Connector set, number of positions: 16, connection method: Push-in connection, connection cross section: AWG 26- 14
Documents
Technical Specifications
Product properties
| Housing type | Complete housing |
| Application | Standard |
| Type | D25 |
| Number of Positions | 16 |
| No. of cable outlets | 1 |
| Protective cover | no |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated voltage (III/3) | 250 V |
| Rated surge voltage | 4 kV |
| Rated current | 16 A |
Connection data
| Connection Method | Push-in connection |
| Connection technology | Push-in connection |
| Conductor Cross Section | 0.14 mm² ... 2.5 mm² (applies to stranded conductors with ferrules) |
| Conductor Cross Section | 0.14 mm² ... 2.5 mm² (applies to stranded conductors with ferrules) |
| Connection cross section AWG | 26 ... 14 |
Installation dimensions
| Width of the assembly cutout | 24 mm |
| Length of the assembly cutout | 74 mm |
Material specifications
| Material Housing | Die-cast aluminum, saltwater-resistant |
| Flammability rating according to UL 94 | V0 |
| Contact Material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PC |
| Locking latch material | PA |
Cable/line
| External Cable Diameter | 11 mm ... 17 mm |
| External Cable Diameter | 14 mm ... 17 mm (for UL 514 B) |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| Enclosure rating (NEMA) | 4X (UL 50e) |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
