Phoenix Contact 1424446
AllConnectorsHeavy-duty connectors
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
HC-STA-A04PT-BWS-HT-M20-PLRBK
Weight
0.091 kg
This product is Not Cancellable/Not Returnable
Series HC-STA-A

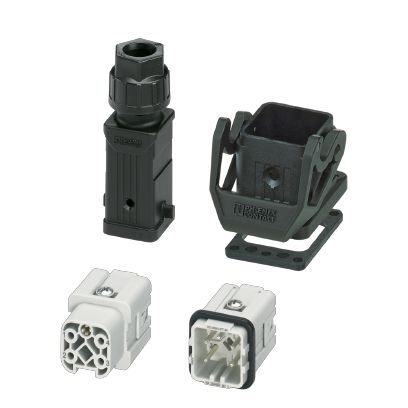

HC-STA-A04PT-BWS-HT-M20-PLRBK - Connector set

Connector set, number of positions: 4, material: PA, connection method: Push-in connection, connection cross section: AWG 26- 16

Technical Specifications

General

TypeD7
Connection MethodPush-in connection
Degree of protection for housingIP66
Degree of protection for housing12 (UL 50e)
Connection technologyPush-in connection
Rated voltage (III/3)230 V (Conductor-PE)
Rated surge voltage4 kV
Rated current10 A
Conductor Cross Section0.14 mm² ... 1.5 mm² (with ferrule)
Connection cross section AWG26 ... 16 (with ferrule)
External Cable Diameter4 mm ... 10 mm
Ambient Temperature (Operation)-40 °C ... 125 °C
Length of the assembly cutout21 mm
Width of the assembly cutout21 mm
Housing MaterialPA
Contact carrier materialPC
Locking latch materialPA
Integrated protective coverno

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values

Why Proax for Phoenix Contact 1424446?

Proax is an authorized distributor of Phoenix Contact 1424446 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size1
