Official DistributorSKU
MPN
HC-STA-B10PT-BWD-LS-M25-ELCAL
Weight
0.465 kg
This product is Not Cancellable/Not Returnable
Series HC-STA-B

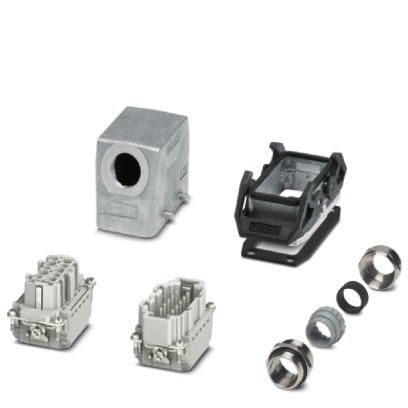

HC-STA-B10PT-BWD-LS-M25-ELCAL - Connector set
Connector set, number of positions: 10, connection method: Push-in connection, connection cross section: AWG 26- 14
Technical Specifications
General
| Number of Positions | 10+PE |
| Type | B10 |
| Connection Method | Push-in connection |
| Degree of protection for housing | IP66 |
| Degree of protection for housing | IP67 |
| Degree of protection for housing | 4 (UL 50e) |
| Degree of protection for housing | 4X (UL 50e) |
| Degree of protection for housing | 12 (UL 50e) |
| Connection technology | Push-in connection |
| Rated voltage (III/3) | 500 V |
| Rated surge voltage | 6 kV |
| Rated current | 16 A |
| Conductor Cross Section | 0.14 mm² ... 2.5 mm² (with ferrule) |
| Connection cross section AWG | 26 ... 14 |
| External Cable Diameter | 11 mm ... 17 mm |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Length of the assembly cutout | 65 mm |
| Width of the assembly cutout | 35 mm |
| Housing Material | Die-cast aluminum, salt water resistant |
| Contact carrier material | PC |
| Locking latch material | PA |
| Integrated protective cover | no |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Why Proax for Phoenix Contact 1416355?
Proax is an authorized distributor of Phoenix Contact 1416355 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
