Name: 4155110
Brand: Rittal
SKU: RIT4155110

Official Distributor

By Rittal

SKU

Weight

0.92 kg

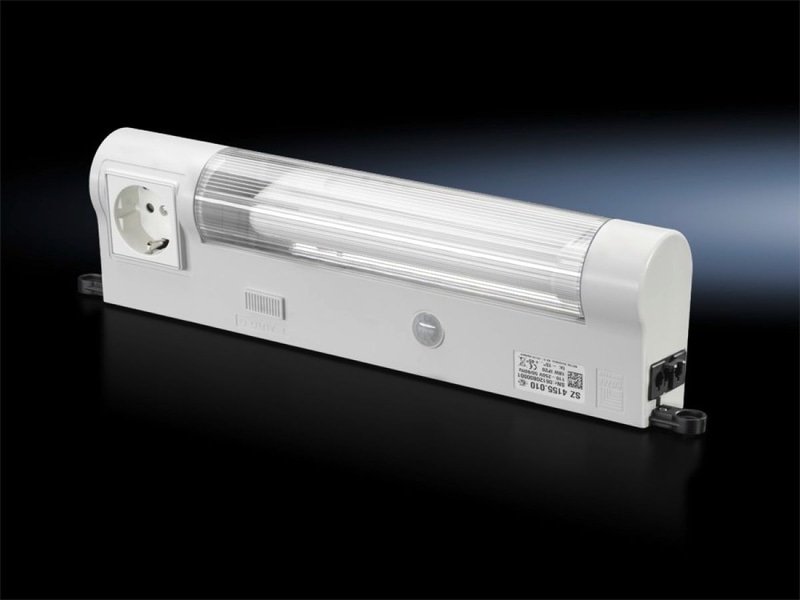

SZ Universal light, WHD: 343x95x55 mm, 18 W, 110-240 V, 50/60 Hz, with integral motion detector, with earthing-pin socket, VDE

Supply includes

Universal light
Integral motion detector
Light (bulb)
Light cover
Assembly components

Dimensions

Width	345 mm
Height	95 mm
Depth	55 mm

Benefits	Simple, fast mounting
Material	Plastic
Rated power	18 W
Ballast	Wide range voltage EB
Connection options	Power supply through connector
Integrated motion sensor	Yes
Light (bulb)	Compact fluorescent lamp, G24q-3 backplate
Protection category	I (PE conductor)
Switch (type)	Integral, on/off/motion detector mode
Light cover	Yes
Light – installation type	Screw fastening
Rated impulse withstand voltage, phase to phase	2500 V AC
Rated Insulation Voltage	250 V AC
Installation options	TS horizontal profile from roof frames: direct
Operating temperature range	-15 °C...45 °C
Outlets	1 x D, ground pin (type F, CEE 7/3)
Storage temperature range	-20 °C...70 °C
Rated operating voltage	110 V - 240 V, 1~, 50 Hz/60 Hz
Socket version	D, ground pin (type F, CEE 7/3)
Weight/packaging unit	0.92 kg
Customs tariff number	94054990
EAN	4028177679832
ETIM 7.0	EC000321
ECLASS 8.0	27189241
