SKU
Weight
0.44 kg
Series LED compact system light

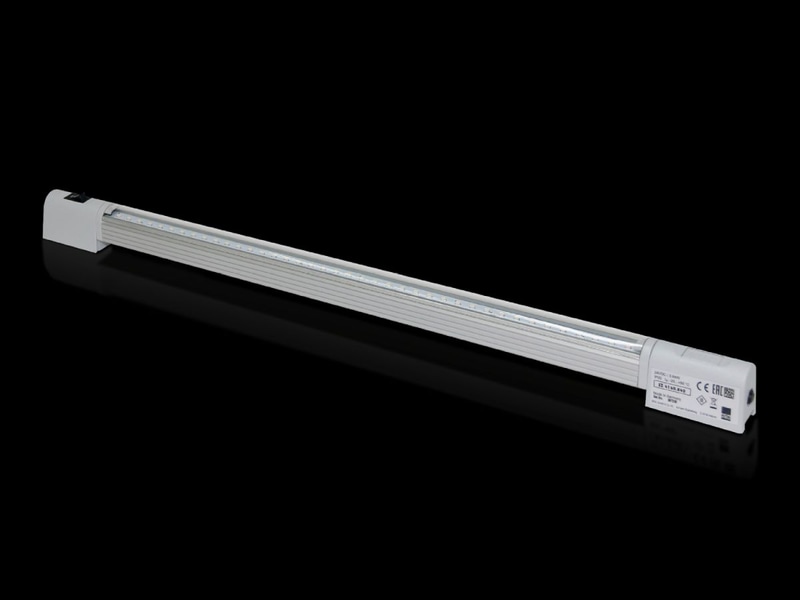

SZ System light LED compact, WHD: 530x33x21 mm, 24 V DC, Integral on/off/door-operated switch mode
Supply includes
LED compact system light
Light (bulb)
Light cover
Assembly components
LED compact system light
Supply voltage: 24 V DC
Technical Specifications
Dimensions
| Width | 530 mm |
| Height | 32.8 mm |
| Depth | 20.64 mm |
Material
| Light body | Extruded aluminum |
| Light cover | Polycarbonate (halogen-free) |
| Light ends | PC-ABS |
| Benefits | Max. EMC capacity. |
| Function principle | Integral through-wiring. |
| Color | Similar to RAL 7035 |
| Mounting distance screws | 550 mm |
| Connection options | Power supply through connector |
| Light (bulb) | LEDs, cool white |
| Protection category | III (SELV) |
| Switch (type) | Integral, on/off/door-operated switch mode |
| Light cover | Yes |
| Light – installation type | Screw fastening |
| Rated impulse withstand voltage, phase to earth | Depending on the power supply |
| Rated impulse withstand voltage, phase to phase | Depending on the power supply |
| Rated Insulation Voltage | Depending on the power supply |
| Rated current max DC note | The maximum rated current when installing luminaires is 2 A |
| with DC | 0.16 A |
| Number of LEDs | 40 |
| Mounting distance clip/magnet | 475 mm |
| Installation options | Directly onto the enclosure section with 25 mm pitch pattern |
| Note | Only intended for use in enclosures and closed housings |
| Light cone adjustment | Yes |
| Protection category IP to IEC 60 529 | IP 20 |
| Weight/packaging unit | 0.44 kg |
| Customs tariff number | 94054990 |
| EAN | 4028177630154 |
| ETIM 7.0 | EC000321 |
| ECLASS 8.0 | 27189241 |
