Rittal 2500300
AllIndustrial Control Panels ComponentsLighting and signalingPanel Lights
Featured
RittalOfficial Distributor

By Rittal

SKU
Weight
0.65 kg

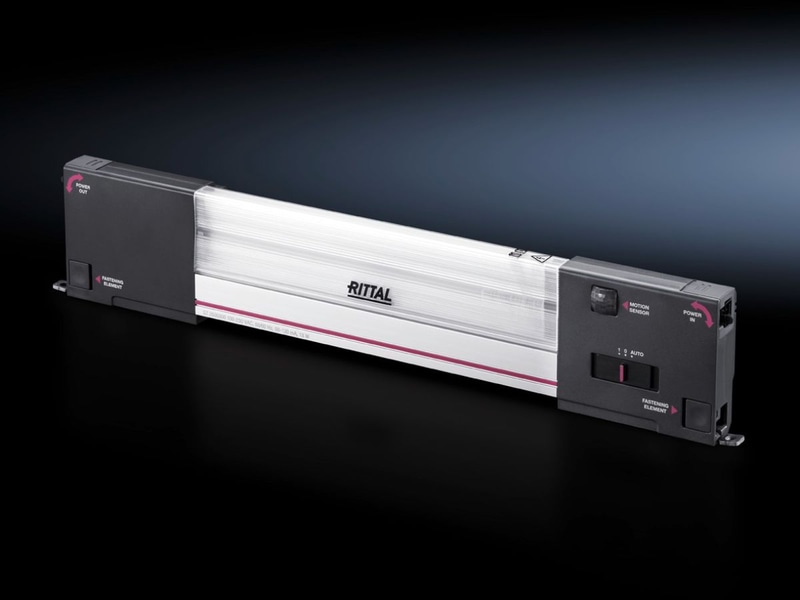

SZ System Light LED, 1200 Lumen, L: 437 mm, 100-240 V, with integral motion detector

Supply includes

Assembly screws

LED system light

LED system light - the first light designed especially for enclosures! Advanced LED technology provides even more light into the last recess.
Technical Specifications

Dimensions

Width437 mm
Height85 mm
Depth37 mm

Material

Light bodyExtruded aluminum
Light coverPolycarbonate
Light endsPC-ABS

VersionMotion sensor
BenefitsOptimum illumination of the entire enclosure
ColorEnclosure: RAL 7016
Rated power13 W
Connection optionsPower Supply, 3-pole
Motion detectorYes
Overvoltage categoryII
Protection categoryII (total insulation)
Light – installation typeScrew fastening
Rated impulse withstand voltage, phase to earth2500 V AC
Rated Insulation Voltage300 V AC
Installation optionsDirectly onto the enclosure section with 25 mm pitch pattern
Luminous flux1,200 lm
Light color4000 K (neutral white)
NoteConnection accessories should be ordered separately
Operating temperature range-20 °C...55 °C
Rated operating voltage100 V - 240 V, 1~, 50 Hz/60 Hz
Protection category IP to IEC 60 529IP 20
Weight/packaging unit0.65 kg
Customs tariff number94054990
EAN4028177809864
ETIM 7.0EC000321
ECLASS 8.027189241
