Rittal 2500200
AllIndustrial Control Panels ComponentsLighting and signalingPanel Lights
RittalOfficial Distributor

By Rittal

SKU
Weight
0.566 kg

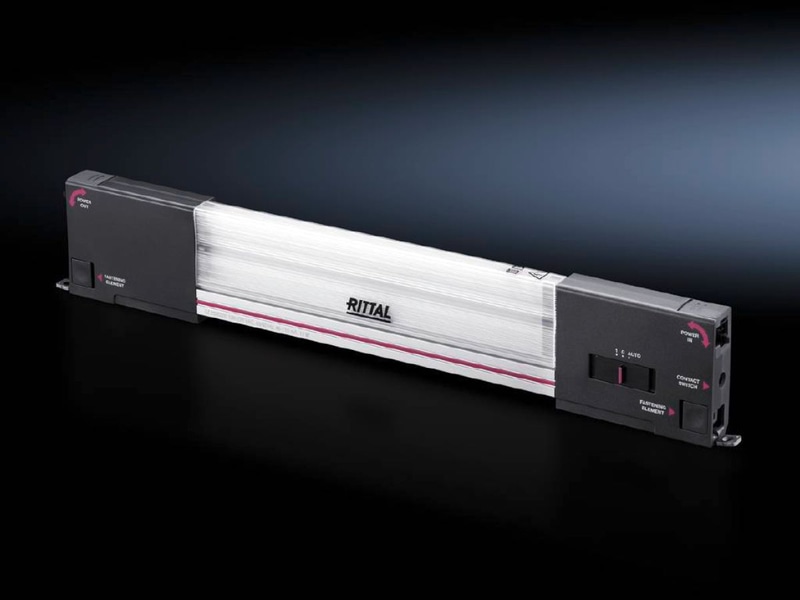

SZ System Light LED, 900 Lumen, L: 437 mm, 100-240 V

Supply includes

Assembly screws

LED system light

LED system light - the first light designed especially for enclosures! Advanced LED technology provides even more light into the last recess.
Technical Specifications

Dimensions

Width437 mm
Height75 mm
Depth23 mm

Material

Light bodyExtruded aluminum
Light coverPolycarbonate
Light endsPC-ABS

Versionwithout socket
BenefitsOptimum illumination of the entire enclosure
ColorEnclosure: RAL 7016
Rated power11 W
Connection optionsPower Supply, 3-pole
Overvoltage categoryII
Protection categoryII (total insulation)
Light – installation typeScrew fastening
Rated impulse withstand voltage, phase to earth2500 V AC
Rated Insulation Voltage300 V AC
Installation optionsDirectly onto the enclosure section with 25 mm pitch pattern
Luminous flux900 lm
Light color4000 K (neutral white)
NoteConnection accessories should be ordered separately
Operating temperature range-20 °C...55 °C
Rated operating voltage100 V - 240 V, 1~, 50 Hz/60 Hz
Protection category IP to IEC 60 529IP 20
Weight/packaging unit0.566 kg
Customs tariff number94054990
EAN4028177806955
ETIM 7.0EC000321
ECLASS 8.027189241
