Official DistributorBy Rittal
SKU
Weight
0.38 kg
Series LED compact system light

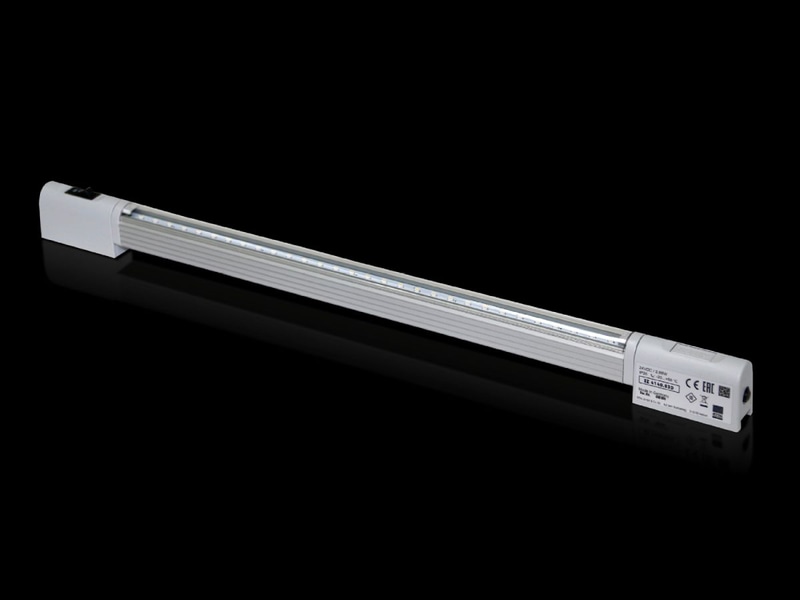

SZ System light LED compact, WHD: 430x33x21 mm, 24 V DC, Integral on/off/door-operated switch mode
Supply includes
LED compact system light
Light (bulb)
Light cover
Assembly components
LED compact system light
Supply voltage: 24 V DC
Technical Specifications
Dimensions
| Width | 430 mm |
| Height | 32.8 mm |
| Depth | 20.64 mm |
Material
| Light body | Extruded aluminum |
| Light cover | Polycarbonate (halogen-free) |
| Light ends | PC-ABS |
| Benefits | Max. EMC capacity. |
| Function principle | Integral through-wiring. |
| Color | Similar to RAL 7035 |
| Mounting distance screws | 450 mm |
| Connection options | Power supply through connector |
| Light (bulb) | LEDs, cool white |
| Protection category | III (SELV) |
| Switch (type) | Integral, on/off/door-operated switch mode |
| Light cover | Yes |
| Light – installation type | Screw fastening |
| Rated impulse withstand voltage, phase to earth | Depending on the power supply |
| Rated impulse withstand voltage, phase to phase | Depending on the power supply |
| Rated Insulation Voltage | Depending on the power supply |
| Rated current max DC note | The maximum rated current when installing luminaires is 2 A |
| with DC | 0.12 A |
| Number of LEDs | 30 |
| Mounting distance clip/magnet | 375 mm |
| Installation options | Directly onto the enclosure section with 25 mm pitch pattern |
| Note | Only intended for use in enclosures and closed housings |
| Light cone adjustment | Yes |
| Protection category IP to IEC 60 529 | IP 20 |
| Weight/packaging unit | 0.38 kg |
| Customs tariff number | 94054990 |
| EAN | 4028177630147 |
| ETIM 7.0 | EC000321 |
| ECLASS 8.0 | 27189241 |
Why Proax for Rittal 4140830?
Proax is an authorized distributor of Rittal 4140830 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
