Name: 4155010
Brand: Rittal
SKU: RIT4155010

Official Distributor

By Rittal

SKU

Weight

0.88 kg

This product has been discontinued

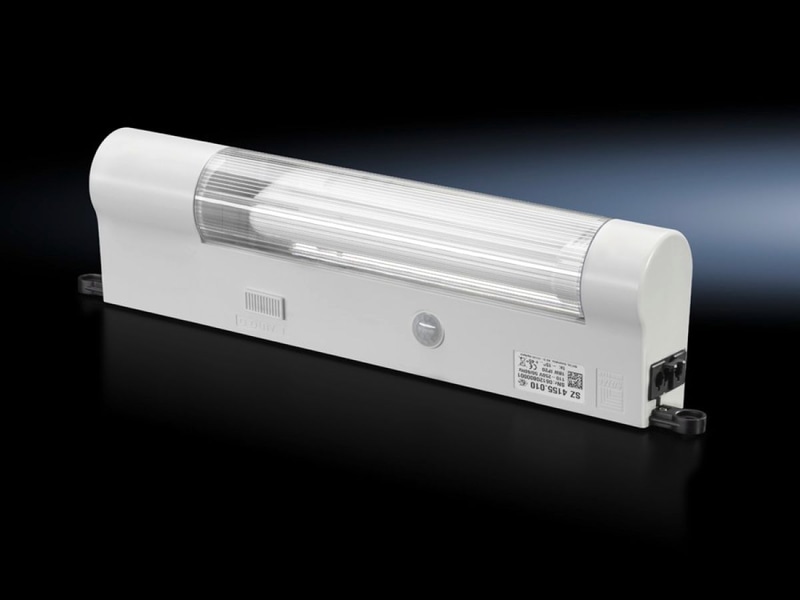

SZ Universal light, WHD: 343x95x55 mm, 18 W, 110-240 V, 50/60 Hz, with integral motion detector, VDE

Supply includes

Universal light
Integral motion detector
Light (bulb)
Light cover
Assembly components

Dimensions

Width	345 mm
Height	95 mm
Depth	55 mm

Benefits	Simple, fast mounting
Material	Plastic
Rated power	18 W
Ballast	Wide range voltage EB
Connection options	Power supply through connector
Integrated motion sensor	Yes
Light (bulb)	Compact fluorescent lamp, G24q-3 backplate
Protection category	I (PE conductor)
Switch (type)	Integral, on/off/motion detector mode
Light cover	Yes
Light – installation type	Screw fastening
Rated impulse withstand voltage, phase to phase	2500 V AC
Rated Insulation Voltage	250 V AC
Installation options	TS horizontal profile from roof frames: direct
Operating temperature range	-15 °C...45 °C
Storage temperature range	-20 °C...70 °C
Rated operating voltage	110 V - 240 V, 1~, 50 Hz/60 Hz
Weight/packaging unit	0.88 kg
Customs tariff number	94054990
EAN	4028177679825
ETIM 7.0	EC000321
ECLASS 8.0	27189241
