Name: 4139190
Brand: Rittal
SKU: RIT4139190

Official Distributor

By Rittal

SKU

Weight

2.52 kg

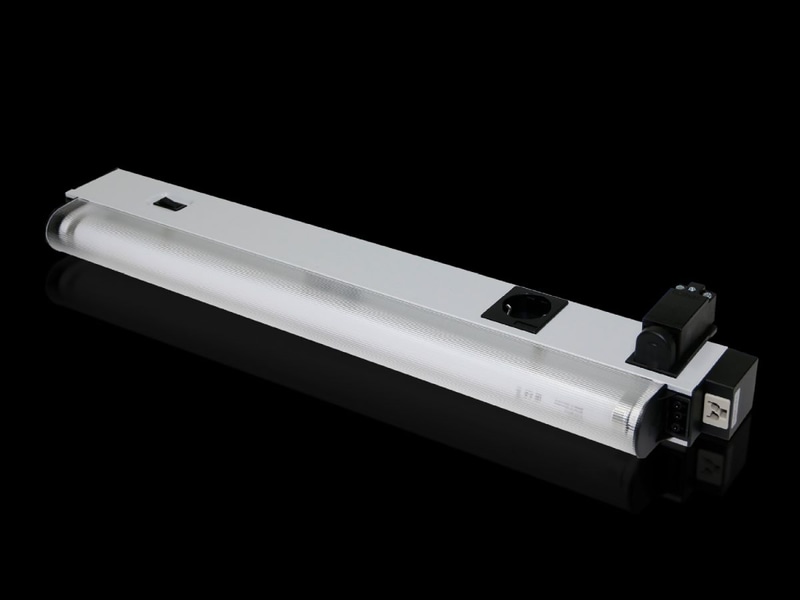

SZ Courtesy light, WHD: 682x117x50 mm, 18 W, 100-240 V, 50/60 Hz, with door-operated switch, with earthing-pin socket

Supply includes

Courtesy light
Light (bulb)
Light cover
Assembly components
Integral door-operated switch

Dimensions

Width	682 mm
Height	117 mm
Depth	50 mm

Version	with door-operated switch
Rated power	18 W
Ballast	Wide range voltage EB
Connection options	Power supply through connector
Integral door-operated switch	Yes
Light (bulb)	Fluorescent lamp, G13 backplate
Protection category	I (PE conductor)
Switch (type)	Integral, on/off/door-operated switch mode
Light cover	Yes
Light – installation type	Screw fastening
Rated impulse withstand voltage, phase to earth	1000 V AC
Rated impulse withstand voltage, phase to phase	500 V AC
Rated Insulation Voltage	500 V DC/1s
Installation options	TS horizontal profile from roof frames: direct
Operating temperature range	-15 °C...45 °C
Outlets	D, ground contact (type F, CEE 7/4)
Storage temperature range	-20 °C...70 °C
Rated operating voltage	100 V - 240 V, 1~, 50 Hz/60 Hz
Socket version	D, ground contact (type F, CEE 7/4)
Weight/packaging unit	2.52 kg
Customs tariff number	94054990
EAN	4028177320758
ETIM 7.0	EC000321
ECLASS 8.0	27189241
