Phoenix Contact 3260100
AllConnectorsTerminal blocksPush-in connection
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
PTPOWER 95
Weight
0.265 kg
Series PTPOWER

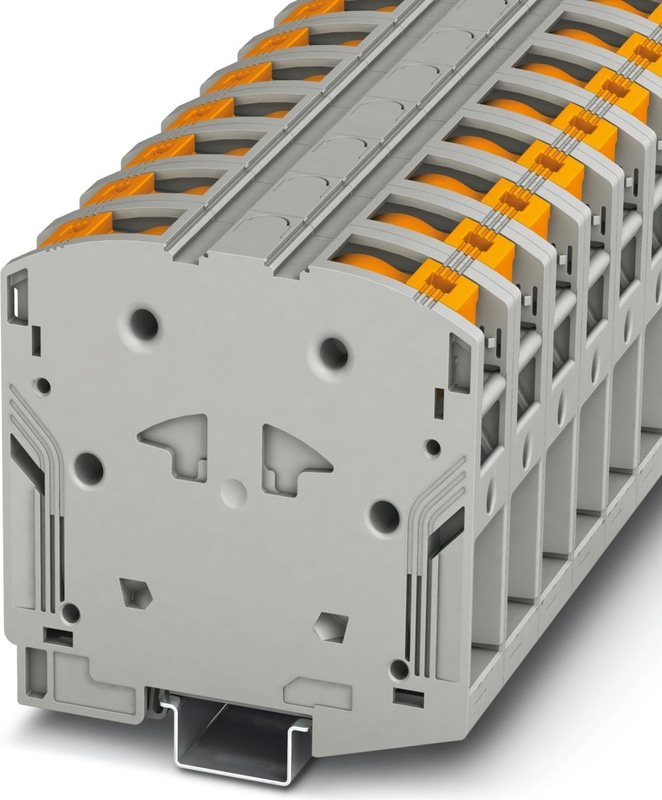

PTPOWER 95 - High-current terminal block

High-current terminal block, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: NS 35/15, color: gray

  • Quick and easy connection is now also possible for large conductors with the high-current terminal block
  • The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
  • The compact design enables wiring in a confined space
  • In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
  • Tested for railway applications
Technical Specifications

Product properties

Area of applicationRailway industry
Area of applicationMachine building
Area of applicationPlant engineering
Number of Positions1
Number of Connections2
Number of rows1
Potentials1

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage8 kV
Maximum power dissipation for nominal condition7.54 W

Connection data

Number of connections per level2
Nominal cross section95 mm²
Stripping length40 mm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid25 mm² ... 95 mm²
Cross section AWG2 ... 3/0 (converted acc. to IEC)
Conductor cross section flexible25 mm² ... 95 mm²
Conductor cross section, flexible [AWG]2 ... 3/0 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)25 mm² ... 95 mm²
Flexible conductor cross section (ferrule with plastic sleeve)25 mm² ... 95 mm²
Cross-section with insertion bridge, rigid70 mm²
Cross-section with insertion bridge, flexible70 mm²
Nominal Current232 A
Maximum Load Current232 A (with 95 mm² conductor cross section)
Nominal Voltage1000 V

Connection cross sections directly pluggable

Conductor cross section rigid25 mm² ... 95 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)25 mm² ... 95 mm²
Flexible conductor cross section (ferrule with plastic sleeve)25 mm² ... 95 mm²

Rated data (ATEX/IECEx)

Identification II 2 GD  Ex eb IIC Gb
Operating temperature range-60 °C ... 110 °C
Ex-certified accessories1206612 SZF 3-1,0X5,5
Ex-certified accessories1201662 E/AL-NS 35
List of bridgesInsertion bridge / EB 2-25/PT / 3260157
Bridge data144 A / 50 mm²
Bridge data174 A / 70 mm²
List of bridgesInsertion bridge / EB 3-25/PT / 3260160
Bridge data144 A / 50 mm²
Bridge data174 A / 70 mm²
Ex temperature increase40 K (237 A / 95 mm²)
Rated voltage1100 V
at bridging with insertion bridge1100 V
for bridging with bridge1100 V
Rated Insulation Voltage1000 V
Output(Permanent)

Ex level General

Rated current215 A
Maximum Load Current215 A
Contact resistance0.1 mΩ

Ex connection data General

Ferrule length40 mm
Stripping length40 mm
Nominal cross section95 mm²
Rated cross section AWG4/0
Connection capacity rigid25 mm² ... 95 mm²
Connection capacity AWG4 ... 4/0
Conductor cross section flexible, with ferrule without plastic sleeve min.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.95 mm²
Single conductor/terminal point, flexible, with ferrule, without plastic sleeve, AWG4 ... 4/0

Dimensions

Width25 mm
Height105.5 mm
Depth on NS 35/15108.7 mm

Material specifications

Colorgray
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Surge voltage test

Test voltage setpoint9.8 kV
ResultTest passed

Temperature-rise test

Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 95 mm²11.4 kA
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint6 kV
ResultTest passed

Mechanical data

Open side panelNo

Mechanical strength

ResultTest passed

Attachment on the carrier

DIN rail/fixing supportNS 35/15
Test force setpoint15 N
ResultTest passed

Test for conductor damage and slackening

Rotation speed10 rpm
Revolutions135
Conductor cross section/weight25 mm² / 4.5 kg
Conductor cross section/weight95 mm²/14 kg
ResultTest passed

Aging

Temperature cycles192
ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Oscillation/broadband noise

SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpectrumService life test category 2, bogie-mounted
Frequencyf1 = 5 Hz to f2 = 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed

Shocks

SpecificationDIN EN 50155 (VDE 0115-200):2008-03
Pulse shapeHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Mounting

Mounting TypeNS 35/15
Accessories
  • Phoenix Contact3260145
    3260145
    Pick-off terminal block - AGK 10-PTPOWER
  • Phoenix Contact3260148
    3260148
    Pick-off terminal block - AGK 10-PTPOWER BU
  • Phoenix Contact3260151
    3260151
    Pick-off terminal block - AGK 10-PTPOWER GN/YE
  • Phoenix Contact3260154
    3260154
    Pick-off terminal block - AGK 10-PTPOWER BK/YE
  • Phoenix Contact1206612
    1206612
    Screwdriver - SZF 3-1,0X5,5
  • Phoenix Contact3260157
    3260157
    EB 2-25/PT - Insertion bridge, pitch: 25 mm, number of positions: 2, length: 73 mm, color: red
  • Phoenix Contact3260160
    3260160
    EB 3-25/PT - Insertion bridge, pitch: 25 mm, number of positions: 3, length: 73 mm, color: red
  • Phoenix Contact3260161
    3260161
    EB 4-25/PT - Insertion bridge, pitch: 25 mm, number of positions: 4, length: 73 mm, color: red
  • Phoenix Contact3260162
    3260162
    Short-circuit bridge for grounding and short-circuiting, short-circuit currents of 800 A/15 s, 1300 A/5 s, 2700 A/10 ms, length: 74.5 mm, width: 140.5 mm, color: green-yellow
  • Phoenix Contact1201730
    1201730
    NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1201714
    1201714
    NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0806602
    0806602
    NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
  • Phoenix Contact1204135
    1204135
    NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1201756
    1201756
    NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206599
    1206599
    NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206586
    1206586
    NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1201895
    1201895
    NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206573
    1206573
    NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
  • Phoenix Contact1201662
    1201662
    E/AL-NS 35 - End clamp, for end support of UKH 50 to UKH 240, is pushed onto DIN rail NS 35 and fixed with 2 screws, width: 10 mm, color: aluminum
  • Phoenix Contact1053001
    1053001
    Zack marker strip - ZB 10:UNBEDRUCKT
  • Phoenix Contact0824941
    0824941
    Zack marker strip - ZB 10 CUS
  • Phoenix Contact1053014
    1053014
    1053014 -
  • Phoenix Contact1053027
    1053027
    1053027 -
  • Phoenix Contact1053412
    1053412
    Marker for terminal blocks - ZB10,LGS:L1-N,PE
  • Phoenix Contact1053438
    1053438
    Marker for terminal blocks - ZB10,LGS:U-N
  • Phoenix Contact0818069
    0818069
    Marker for terminal blocks - UC-TM 10
  • Phoenix Contact0824605
    0824605
    Marker for terminal blocks - UC-TM 10 CUS
  • Phoenix Contact0829142
    0829142
    Marker for terminal blocks - UCT-TM 10
  • Phoenix Contact0809997
    0809997
    Zack Marker strip, flat - ZBF10:UNBEDRUCKT
  • Phoenix Contact0810009
    0810009
    Zack Marker strip, flat - ZBF10,LGS:FORTL.ZAHLEN
  • Phoenix Contact0810025
    0810025
    Zack Marker strip, flat - ZBF10,QR:FORTL.ZAHLEN
  • Phoenix Contact0818124
    0818124
    Marker for terminal blocks - UC-TMF 10
  • Phoenix Contact0829204
    0829204
    Marker for terminal blocks - UCT-TMF 10
  • Phoenix Contact0201744
    0201744
    Test plugs - MPS-MT
  • Phoenix Contact0201663
    0201663
    MPS-IH WH - Insulating sleeve, color: white
  • Phoenix Contact0201676
    0201676
    MPS-IH RD - Insulating sleeve, color: red
  • Phoenix Contact0201689
    0201689
    MPS-IH BU - Insulating sleeve, color: blue
  • Phoenix Contact0201692
    0201692
    MPS-IH YE - Insulating sleeve, color: yellow
  • Phoenix Contact0201702
    0201702
    MPS-IH GN - Insulating sleeve, color: green
  • Phoenix Contact0201728
    0201728
    MPS-IH GY - Insulating sleeve, color: gray
  • Phoenix Contact0201731
    0201731
    MPS-IH BK - Insulating sleeve, color: black
  • Phoenix Contact1212039
    1212039
    CRIMPFOX 25R - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 10 mm2 ... 25 mm2, lateral entry, WM crimp
  • Phoenix Contact1212041
    1212041
    CRIMPFOX 50R - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 35 mm2 ... 50 mm2, lateral entry, WM crimp
  • Phoenix Contact1212072
    1212072
    CRIMPFOX-M - Basic pliers, for accommodating dies for a wide range of type of contacts
  • Phoenix Contact1212318
    1212318
    CRIMPFOX-C120 - Basic pliers, for accommodating dies for a wide range of type of contacts up to 120 mm2
  • Phoenix Contact3241238
    3241238
    A 25 -40 - Ferrule, color: silver
  • Phoenix Contact3241239
    3241239
    A 35 -40 - Ferrule, color: silver
  • Phoenix Contact3241240
    3241240
    A 50 -40 - Ferrule, color: silver
  • Phoenix Contact3241241
    3241241
    A 70 -40 - Ferrule, color: silver
  • Phoenix Contact3241242
    3241242
    A 95 -40 - Ferrule, color: silver

Why Proax for Phoenix Contact 3260100?

Proax is an authorized distributor of Phoenix Contact 3260100 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information

Pack Size3
Recommended
  • Phoenix Contact3260133
    3260133
    PTPOWER 95-F - High-current terminal block, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: direct screw connection, color: gray
  • Phoenix Contact3260139
    3260139
    PTPOWER 95-FE - High-current terminal block, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: NS 35/15, color: black/yellow
  • Phoenix Contact3260142
    3260142
    PTPOWER 95-FE-F - High-current terminal block, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: direct screw connection, color: black/yellow
  • Phoenix Contact3260136
    3260136
    PTPOWER 95-F BU - High-current terminal block, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: direct screw connection, color: blue
  • Phoenix Contact3260109
    3260109
    PTPOWER 95-3L - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 6, number of positions: 3, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: NS 35/15, color: gray
  • Phoenix Contact3260115
    3260115
    PTPOWER 95-3L/FE - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 8, number of positions: 4, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: NS 35/15, color: gray/black-yellow
  • Phoenix Contact3260127
    3260127
    High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 8, number of positions: 4, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: direct screw connection, color: gray/black-yellow
  • Phoenix Contact3260112
    3260112
    PTPOWER 95-3L/N - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 8, number of positions: 4, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: NS 35/15, color: gray/blue
  • Phoenix Contact3260121
    3260121
    PTPOWER 95-3L-F - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 6, number of positions: 3, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: direct screw connection, color: gray
  • Phoenix Contact3260118
    3260118
    PTPOWER 95-3L/N/FE - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 10, number of positions: 5, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: NS 35/15, color: gray/blue/black-yellow
  • Phoenix Contact3260130
    3260130
    PTPOWER 95-3L/N/FE-F - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 10, number of positions: 5, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: direct screw connection, color: gray/blue/black-yellow
  • Phoenix Contact3260124
    3260124
    PTPOWER 95-3L/N-F - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 8, number of positions: 4, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: direct screw connection, color: gray/blue
  • Phoenix Contact3260106
    3260106
    PTPOWER 95-PE - Ground terminal, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, Rated cross section: 95 mm2, cross section: 25 mm2 - 95 mm2, mounting type: 2.3 mm copper DIN rail, color: green-yellow
  • Phoenix Contact3260103
    3260103
    PTPOWER 95 BU - High-current terminal block, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: NS 35/15, color: blue
  • Phoenix Contact3260163
    3260163
    PTPOWER 95 P - High-current terminal block, with test socket, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: NS 35/15, color: gray
  • Phoenix Contact3260128
    3260128
    PTPOWER 95 P-3L/FE-F - High-current terminal block, blocked, with test socket, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 8, number of positions: 4, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: direct screw connection, color: gray/black-yellow
  • Phoenix Contact3260166
    3260166
    High-current terminal block, with test socket, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: NS 35/15, color: blue
  • Phoenix Contact3260050
    3260050
    PTPOWER 50 - High-current terminal block, nom. voltage: 1000 V, nominal current: 150 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, 1 level, cross section: 10 mm2 - 70 mm2, mounting type: NS 35/15, color: gray
  • Phoenix Contact3260061
    3260061
    PTPOWER 50-F - High-current terminal block, nom. voltage: 1000 V, nominal current: 150 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, 1 level, cross section: 10 mm2 - 70 mm2, mounting type: direct screw connection, color: gray
  • Phoenix Contact3260063
    3260063
    PTPOWER 50-FE - High-current terminal block, nom. voltage: 1000 V, nominal current: 150 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, 1 level, cross section: 10 mm2 - 70 mm2, mounting type: NS 35/15, color: black/yellow
Sold in quantities of 3

Not in stock

Request lead time or order—we'll ensure quick delivery

Phoenix Contact Availability
