Official DistributorSKU
MPN
AGK 10-PTPOWER
Weight
0.023 kg
Series AGK

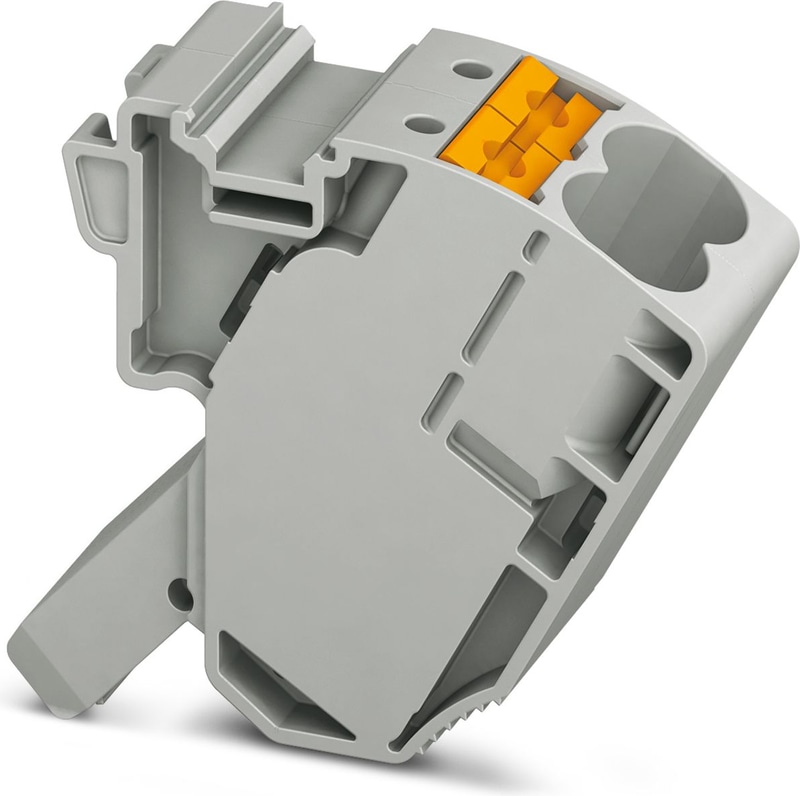

AGK 10-PTPOWER - Pick-off terminal block
Pick-off terminal block, nom. voltage: 1500 V, nominal current: 57 A, number of connections: 2, connection method: Push-in connection, 1 level, Rated cross section: 10 mm2, cross section: 0.5 mm2 - 16 mm2, mounting type: on base element, color: gray
- Large-surface marking
- The fully insulated, optionally used pick-off terminal block enables voltage pick-off
- Pick-off terminal block, for snapping into the side insertion funnel
Technical Specifications
Notes
| General | For use with PTPOWER 50, 95, 150, and 185 PowerTurn high-current terminal blocks |
Product properties
| Number of Connections | 2 |
| Number of rows | 1 |
| Potentials | 1 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 1.82 W |
Connection data
| Number of connections per level | 2 |
| Nominal cross section | 10 mm² |
1 level
| Stripping length | 18 mm |
| Internal cylindrical gage | A6 |
| Conductor cross section rigid | 0.5 mm² ... 16 mm² |
| Cross section AWG | 20 ... 6 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 10 mm² |
| Conductor cross section, flexible [AWG] | 20 ... 8 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 10 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 10 mm² |
| Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) | 0.5 mm² ... 4 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 1.5 mm² ... 4 mm² |
| Nominal Current | 57 A |
| Maximum Load Current | 57 A (The maximum load current must not be exceeded by the total current of all connected conductors.) |
| Nominal Voltage | 1500 V |
| Nominal cross section | 10 mm² |
1 level Connection cross sections directly pluggable
| Conductor cross section rigid | 1 mm² ... 16 mm² |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 4 mm² ... 10 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 2.5 mm² ... 10 mm² |
Rated data (ATEX/IECEx)
| Identification | II 2 GD Ex eb IIC Gb |
| Operating temperature range | -60 °C ... 110 °C |
| Ex-certified accessories | 1204517 SZF 1-0,6X3,5 |
| Ex temperature increase | 40 K (51 A / 10 mm²) |
| Rated voltage | 1100 V |
| Rated Insulation Voltage | 1000 V |
| Output | (Permanent) |
Ex level General
| Rated current | 50 A |
| Maximum Load Current | 50 A |
| Contact resistance | 1.05 mΩ |
Ex connection data General
| Ferrule length | 18 mm |
| Stripping length | 18 mm |
| Nominal cross section | 10 mm² |
| Rated cross section AWG | 6 |
| Connection capacity rigid | 0.5 mm² ... 16 mm² |
| Connection capacity AWG | 20 ... 6 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 10 mm² |
| Single conductor/terminal point, flexible, with ferrule, without plastic sleeve, AWG | 20 ... 8 |
Dimensions
| Width | 18.5 mm |
| Height | 35 mm |
| Depth | 34.7 mm |
Material specifications
| Color | gray |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Surge voltage test
| Test voltage setpoint | 9.8 kV |
| Result | Test passed |
Temperature-rise test
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Result | Test passed |
| Short-time withstand current 10 mm² | 1.2 kA |
| Result | Test passed |
Power-frequency withstand voltage
| Result | Test passed |
Mechanical data
| Open side panel | No |
Mechanical strength
| Result | Test passed |
Test for conductor damage and slackening
| Rotation speed | 10 rpm |
| Revolutions | 135 |
| Conductor cross section/weight | 0.5 mm² / 0.3 kg |
| Conductor cross section/weight | 10 mm² / 2 kg |
| Conductor cross section/weight | 16 mm² / 2.9 kg |
| Result | Test passed |
Aging
| Temperature cycles | 192 |
| Result | Test passed |
Needle-flame test
| Time of exposure | 30 s |
| Result | Test passed |
Oscillation/broadband noise
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Spectrum | Service life test category 2, bogie-mounted |
| Frequency | f1 = 5 Hz to f2 = 250 Hz |
| ASD level | 6.12 (m/s²)²/Hz |
| Acceleration | 3.12g |
| Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis |
| Result | Test passed |
Shocks
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Pulse shape | Half-sine |
| Acceleration | 30g |
| Shock duration | 18 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed |
Ambient conditions
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting Type | on base element |
