Official DistributorSKU
MPN
EBK 4-25/PT
Weight
0.116 kg

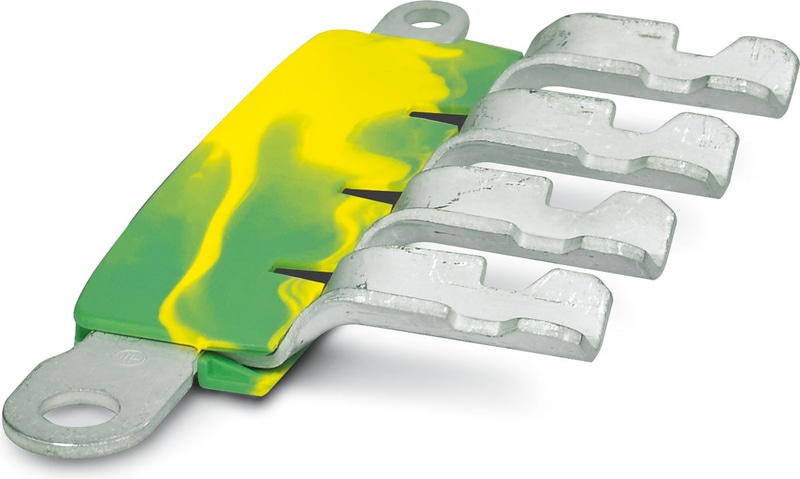

EBK 4-25/PT - Insertion bridge
Short-circuit bridge for grounding and short-circuiting, short-circuit currents of 800 A/15 s, 1300 A/5 s, 2700 A/10 ms, length: 74.5 mm, width: 140.5 mm, color: green-yellow
Documents
Technical Specifications
Product properties
| Number of Positions | 4 |
| Pitch | 25 mm |
Dimensions
| Width | 140.5 mm |
| Height | 74.5 mm |
| Depth | 15.5 mm |
| Length | 74.5 mm |
| Pitch | 25 mm |
Material specifications
| Color | green-yellow |
| Material | Metal |
| Flammability rating according to UL 94 | V0 |
| Coating | tin-plated |
| Insulating material | PA |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting Type | Plug-in mounting |
Why Proax for Phoenix Contact 3260162?
Proax is an authorized distributor of Phoenix Contact 3260162 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
