Name: 3248035
Brand: Phoenix Contact
SKU: PHX3248035
Price: 3.0000 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

MUT 4

Weight

0.006 kg

Series MUT

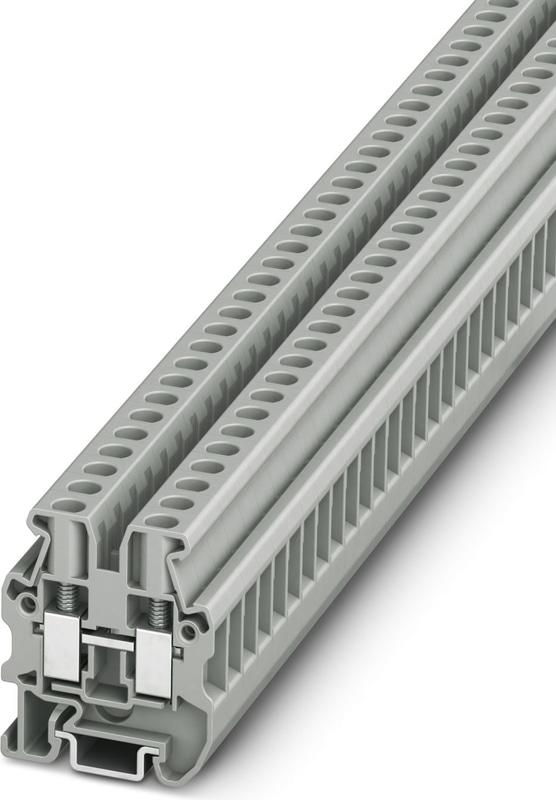

MUT 4 - Mini feed-through terminal block

Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 32 A, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 15, color: gray

Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Easy potential distribution thanks to standardized plug-in bridges

Product properties

Number of Positions	1
Number of Connections	2
Number of rows	1
Potentials	1

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	1.02 W

Connection data

Number of connections per level	2
Nominal cross section	4 mm²
Rated cross section AWG	10
Screw thread	M3
Tightening torque	0.6 ... 0.8 Nm
Stripping length	9 mm
Internal cylindrical gage	A3
Internal cylindrical gage	B3
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.2 mm² ... 6 mm²
Cross section AWG	24 ... 10 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 6 mm²
Conductor cross section, flexible [AWG]	24 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 4 mm²
2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 2.5 mm²
Nominal Current	32 A (with 4 mm² conductor cross section)
Maximum Load Current	38 A (with 6 mm² conductor cross section)
Nominal Voltage	500 V
Nominal cross section	4 mm²

Rated data (ATEX/IECEx)

Identification	 II 2 GD Ex eb IIC Gb
Operating temperature range	-60 °C ... 110 °C
Ex-certified accessories	3248033 D-MUT 2,5/4
Ex-certified accessories	1205053 SZS 0,6X3,5
Ex-certified accessories	3022263 CLIPFIX 15
List of bridges	Plug-in bridge / FBS 2-6 / 3030336
List of bridges	Plug-in bridge / FBS 3-6 / 3030242
List of bridges	Plug-in bridge / FBS 4-6 / 3030255
List of bridges	Plug-in bridge / FBS 5-6 / 3030349
List of bridges	Plug-in bridge / FBS 10-6 / 3030271
List of bridges	Plug-in bridge / FBS 20-6 / 3030365
Bridge data	24.5 A / 4 mm²
Ex temperature increase	40 K (27.88 A / 4 mm²)
Rated voltage	352 V
for bridging with bridge	352 V
- At bridging between non-adjacent terminal blocks	220 V
- At bridging between non-adjacent terminal blocks via PE terminal block	220 V
- At cut-to-length bridging with cover	220 V
Rated Insulation Voltage	320 V
Output	(Permanent)

Ex level General

Rated current	27.5 A
Maximum Load Current	32.5 A
Contact resistance	0.25 mΩ

Ex connection data General

Torque range	0.6 Nm ... 0.8 Nm
Nominal cross section	4 mm²
Rated cross section AWG	12
Connection capacity rigid	0.2 mm² ... 6 mm²
Connection capacity AWG	24 ... 10
Connection capacity flexible	0.2 mm² ... 4 mm²
Connection capacity AWG	24 ... 12
2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG rigid	24 ... 16
2 conductors with same cross section, stranded	0.2 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG flexible	24 ... 16

Dimensions

Width	6.2 mm
End cover width	2.2 mm
Height	29.9 mm
Depth on NS 15	34 mm

Material specifications

Color	gray
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test

Test voltage setpoint	7.3 kV
Result	Test passed

Temperature-rise test

Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 4 mm²	0.48 kA
Short-time withstand current 6 mm²	0.72 kA
Result	Test passed

Power-frequency withstand voltage

Test voltage setpoint	1.89 kV
Result	Test passed

Mechanical data

Open side panel

Yes

Mechanical strength

Result

Test passed

Attachment on the carrier

DIN rail/fixing support	NS 15
Result	Test passed

Test for conductor damage and slackening

Rotation speed	9 rpm
Revolutions	135
Conductor cross section/weight	0.2 mm² / 0.2 kg
Conductor cross section/weight	4 mm² / 0.9 kg
Conductor cross section/weight	6 mm² / 1.4 kg
Result	Test passed

Needle-flame test

Time of exposure	30 s
Result	Test passed

Oscillation/broadband noise

Specification	DIN EN 50155 (VDE 0115-200):2008-03
Spectrum	Service life test category 1, class B, body mounted
Frequency	f1 = 5 Hz to f2 = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed

Shocks

Specification	DIN EN 50155 (VDE 0115-200):2008-03
Pulse shape	Semi-sinusoidal
Acceleration	30g
Shock duration	18 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed

Ambient conditions

Ambient Temperature (Operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and Regulations

Connection in acc. with standard

IEC 60947-7-1

Mounting

Mounting Type

NS 15

3248033
D-MUT 2,5/4 - End cover, depth: 28.3 mm, width: 2.2 mm, height: 29.9 mm, color: gray
1205053
Screwdriver - SZS 0,6X3,5
3030336
FBS 2-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 2, color: red
3030242
FBS 3-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 3, color: red
3030255
Plug-in bridge, pitch: 6.2 mm, number of positions: 4, color: red
3030349
FBS 5-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 5, color: red
1008238
FBS 6-6 - Plug-in bridge, One side not fully isolated, pitch: 6.2 mm, number of positions: 6, color: red
3030271
FBS 10-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 10, color: red
3030365
Plug-in bridge, pitch: 6.2 mm, number of positions: 20, color: red
3032224
FBS 50-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 50, color: red
3033715
FBSR 2-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 2, color: red
3001594
FBSR 3-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 3, color: red
3001595
FBSR 4-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 4, color: red
3001596
FBSR 5-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 5, color: red
3033716
FBSR 10-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 10, color: red
3033812
Short-circuit connector - FBSRH 2-6
3036932
Plug-in bridge, pitch: 6.2 mm, number of positions: 2, color: blue
3036945
FBS 3-6 BU - Plug-in bridge, pitch: 6.2 mm, number of positions: 3, color: blue
3036958
FBS 4-6 BU - Plug-in bridge, pitch: 6.2 mm, number of positions: 4, color: blue
3036961
FBS 5-6 BU - Plug-in bridge, pitch: 6.2 mm, number of positions: 5, color: blue
3032198
FBS 10-6 BU - Plug-in bridge, pitch: 6.2 mm, number of positions: 10, color: blue
3032208
FBS 20-6 BU - Plug-in bridge, pitch: 6.2 mm, number of positions: 20, color: blue
3032211
FBS 50-6 BU - Plug-in bridge, pitch: 6.2 mm, number of positions: 50, color: blue
1401695
NS 15 UNPERF 2000MM VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1401682
NS 15 PERF 2000MM VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1401763
NS 15 AL PERF 2000MM VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1204096
NS 15 WH PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
3022263
CLIPFIX 15 - Snap-on end bracket, to be snapped onto NS 15 DIN rail
0808710
Zack Marker strip, flat - ZBF 6:UNBEDRUCKT
0818140
Marker for terminal blocks - UC-TMF 6
0828746
Marker for terminal blocks - UCT-TMF 6
0808749
0808749 -
0808765
0808765 -
0810834
0810834 -
0810876
0810876 -
0201744
Test plugs - MPS-MT
0201663
MPS-IH WH - Insulating sleeve, color: white
0201676
MPS-IH RD - Insulating sleeve, color: red
0201689
MPS-IH BU - Insulating sleeve, color: blue
0201692
MPS-IH YE - Insulating sleeve, color: yellow
0201702
MPS-IH GN - Insulating sleeve, color: green
0201728
MPS-IH GY - Insulating sleeve, color: gray
0201731
MPS-IH BK - Insulating sleeve, color: black
3030996
Test plugs - PS-6
3038736
Test plugs - PS-6/2,3MM RD
3035975
4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
3035974
Test adapter - PAI-4-FIX-5/6 OG
3035977
Test adapter - PAI-4-FIX-5/6 YE
3035976
Test adapter - PAI-4-FIX-5/6 RD
3035978
Test adapter - PAI-4-FIX-5/6 GN
3035980
Test adapter - PAI-4-FIX-5/6 BK
3035982
Test adapter - PAI-4-FIX-5/6 GY
3035979
Test adapter - PAI-4-FIX-5/6 VT
3035981
Test adapter - PAI-4-FIX-5/6 BN
3035983
Test adapter - PAI-4-FIX-5/6 WH
