Official DistributorSKU
MPN
PLD M 280 W-40 284
Weight
1.5 kg
Series PLD-M

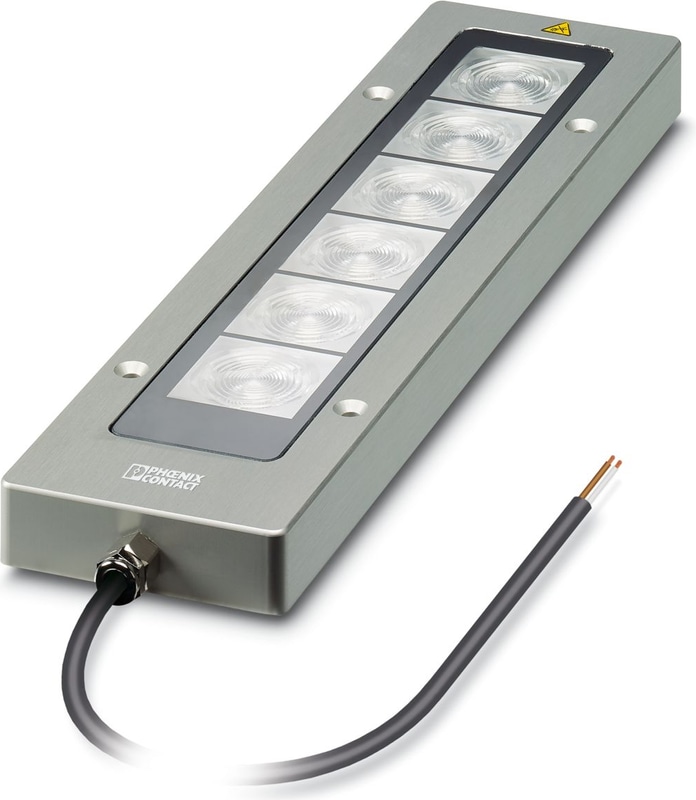

PLD M 280 W-40 284 - LED machine light
LED machine light, 24 V DC, emission angle (vertical/Horizontal): 40 °, length: 284 mm, degree of protection: IP67/IPX9, resistant to coolants and lubricants
- Space saving, thanks to the low height
- Ready to connect by means of punched-on 3 m supply line
- Focused illumination, thanks to 40° emission angle
- IP67 protection and resistance to cooling agents and lubricants enables use in machine tools
- IP69 protection enables use even under the most demanding requirements in terms of the degree of protection
- Safety glass enables use even in environments with potential mechanical strain
- ETL approval permits use on the North American market
- Particularly economical thanks to energy-efficient LED technology and an LED service life of at least 50 000 h
Technical Specifications
Product properties
| Application | Machine |
| Application | Machine tool |
| Mounting Position | any |
| Special Properties | resistant to coolants and lubricants |
Supply: Module electronics
| Connection Method | open cable end |
| Cable Length | approx. 3 m |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 22 V DC ... 26 V DC |
| Current consumption | typ. 0.54 A (at 24 V DC) |
| Power consumption | approx. 13 W (at 24 V DC) |
| Protective circuit | Surge protection; Suppressor diode, 40 V DC |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
Light properties
| Source of light type | LED |
| Number of LEDs | 6 |
| Service life, lighting appliance | 50,000 h (L70) |
| Color temperature | 6500 K ±10 % |
| Color rendering index | 65 |
| Luminous flux | approx. 460 lm (Net luminous flux) |
| Luminous efficacy | approx. 35 lm/W |
| Illumination | max. 869 lx (Distance of 1 m) |
| Illumination | min. 49 lx (Distance of 1 m over 1 m² area) |
| Average illumination | 347 lx (Distance of 1 m over 1 m² area) |
| Emission angle | 40 ° |
| Ordinance | Delegated Regulation (EU) 2019/2015 |
| Energy efficiency class | G (1 light source) |
| Note | This product contains an energy efficiency class G light source. |
Dimensions
| Width | 74 mm |
| Height | 20 mm |
| Length | 284 mm |
Material specifications
| Color | aluminum color |
| Material () | Anodized aluminum (Light housing) |
| Material () | Single-pane safety glass (ESG, thermally toughened float glass) (Pane) |
Ambient conditions
| Ambient Temperature (Operation) | 0 °C ... 40 °C |
| Degree of Protection | IP67/IPX9 |
| Air pressure (operation) | 69 kPa ... 102 kPa |
| Air pressure (storage/transport) | 69 kPa ... 102 kPa |
| Ambient temperature (storage/transport) | -20 °C ... 50 °C |
| Permissible humidity (operation) | 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 95 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | Screw mounting |
| Mounting Position | any |
