Official DistributorSKU
MPN
PLD M 260 W-85/95 715/D40
Weight
1.4 kg
Series PLD-M

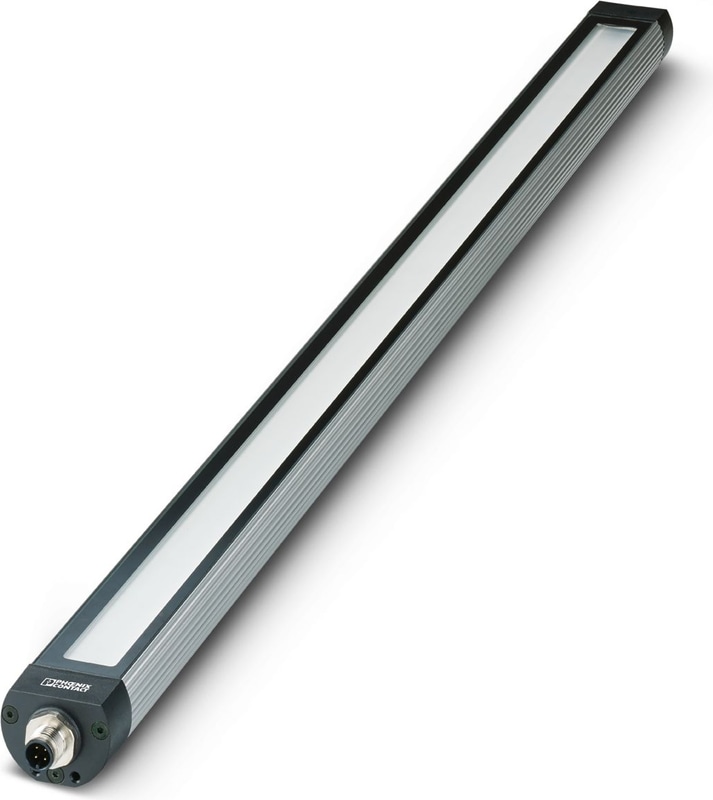

PLD M 260 W-85/95 715/D40 - LED machine light
LED machine light, 24 V DC, emission angle (vertical/Horizontal): 85 °/95 °, length: 715 mm, diameter: 40 mm, degree of protection: IP67, can be swiveled, resistant to coolants and lubricants
- Space saving, thanks to the small diameter
- Plug-in supply line enables free choice of the cable length as well as quick and easy installation
- Focused illumination, thanks to swivel action
- IP67 protection and resistance to cooling agents and lubricants enables use in machine tools
- Can be used at high temperatures and can be subjected to strong vibrations and shocks
- Safety glass enables use even in environments with potential mechanical strain
- ETL approval permits use on the North American market
- Particularly economical thanks to energy-efficient LED technology and an LED service life of at least 60,000 h
Technical Specifications
Notes
| Order information: | The PLD M-ME MC/D40 mounting holder (Item No. 2702491) or the PLD M-ME MB/D40 mounting bracket (Item No. 2702527) is required in order to mount the light. |
Product properties
| Application | Machine tool |
| Mounting Position | any |
| Special Properties | can be swiveled with mounting accessories |
| Special Properties | resistant to coolants and lubricants |
Supply: Module electronics
| Connection Method | M12 connector (A-coded) |
| Number of Positions | 4 |
| Permissible conductor cross section | min. 0.34 mm² |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 20 V DC ... 28 V DC |
| Current consumption | typ. 0.9 A (at 24 V DC) |
| Power consumption | approx. 21.5 W (at 24 V DC) |
| Protective circuit | Surge protection; Varistor and suppressor diode, 36 V DC |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
Connection data
| Connection Method | M12 connector (A-coded) |
Light properties
| Source of light type | LED |
| Number of LEDs | 57 |
| Service life, lighting appliance | 60000 h (L70) |
| Color temperature | 5000 K |
| Color rendering index | 80 |
| Luminous flux | approx. 2280 lm (Net luminous flux) |
| Luminous efficacy | approx. 106 lm/W |
| Illumination | max. 957 lx (Distance of 1 m) |
| Illumination | min. 445 lx (Distance of 1 m over 1 m² area) |
| Average illumination | 718 lx (Distance of 1 m over 1 m² area) |
| Emission angle | 85 ° (C0-C180) |
| Emission angle | 95 ° (C90-C270) |
| Ordinance | Delegated Regulation (EU) 2019/2015 |
| Energy efficiency class | C (3 light sources) |
| Energy efficiency class | E (1 light source) |
| Note | This product contains energy efficiency class C light sources. |
| Note | This product contains an energy efficiency class E light source. |
Dimensions
| Width | 40 mm |
| Height | 30 mm |
| Length | 715 mm |
| Diameter | 40 mm |
| Note on dimensions | Length without M12 flush-type connector |
Material specifications
| Color | aluminum color |
| Material () | Anodized aluminum (Light housing) |
| Material () | Single-pane safety glass (ESG, thermally toughened float glass) (Pane) |
Ambient conditions
| Ambient Temperature (Operation) | 0 °C ... 50 °C |
| Degree of Protection | IP67 |
| Air pressure (operation) | 69 kPa ... 102 kPa |
| Air pressure (storage/transport) | 69 kPa ... 102 kPa |
| Ambient temperature (storage/transport) | -20 °C ... 75 °C |
| Permissible humidity (operation) | 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 95 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | Screw mounting |
| Assembly instructions | Mounting with mounting holders or mounting brackets, please observe the notes in the package slip. |
| Mounting Position | any |
Accessories
Sensor/actuator cable, 4-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straight M12, coding: A, cable length: 3 m
