Official DistributorSKU
MPN
PLD M 160 W-95/105 336
Weight
0.488 kg
This product is Not Cancellable/Not Returnable
Series PLD-M

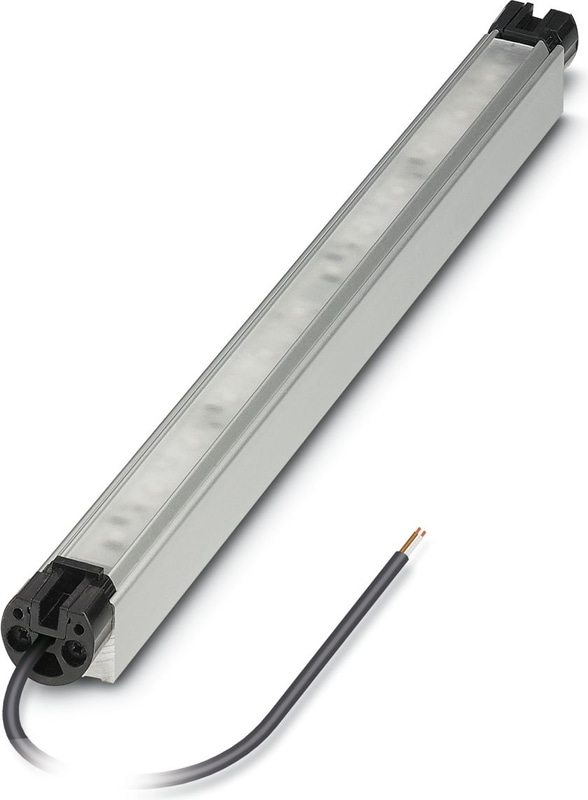

PLD M 160 W-95/105 336 - LED machine light
LED machine light, 24 V DC, emission angle (vertical/Horizontal): 95 °/105 °, length: 336 mm, degree of protection: IP67, can be swiveled, including mounting accessories
- Narrow design enables mounting even in confined spaces
- Ready to connect by means of punched-on 3 m supply line
- Focused illumination, thanks to swivel action
- IP67 protection enables use even in wet environments
- ETL approval permits use on the North American market
- Particularly economical thanks to energy-efficient LED technology and an LED service life of at least 50 000 h
Technical Specifications
Product properties
| Application | Machine |
| Mounting Position | any |
| Special Properties | can be swiveled Swiveling range ±35° |
| Special Properties | including mounting accessories |
Supply: Module electronics
| Connection Method | open cable end |
| Cable Length | approx. 3 m |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 22 V DC ... 26 V DC |
| Current consumption | typ. 0.3 A (at 24 V DC) |
| Power consumption | approx. 7 W (at 24 V DC) |
| Protective circuit | Surge protection; Suppressor diode, 28 V DC |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
Light properties
| Source of light type | LED |
| Number of LEDs | 12 |
| Service life, lighting appliance | 50,000 h (L70) |
| Color temperature | 6600 K ±10 % |
| Color rendering index | 75 |
| Luminous flux | approx. 300 lm (Net luminous flux) |
| Luminous efficacy | approx. 43 lm/W |
| Illumination | max. 391 lx (50 cm distance) |
| Illumination | min. 43 lx (Distance of 50 cm over 1 m2 area) |
| Average illumination | 169 lx (Distance of 50 cm over 1 m2 area) |
| Emission angle | 95 ° (C0-C180) |
| Emission angle | 105 ° (C90-C270) |
| Ordinance | Delegated Regulation (EU) 2019/2015 |
| Energy efficiency class | G (2 light sources) |
| Note | This product contains energy efficiency class G light sources. |
Dimensions
| Width | 22.5 mm |
| Height | 23 mm |
| Length | 336 mm |
Material specifications
| Color | aluminum color |
| Material () | Anodized aluminum (Light housing) |
| Material () | Satined acrylic (Light cover) |
Ambient conditions
| Ambient Temperature (Operation) | 0 °C ... 40 °C |
| Degree of Protection | IP67 |
| Air pressure (operation) | 69 kPa ... 102 kPa |
| Air pressure (storage/transport) | 69 kPa ... 102 kPa |
| Ambient temperature (storage/transport) | -10 °C ... 50 °C |
| Permissible humidity (operation) | 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 95 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | Screw mounting |
| Mounting Position | any |
