Official DistributorSKU
MPN
PLD M 160 W-95/105 616
Weight
0.822 kg
This product is Not Cancellable/Not Returnable
Series PLD-M

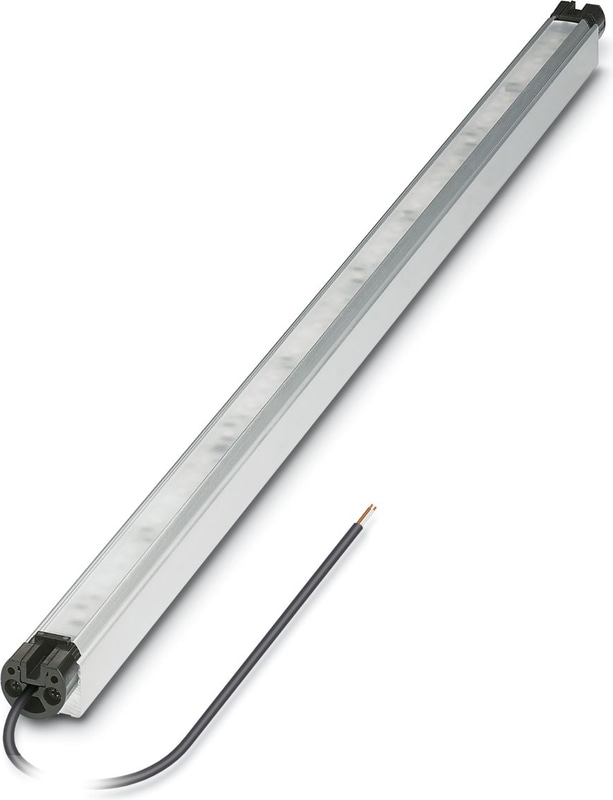

PLD M 160 W-95/105 616 - LED machine light
LED machine light, 24 V DC, emission angle (vertical/Horizontal): 95 °/105 °, length: 616 mm, degree of protection: IP67, can be swiveled, including mounting accessories
- Narrow design enables mounting even in confined spaces
- Ready to connect by means of punched-on 3 m supply line
- Focused illumination, thanks to swivel action
- IP67 protection enables use even in wet environments
- ETL approval permits use on the North American market
- Particularly economical thanks to energy-efficient LED technology and an LED service life of at least 50 000 h
Technical Specifications
Product properties
| Application | Machine |
| Mounting Position | any |
| Special Properties | can be swiveled Swiveling range ±35° |
| Special Properties | including mounting accessories |
Supply: Module electronics
| Connection Method | open cable end |
| Cable Length | approx. 3 m |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 22 V DC ... 26 V DC |
| Current consumption | typ. 0.58 A (at 24 V DC) |
| Power consumption | approx. 14 W (at 24 V DC) |
| Protective circuit | Surge protection; Suppressor diode, 28 V DC |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
Light properties
| Source of light type | LED |
| Number of LEDs | 24 |
| Service life, lighting appliance | 50,000 h (L70) |
| Color temperature | 6600 K ±10 % |
| Color rendering index | 75 |
| Luminous flux | approx. 600 lm (Net luminous flux) |
| Luminous efficacy | approx. 43 lm/W |
| Illumination | max. 691 lx (50 cm distance) |
| Illumination | min. 100 lx (Distance of 50 cm over 1 m2 area) |
| Average illumination | 336 lx (Distance of 50 cm over 1 m2 area) |
| Emission angle | 95 ° (C0-C180) |
| Emission angle | 105 ° (C90-C270) |
| Ordinance | Delegated Regulation (EU) 2019/2015 |
| Energy efficiency class | G (4 light sources) |
| Note | This product contains energy efficiency class G light sources. |
Dimensions
| Width | 22.5 mm |
| Height | 23 mm |
| Length | 616 mm |
Material specifications
| Color | aluminum color |
| Material () | Anodized aluminum (Light housing) |
| Material () | Satined acrylic (Light cover) |
Ambient conditions
| Ambient Temperature (Operation) | 0 °C ... 40 °C |
| Degree of Protection | IP67 |
| Air pressure (operation) | 69 kPa ... 102 kPa |
| Air pressure (storage/transport) | 69 kPa ... 102 kPa |
| Ambient temperature (storage/transport) | -10 °C ... 50 °C |
| Permissible humidity (operation) | 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 95 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | Screw mounting |
| Mounting Position | any |
Why Proax for Phoenix Contact 2702477?
Proax is an authorized distributor of Phoenix Contact 2702477 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
