Official DistributorSKU
MPN
PLD M 360 W-50 200
Weight
0.736 kg
Series PLD-M

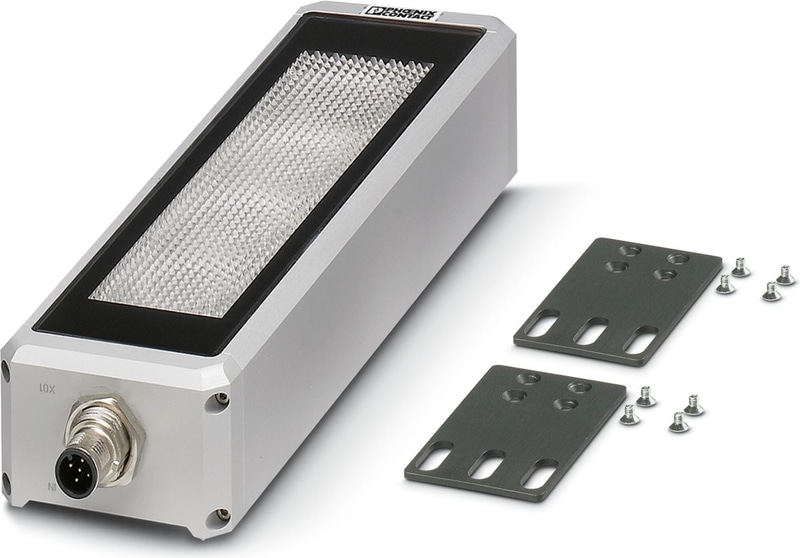

PLD M 360 W-50 200 - LED machine light
LED machine light
- Protection against polarity reversal, excessively high supply voltage, and overtemperature
- Two PWM inputs for dimming and flash mode
- Error indication via digital output
- Laminated safety glass enables use even in environments with potential mechanical strain
- Particularly economical thanks to energy-efficient LED technology and an LED service life of at least 50 000 h
- Can be switched in series via sensor/actuator cables with SPEEDCON M12 rapid interlock system
- Homogenous and glare-free lighting thanks to innovative optics
- Focused illumination, thanks to 50° emission angle
Technical Specifications
| Width | 60 mm |
| Height | 35 mm |
| Length | 200 mm |
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Degree of Protection | IP67 |
| Connection Method | M12 connector, (A-coded) |
| Number of Positions | 5 |
| Supply Voltage | 24 V DC |
| Light Colour | Neutral white |
Why Proax for Phoenix Contact 2701689?
Proax is an authorized distributor of Phoenix Contact 2701689 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
