Official DistributorSKU
MPN
PLD M 360 W-50 695
Weight
2.35 kg
Series PLD-M

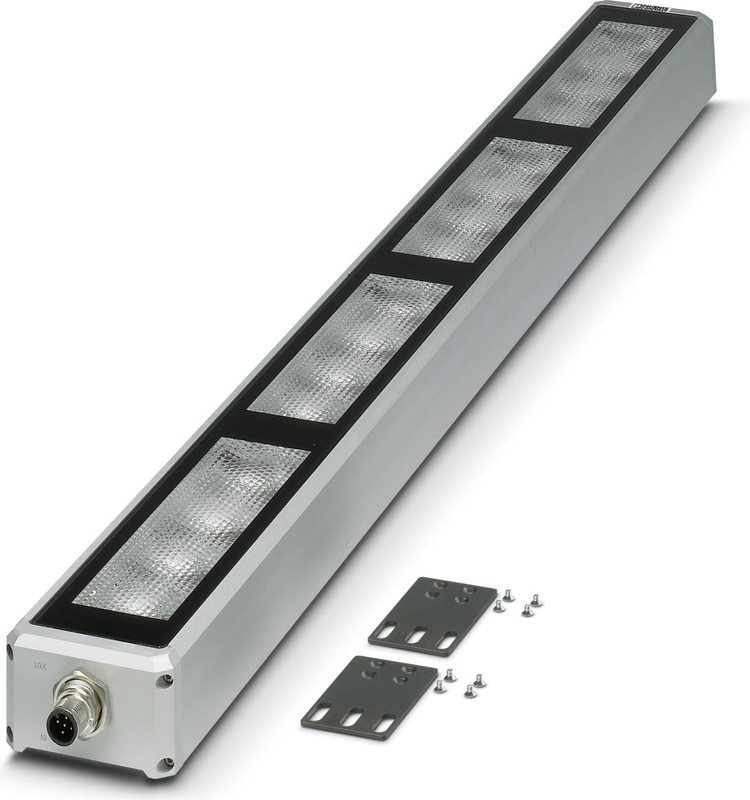

PLD M 360 W-50 695 - LED machine light
LED machine light, 24 V DC, Neutral white, emission angle (vertical/Horizontal): 50 °, length: 695 mm, M12 connector, degree of protection: IP67, can be switched in series, Dimming, Flash mode, resistant to coolants and lubricants, including mounting accessories
- Protection against polarity reversal, excessively high supply voltage, and overtemperature
- Error indication via digital output
- Two PWM inputs for dimming and flash mode
- Laminated safety glass enables use even in environments with potential mechanical strain
- Particularly economical thanks to energy-efficient LED technology and an LED service life of at least 50 000 h
- Can be switched in series via sensor/actuator cables with SPEEDCON M12 rapid interlock system
- Focused illumination, thanks to 50° emission angle
- Homogenous and glare-free lighting thanks to innovative optics
Technical Specifications
Product properties
| Application | Machine |
| Application | Machine tool |
| Mounting Position | any |
| Special Properties | can be switched in series |
| Special Properties | Dimming |
| Special Properties | Flash mode |
| Special Properties | resistant to coolants and lubricants |
| Special Properties | including mounting accessories |
| Light color | Neutral white |
Electrical properties
| Maximum power dissipation for nominal condition | 22 W |
Supply: Module electronics
| Connection technology | M12 connector |
| Connection Method | M12 connector (A-coded) |
| Number of Positions | 5 |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 28.8 V DC |
| Current consumption | typ. 0.92 A (at 24 V DC) |
| Power consumption | typ. 22 W |
Connection data
| Connection Method | M12 connector (A-coded) |
Light properties
| Source of light type | LED |
| Number of LEDs | 16 |
| Service life, lighting appliance | 65,000 h |
| Light color | Neutral white |
| Color temperature | 5000 K ±5 % |
| Color rendering index | Ra ≥ 80 |
| Luminous flux | 1410 lm |
| Illumination | max. 4830 lx (50 cm distance) |
| Illumination | max. 1755 lx (Distance of 1 m) |
| Luminous intensity | max. 2110 Cd |
| Average illumination | 1160 lx (1 m x 1 m measuring field with 50 cm distance) |
| Can be dimmed | Via PWM signal |
| Emission angle | 50 ° |
Dimensions
| Width | 60 mm |
| Height | 35 mm |
| Length | 695 mm |
| Note on dimensions | Length without M12 flush-type connector |
Material specifications
| Color | silver |
| Material () | Anodized aluminum (Light housing) |
| Material () | Satined acrylic (Light cover) |
| Material | Anodized aluminum |
| Material | Laminated safety glass (LSG) |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Degree of Protection | IP67 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 95 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | Screw mounting |
| Mounting Position | any |
