Official DistributorSKU
MPN
1033201
Weight
0.109 kg
Series MINI-MCR

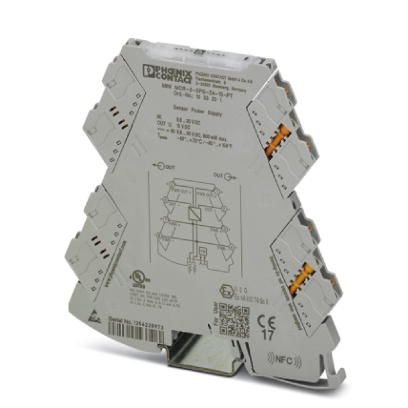

Constant voltage source - MINI MCR-2-SPS-24-15-PT
Constant voltage source with pluggable connection technology for the generation of a highly precise constant voltage of 15 V and for the supply of sensors without internal power supply. Push-in connection technology.
Technical Specifications
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
Dimensions
| Width | 6.2 mm |
| Height | 109.81 mm |
| Depth | 119.2 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Degree of Protection | IP20 (not assessed by UL) |
| Noise immunity | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
Input data
| Designation | Voltage input |
| Voltage input signal | 9.6 V DC ... 30 V DC |
| Transmitter supply voltage | 15 V |
Output data
| Output name | Voltage output |
| Max. output voltage | 15 V DC |
| Output voltage with wire break | 15 V |
| Output Current | ≤ 30 mA |
| Short-circuit current | > 35 mA |
| Ripple | < 20 mVPP (at 600 Ω) |
Power supply
| Supply Voltage Range | 9.6 V DC ... 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Item No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715)) |
| Typical current consumption | < 38.2 mA (24 V) |
| Typical current consumption | < 79.8 mA (12 V) |
| Power consumption | < 900 mW (9.6 V DC) |
Connection data
| Connection Method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² (with ferrule) |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² (without ferrule) |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 (flexible) |
General
| Maximum transmission error | ≤ 0.4 % (of final value) |
| Maximum temperature coefficient | < 0.01 %/K |
| Electrical isolation | Reinforced insulation in accordance with IEC 61010-1 |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Rated Insulation Voltage | 300 V (effective) |
| Test voltage, input/output/supply | 3 kV (50 Hz, 1 min.) |
| Electromagnetic compatibility | Conformance with EMC directive |
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
| Housing Material | PBT |
| Mounting Position | any |
| Assembly instructions | The T connector can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715. |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC directive |
| Noise emission | EN 61000-6-4 |
| Designation | GB Standard |
| Standards/regulations | GB 3836.1 |
| Standards/regulations | GB 3836.8 |
| Electrical isolation | Reinforced insulation in accordance with IEC 61010-1 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
2940252 - Setpoint value potentiometer, to set setpoints individually, resistance value 4,7 kΩ
2942124 - Setpoint value potentiometer, to set setpoints individually, resistance value 10 kΩ
2695439 - DIN rail connector (TBUS), 5-pos., for bridging the supply voltage, can be snapped onto NS 35/... DIN rail in accordance with EN 60715
2866653 - Please use the following item in new systems: 2904614Primary-switched MINI POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/1.5 A, for potentially explosive areas
2866983 - Please use the following item in new systems: 2904614Primary-switched MINI POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/1.5 A
2869728 - DIN rail connector for DIN rail mounting. Universal for TBUS housing. Gold-plated contacts, 5-pos.
2902066 - Power terminal with plug-in connection technology for delivering the supply voltage to the DIN rail connector. Monitoring of the supply voltages in combination with the fault monitoring module. Screw connection technology
2902067 - Power terminal with plug-in connection technology for delivering the supply voltage to the DIN rail connector. Monitoring of the supply voltages in combination with the fault monitoring module. Push-in connection technology
2904504 - Fault monitoring module with plug-in connection technology for evaluating and reporting group errors from the FM system and for monitoring the supply voltages. Error message via N/C contact. Screw connection technology, standard configuration
2904508 - Fault monitoring module with plug-in connection technology for evaluating and reporting group errors from the FM system and for monitoring the supply voltages. Error message via N/C contact. Push-in connection technology, standard configuration
