Official DistributorSKU
MPN
IB IL 120 DI 1
Weight
0.061 kg
Series IB-IL

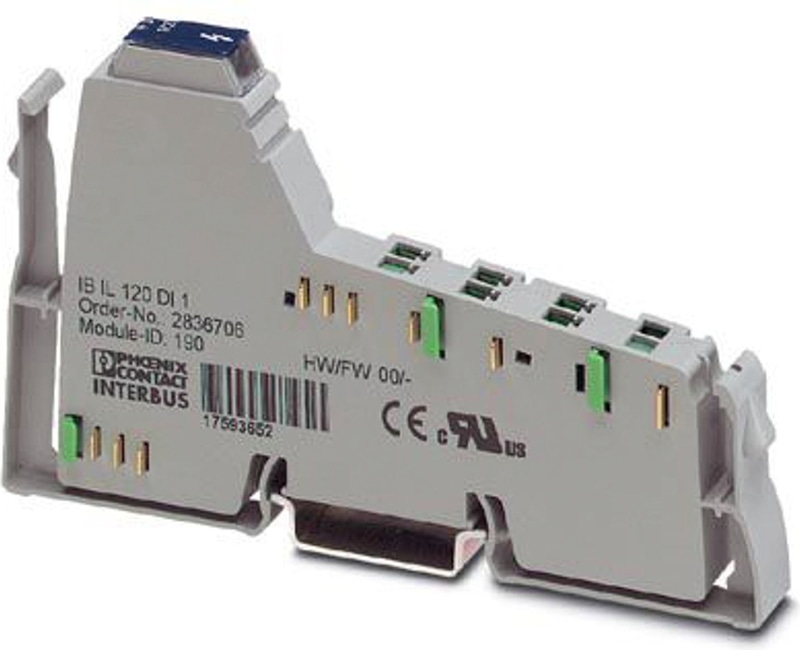

IB IL 120 DI 1 - Inline terminal
Inline, Digital input terminal, Digital inputs: 1, connection technology: 2-, 3-conductor, degree of protection: IP20
Technical Specifications
Product properties
| Type | modular |
| No. of channels | 1 |
Module
| ID code (dec.) | 190 |
| ID code (hex) | BE |
| Length code (hex) | C2 |
| Length code (dec) | 194 |
| Process data channel | 2 bit |
| Input address area | 2 bit |
| Output address area | 0 Byte |
| Register length | 2 bit |
| Required parameter data | 1 Byte |
Potentials: Communications power (UL)
| Supply Voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 30 mA |
Potentials
| Supply Voltage | 120 V AC |
| Current draw | max. 0.25 A |
Potentials: I/O supply
| Supply Voltage | 120 V AC (via voltage jumper) |
| Current draw | 0.25 A |
Supply: Module electronics
| Supply Voltage | 120 V AC (via voltage jumper) |
| Supply Voltage Range | 108 V AC ... 135 V AC |
Electrical isolation/isolation of the voltage ranges
| Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min. |
| Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min. |
| Test voltage: 7.5 V supply (bus logics) / I/O area | 2500 V AC, 50 Hz, 1 min. |
| Test voltage: Routine test | 1200 V AC, 50 Hz, 1 min. |
Digital:
| Input name | Digital inputs |
| Description of the input | IEC 61131-2 type 1 |
| Number of Inputs | 1 |
| Connection Method | Spring-cage connection |
| Connection technology | 2-, 3-conductor |
| Input Voltage | 120 V AC |
| Input voltage range "0" signal | 0 V AC ... 40 V AC |
| Input voltage range "1" signal | 77 V AC ... 135 V AC |
Inline connector
| Connection Method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
Inline local bus
| Connection Method | Inline data jumper |
Dimensions
| Width | 12.2 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Degree of Protection | IP20 |
| Air pressure (operation) | 80 kPa ... 160 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
| Permissible humidity (storage/transport) | 75 % ... 85 % (slight temporary condensation may sometimes appear on the housing) |
Standards and Regulations
| Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | DIN rail mounting |
Why Proax for Phoenix Contact 2836706?
Proax is an authorized distributor of Phoenix Contact 2836706 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
