IB IL 120 PWR IN
Weight
0.053 kg
Series IB-IL

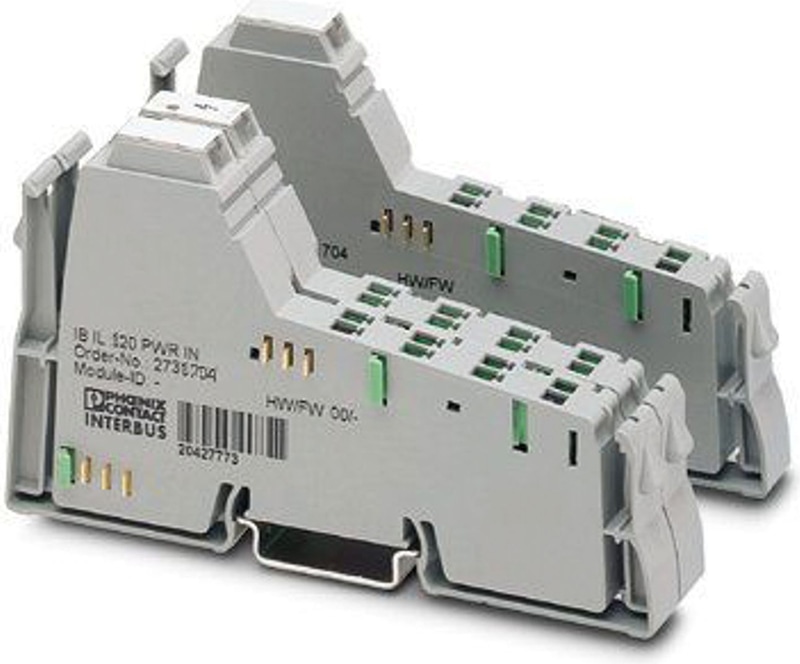

IB IL 120 PWR IN - Inline function terminal
Inline power terminal block, without accessories, without fuse, 120 V AC
Technical Specifications
Product properties
| Type | modular |
| Type | Inline |
Insulation characteristics
| Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
Module
| ID code (dec.) | none |
| ID code (hex) | none |
| Register length | 0 bit |
Electrical properties
| Test section | Output / Phase 500 V AC 50 Hz 1 min. |
| Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min. |
| Test section | 5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min. |
| Test section | 7.5 V supply (bus logics) / I/O area 120 V AC 2500 V AC 50 Hz 1 min. |
| Test section | Routine test 1200 V AC 50 Hz 1 min. |
| Test section | I/O area 120 V AC/PE 500 V AC 50 Hz 1 min. |
Supply
| I/O voltage | 120 V AC |
| I/O voltage range | 108 V AC ... 135 V AC (including all tolerances, including ripple) |
| Residual ripple | ± 12 V |
| Max. current consumption | 8 A |
Inline connector
| Connection Method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
Supply voltage
| Connection Method | 8-pos. Inline power connector |
Inline local bus
| Connection Method | Inline data jumper |
Dimensions
| Width | 36.6 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
Material specifications
| Color | gray |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 75 % ... 85 % |
| Permissible humidity (storage/transport) | 75 % ... 85 % |
Mounting
| Mounting Type | DIN rail mounting |
