FL SWITCH SF 8TX
Weight
0.43 kg
This product is Not Cancellable/Not Returnable
Series FL-SWITCH-SF

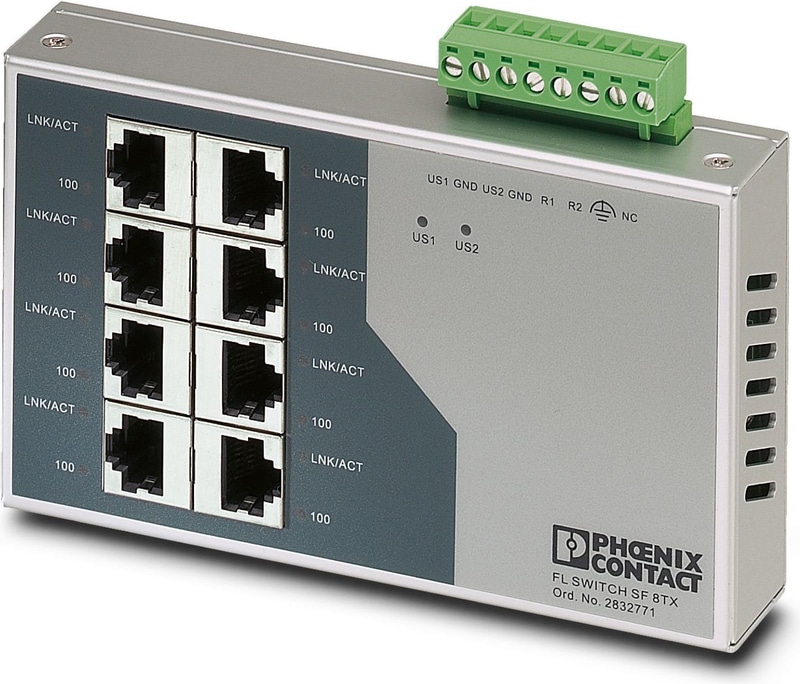

FL SWITCH SF 8TX - Industrial Ethernet Switch
Ethernet Switch, 8 TP RJ45 ports, automatic detection of data transmission speed of 10 or 100 Mbps (RJ45), autocrossing function
- RJ45 ports support a transmission speed of 10/100 Mbps
- Fiber-optic ports support 100 Mbps
- Local diagnostic indicators with LEDs
- Security options with cable locking
- Relay contact for alarm processing of voltage states
- Auto negotiation and autocrossing detection simplifies installation and setup
Technical Specifications
Dimensions
| Width | 135 mm |
| Height | 94.3 mm |
| Depth | 30 mm |
Material specifications
| Housing Material | Aluminum |
Mounting
| Mounting Type | DIN rail mounting |
Ethernet (RJ45)
| Connection Method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission Speed | 10/100 Mbps |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Data receive, link status |
| No. of channels | 8 (RJ45 ports) |
Potential-free signaling contact
| Connection Method | Plug-in/screw connection via COMBICON |
Product properties
| Product family | Unmanaged Switch SF |
| Type | Block design |
| MTTF | 45.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
Insulation characteristics
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Switch functions
| Basic Functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
| Signal contact control voltage | 24 V DC (typical) |
| Status and diagnostic indicators | LEDs: US1, US2 (redundant voltage supply), link and activity per port |
| Additional functions | Autonegotiation |
Security functions
| Basic Functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Electrical properties
| Power consumption | 4.8 W (nominal) |
| Local diagnostics | US1/2 Supply voltage Green LED |
| Local diagnostics | LNK/ACT Link status/data transmission Green LED |
| Local diagnostics | 100 Data transmission speed Yellow LED |
| Maximum power dissipation for nominal condition | 4.8 W |
| Test section | 500 V DC 1 min. |
| Transmission medium | Copper |
Supply
| Supply voltage (DC) | 24 V DC (redundant) |
| Supply Voltage Range | 18.5 V DC ... 30.2 V DC |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Residual ripple | 3.6 VPP (within the permitted voltage range) |
| Typical current consumption | 200 mA (at US = 24 V DC) |
| Typical current consumption | 95 mA (at US = 24 V DC: >VC 14) |
Function
| Signal contact control voltage | 24 V DC (typical) |
Connection data
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 7 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 55 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Vibration (Operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Air pressure (operation) | 86 kPa ... 108 kPa (up to 1500 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO2) 10 ±0.3 cm3/m3, hydrogen sulfide (H2S) 1 ±0.3 cm3/m3, at 25°C and 75% humidity and exposure of four days |
Standards and Regulations
| Free from substances that could impair the application of coating | In acc. with VW specification |
Conformity/Approvals
| UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D, T4 |
| UL, USA / Canada | UL 508 Listed |
EMC data
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B |
| Conformance with EMC directives | IEC 61000-4-3 (immunity to radiated interference) Criterion A |
| Conformance with EMC directives | IEC 61000-4-4 (burst) Criterion B |
| Conformance with EMC directives | IEC 61000-4-5 (surge) Criterion B |
| Conformance with EMC directives | IEC 61000-4-6 (immunity to conducted interference) Criterion A |
| Conformance with EMC directives | IEC 61000-4-8 (immunity to magnetic fields) Criterion A |
| Conformance with EMC directives | EN 55022 (emitted interference) Criterion A |
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Noise emission | EN 61000-6-4 |
Functionality
| Basic Functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Signaling
| Status display | LEDs: US1, US2 (redundant voltage supply), link and activity per port |
Accessories
MSTB 2,5/ 8-ST - PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: MSTB 2,5/..-ST, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard
Surge protection in accordance with Class EA (CAT6A), for Gigabit Ethernet (up to 10 Gbps), token ring, FDDI/CDDI, ISDN, and DS1. Suitable for Power over Ethernet (PoE++ / 4PPoE) “Mode A” and “Mode B”. RJ45 attachment plug with separate grounding cable and ground connection snap-on foot for NS 35 DIN rails.
NBC-R4AC/10G-R4AC/10G-94F/2,0 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 2.0 m- NBC-R4AC/10G-R4AC/10G-94F/3,0 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 3.0 m
FL SEC PAC 4TX - Layer1 security elements for 4 RJ45 network connections for use with patch boxes and panels
