FL SWITCH MM HS
Weight
1.529 kg

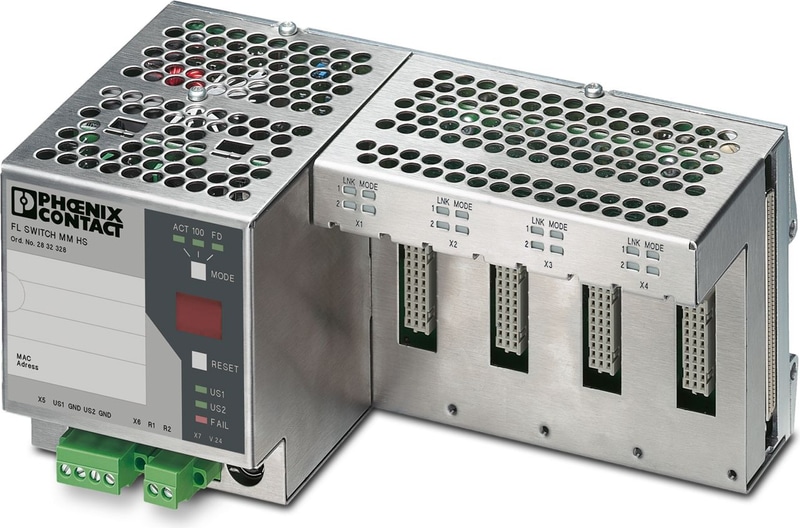

FL SWITCH MM HS - Industrial Ethernet Switch
Modular switch system, head station, can be expanded to 24 Ethernet ports
Technical Specifications
Dimensions
| Width | 214 mm |
| Height | 95 mm |
| Depth | 115 mm |
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Material specifications
| Housing Material | Zinc die-cast, surface bronzed and nickel-plated |
Mounting
| Mounting Type | DIN rail mounting |
Ethernet
| Connection Method | 8 ports via FL IF (interface) modules |
| Transmission Speed | 10/100 Mbps |
| Transmission physics | Copper |
| No. of channels | 8 (Can be extended to a maximum of 24 ports) |
Ethernet FO
| Connection Method | via interface module |
| Transmission Speed | 100 Mbps (full duplex) |
| Transmission physics | multi-mode fiberglass |
| Transmission length | up to 10000 m (depending on the fiber used) |
| Transmission length | 1300 nm |
| No. of channels | 8 (Can be extended to a maximum of 24 ports) |
Serial (RS-232)
| Connection Method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) |
Product properties
| Type | Stand-Alone |
Insulation characteristics
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Switch functions
| Basic Functions | Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent |
| PROFINET device function | PROFINET device |
| PROFINET specification | Version 1.1 |
| Redundancy | STP (Spanning Tree Protocol) |
| Redundancy | RSTP (Rapid Spanning Tree Protocol) |
| Redundancy | FRD (Fast Ring Detection) |
| Redundancy | Large Tree Support |
| Redundancy | MRP (Media Redundancy Protocol) |
| Status and diagnostic indicators | Per Ethernet 2 status LEDs: LINK and switch-over Status Activity, 100, full duplex, supply voltage US1 und US2 (redundant supply voltage) and FAIL, two-digit 7-segment display |
| Supported browsers | Internet Explorer 5.5 or higher |
Security functions
| Basic Functions | Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent |
Electrical properties
| Power consumption | typ. 8.4 W (up to 78 W, depends on the configuration (extensions/Interface modules)) |
| Local diagnostics | US1/2 Supply voltage US1, US2 Green LED |
| Local diagnostics | FAIL Div. LED red |
| Local diagnostics | LINK Link status Green LED |
| Local diagnostics | ACT/MODE Receiving/sending telegrams Green LED |
| Local diagnostics | 100/MODE Data transmission speed Green LED |
| Local diagnostics | FD/MODE Duplex mode Green LED |
| Maximum power dissipation for nominal condition | 8.4 W |
| Transmission medium | Copper |
| Transmission medium | FO |
Supply
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 18.5 V DC ... 30.2 V DC |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Residual ripple | 3.6 VPP (within the permitted voltage range) |
| Max. current consumption | 3.5 A |
| Typical current consumption | 350 mA (up to 3500 mA, depends on the configuration) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 55 °C (non-condensing) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (Operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Air pressure (operation) | 80 kPa ... 108 kPa (2000 m above mean sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Standards and Regulations
| Free from substances that could impair the application of coating | In acc. with VW specification |
EMC data
| Conformance with EMC directives | IEC 61000-4-2 (ESD) Criterion B |
| Conformance with EMC directives | IEC 61000-4-3 (immunity to radiated interference) Criterion A |
| Conformance with EMC directives | IEC 61000-4-4 (burst) Criterion A |
| Conformance with EMC directives | IEC 61000-4-5 (surge) Criterion B |
| Conformance with EMC directives | IEC 61000-4-6 (immunity to conducted interference) Criterion A |
| Conformance with EMC directives | EN 55022 (emitted interference) Class A |
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Noise emission | EN 61000-6-3/-4 |
Functionality
| Basic Functions | Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent |
System requirements
| Supported browsers | Internet Explorer 5.5 or higher |
Signaling
| Status display | Per Ethernet 2 status LEDs: LINK and switch-over Status Activity, 100, full duplex, supply voltage US1 und US2 (redundant supply voltage) and FAIL, two-digit 7-segment display |
