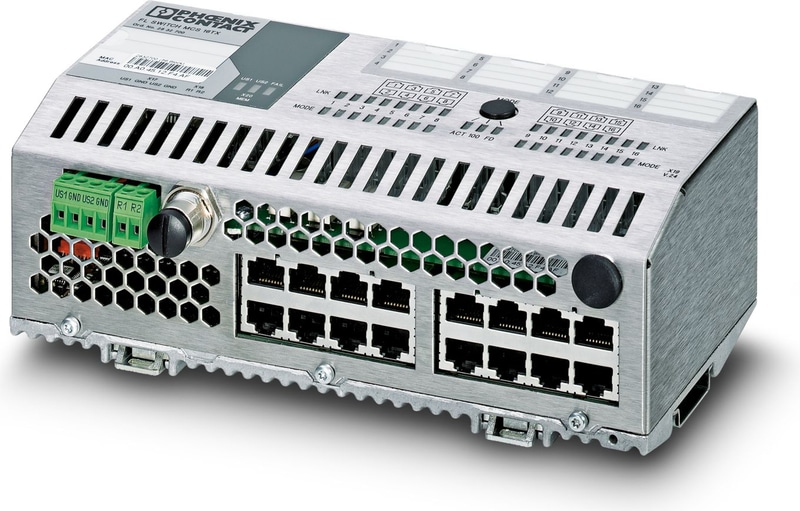

FL SWITCH MCS 16TX
Weight
1.434 kg
Series FL-SWITCH-MCS
FL SWITCH MCS 16TX - Industrial Ethernet Switch
Ethernet Managed Compact Switch with 16 10/100 Mbps RJ45 ports
- RSTP
- VLANs
- MRP (client and manager)
- SNMP
Technical Specifications
Dimensions
| Width | 214 mm |
| Height | 95 mm |
| Depth | 69 mm |
Material specifications
| Material base plate | Die-cast aluminum, corrosion-resistant |
| Housing Material | Stainless steel 1.4301 |
Mounting
| Mounting Type | DIN rail mounting |
Ethernet (RJ45)
| Connection Method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission Speed | 10/100 Mbps |
| Transmission physics | Copper |
| Transmission length | 100 m (per segment) |
| No. of channels | 16 (RJ45 ports) |
Serial (RS-232)
| Connection Method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) |
Product properties
| Type | Block design |
Insulation characteristics
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Switch functions
| Basic Functions | Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent |
| PROFINET device function | PROFINET device |
| PROFINET specification | Version 1.1 |
| Redundancy | STP (Spanning Tree Protocol) |
| Redundancy | RSTP (Rapid Spanning Tree Protocol) |
| Redundancy | FRD (Fast Ring Detection) |
| Redundancy | Large Tree Support |
| Redundancy | MRP (Media Redundancy Protocol) |
| Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
| Supported browsers | Internet Explorer 5.5 or higher |
Security functions
| Basic Functions | Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent |
Electrical properties
| Local diagnostics | US1/2 Supply voltage US1, US2 Green LED |
| Local diagnostics | FAIL Div. LED red |
| Local diagnostics | LINK Link status Green LED |
| Local diagnostics | ACT/MODE Receiving/sending telegrams Green LED |
| Local diagnostics | 100/MODE Data transmission speed Green LED |
| Local diagnostics | FD/MODE Duplex mode Green LED |
| Maximum power dissipation for nominal condition | 14.4 W |
| Transmission medium | Copper |
Supply
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 18.5 V DC ... 30.5 V DC |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Residual ripple | 3.6 VPP (within the permitted voltage range) |
| Typical current consumption | 600 mA (at US = 24 V DC) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 55 °C (non-condensing) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (Operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Air pressure (operation) | 80 kPa ... 108 kPa (2000 m above mean sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
EMC data
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Noise emission | EN 61000-6-3/-4 |
Functionality
| Basic Functions | Store and forward switch complies with IEEE 802.3 2 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), port security, PROFINET-IO-device, DHCP option 82 relay agent |
System requirements
| Supported browsers | Internet Explorer 5.5 or higher |
Signaling
| Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
