TT-UKK5-T-V-48DC-ST
Weight
0.008 kg
Series TT-UKK5

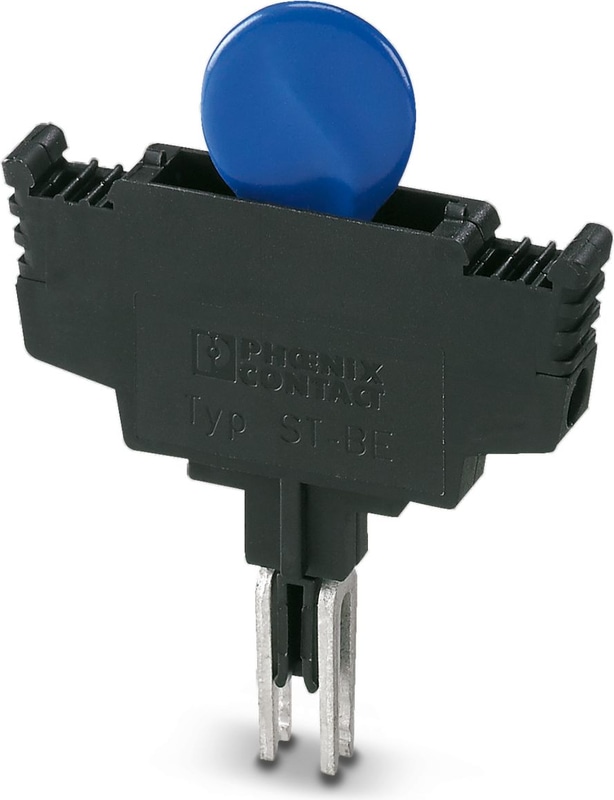

TT-UKK5-T-V-48DC-ST - Surge protection plug
Protective plug with varistor to plug onto base element TT-UKK5-T-BE, nominal voltage: 48 V DC
Technical Specifications
Product properties
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| VDE requirement class | C1 |
| VDE requirement class | C3 |
| Type | Single-level terminal block |
| Number of Positions | 1 |
| Surge protection fault message | none |
| Wire pairs per module | 1 |
Electrical properties
| Nominal voltage UN | 48 V DC |
Connection data
| Connection Method | Screw connection (in connection with the base element) |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 6.2 mm |
| Height | 41.5 mm |
| Depth | 52 mm |
Material specifications
| Flammability rating according to UL 94 | V-2 |
| Housing Material | PA |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line |
| Maximum continuous voltage UC | 65 V DC |
| Maximum continuous voltage UC | 50 V AC |
| Rated current | 26 A (40 °C) |
| Operating effective current IC at UC | ≤ 70 µA |
| Nominal discharge current In (8/20) µs (line-line) | 1 kA |
| Total discharge current Itotal (8/20) µs | 1 kA |
| Max. discharge current Imax (8/20) µs maximum (line-line) | 4.5 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) | 35 A |
| Residual voltage at In (conductor-conductor) | ≤ 200 V |
| Response time tA (line-line) | ≤ 25 ns |
| Capacity (core-core) | typ. 1.8 nF |
| Surge protection fault message | none |
| Impulse durability (line-line) | C2 - 2 kV / 1 kA |
| Impulse durability (line-line) | C3 - 25 A |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 60 °C |
Standards and Regulations
| VDE requirement class | C1 |
| VDE requirement class | C3 |
Air clearances and creepage distances
| Standards/regulations | VDE 0110-1 |
Standards Information technology specification
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | IEC 61643-21 |
Mounting
| Mounting Type | on base element |
