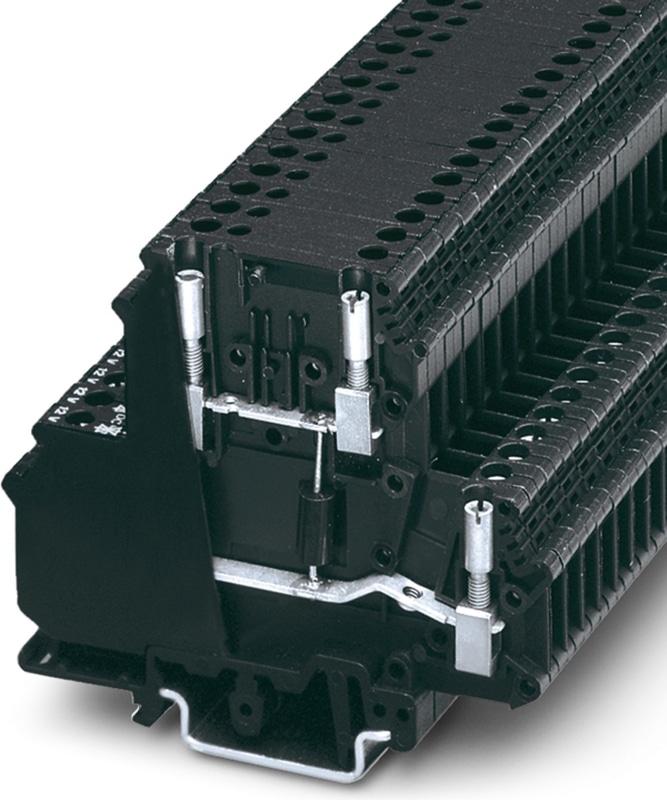

The figure shows version TT-UKK5-D-24 DC
Official DistributorSKU
MPN
TT-UKK5-D/ 48DC
Weight
0.025 kg
Series TT-UKK5
TT-UKK5-D/ 48DC - Surge protection device
Double-level modular terminal block with suppressor diode as surge protection between both levels, nominal voltage: 48 V DC, for mounting on NS 32 or NS 35/7.5, closed housing, terminal width: 6.2 mm, terminal height: 68 mm
Technical Specifications
Product properties
| IEC test classification | C3 |
| VDE requirement class | C3 |
| Type | Double-level terminal block |
| Surge protection fault message | none |
| Wire pairs per module | 1 |
Electrical properties
| Nominal voltage UN | 48 V DC |
Connection data
| Connection Method | Screw connection |
| Screw thread | M3 |
| Tightening torque, min | 0.5 Nm |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 4 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 4 mm² |
Dimensions
| Width | 6.2 mm |
| Height | 68 mm |
| Length | 80 mm |
Material specifications
| Flammability rating according to UL 94 | V2 |
| Housing Material | PA |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line |
| Operating effective current IC at UC | ≤ 5 A |
| Nominal discharge current In (8/20) µs (line-line) | 162 A |
| Nominal pulse current Ian (10/1000) µs (line-line) | 17.7 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 80 V |
| Capacity (core-core) | ≤ 0.85 nF (typical) |
| Surge protection fault message | none |
| Impulse durability (line-line) | C3 - 10 A |
Ambient conditions
| Degree of Protection | IP20 |
Standards and Regulations
| VDE requirement class | C3 |
Mounting
| Mounting Type | DIN rail: 35 mm |
