Phoenix Contact 2807230

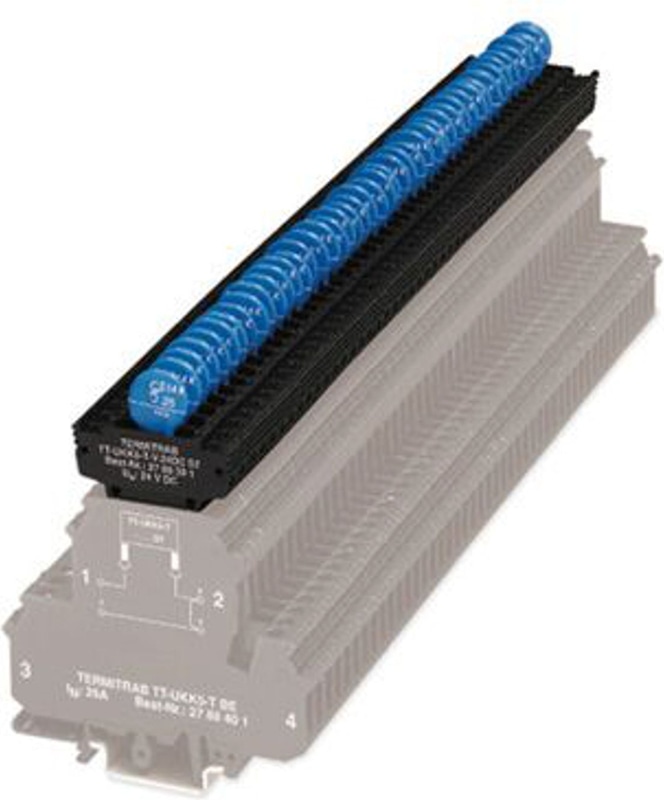

The figure shows version TT-UKK5-T-V-24 DC-ST
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
TT-UKK5-T-V-12DC-ST
Weight
0.008 kg
Series TT-UKK5

TT-UKK5-T-V-12DC-ST - Surge protection plug

Protective plug with varistor to plug onto base element TT-UKK5-T-BE, nominal voltage: 12 V DC

Technical Specifications

Product properties

IEC test classificationC1
IEC test classificationC3
VDE requirement classC1
VDE requirement classC3
TypeSingle-level terminal block
Wire pairs per module1

Electrical properties

Nominal voltage UN12 V DC

Connection data

Connection MethodScrew connection (in connection with the base element)

Dimensions

Width6.2 mm
Height41.5 mm
Depth52 mm

Material specifications

Flammability rating according to UL 94V2
Housing MaterialPA

Mechanical data

Open side panelNo

Protective circuit

Direction of actionLine-Line
Operating effective current IC at UC≤ 100 µA
Nominal discharge current In (8/20) µs (line-line)350 A
Nominal pulse current Ian (10/1000) µs (line-line)25 A
Output voltage limitation at 1 kV/µs (line-line) spike≤ 55 V
Capacity (core-core)11 nF
Impulse durability (line-line)C1 - 500 V / 250 A
Impulse durability (line-line)C3 - 10 A

Ambient conditions

Ambient Temperature (Operation)-40 °C ... 60 °C

Standards and Regulations

VDE requirement classC1
VDE requirement classC3

Mounting

Mounting Typeon base element
