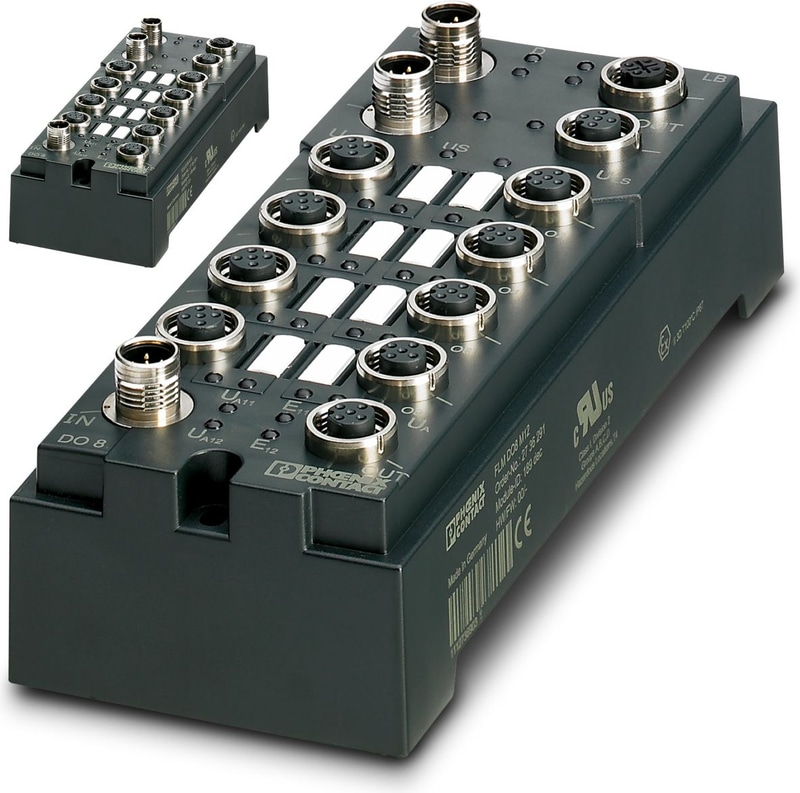

FLM DO 8 M12 - Distributed I/O device

The local bus device has digital outputs. Functions: 8 digital outputs of 500 mA each, 500 kbaud/2 Mbaud selection, channel-specific diagnostics, short-circuit and overload protection, M12 fast connection technology.

Flexible power supply concept
SPEEDCON fast locking system
Diagnostic and status indicators
Short-circuit and overload protection
Consistent connection via M12 connectors

Technical Specifications

Dimensions

Width	70 mm
Height	178 mm
Depth	50 mm
Drill hole spacing	168 mm

Connection Method	M12 connector, B-coded
Designation connection point	Copper cable
Number of Positions	5
Transmission Speed	500 kbps / 2 Mbps (can be switched)

Module

ID code (dec.)	189
ID code (hex)	BD
Length code (hex)	81
Process data channel	1 Byte
Input address area	0 Byte
Output address area	1 Byte
Register length	1 Byte
Required parameter data	3 Byte
Required configuration data	4 Byte

Digital:

Output name	Digital outputs
Connection Method	M12 connector
Connection technology	2-, 3-conductor
Number of Outputs	8
Protective circuit	Short-circuit protection
Output Voltage	24 V DC
Maximum Output Current per channel	500 mA

Product properties

Product family	Fieldline
Type	modular
No. of channels	8

Potentials

Voltage supply U_L	24 V DC
Power supply at U_L	max. 4 A
Current consumption from U_L	max. 50 mA (At 2 Mbaud)
Current consumption from U_L	typ. 45 mA (At 2 Mbaud)
Current consumption from U_L	max. 50 mA (At 500 kBaud)
Current consumption from U_L	typ. 40 mA (At 500 kBaud)
Voltage supply U_S	24 V DC
Power supply at U_S	max. 4 A
Current consumption from U_S	typ. 5 mA (plus power supply for sensors)
Current consumption from U_S	max. 600 mA
Voltage supply U_A11	24 V DC
Power supply at U_A11	max. 4 A
Current consumption at U_A11	typ. 3 mA
Current consumption at U_A11	max. 2 A
Voltage supply U_A12	24 V DC
Power supply at U_A12	max. 4 A
Current consumption at U_A12	typ. 3 mA
Current consumption at U_A12	max. 2 A

Supply: Module electronics

Connection Method	M12 connector
Designation	UL
Supply Voltage	24 V DC
Supply Voltage Range	18 V DC ... 30 V DC (including ripple)

Electrical isolation/isolation of the voltage ranges

Test voltage: To I/O

500 V AC

Connection data

Connection Method

M12 connector

Ambient conditions

Ambient Temperature (Operation)	-25 °C ... 60 °C
Degree of Protection	IP65/IP67
Air pressure (operation)	80 kPa ... 106 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (storage/transport)	95 %

Standards and Regulations

Protection class

III (IEC 61140, EN 61140, VDE 0140-1)

Mounting

Mounting Type

Wall mounting

Accessories

0809735
Zack Marker strip, flat - ZBF 12:UNBEDRUCKT
1507065
SAC-5P-M12MSB/ 2,0-900 - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on free cable end, cable length: 2 m
1507078
SAC-5P-M12MSB/ 5,0-900 - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on free cable end, cable length: 5 m
1507081
SAC-5P-M12MSB/10,0-900 - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on free cable end, cable length: 10 m
1507094
SAC-5P-M12MSB/15,0-900 - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on free cable end, cable length: 15 m
1507117
Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded, free cable end, on Socket straight M12, coding: B, cable length: 2 m
1507120
SAC-5P- 5,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), free cable end, on Socket straight M12, coding: B, cable length: 5 m
1507133
SAC-5P-10,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), free cable end, on Socket straight M12, coding: B, cable length: 10 m
1507146
SAC-5P-15,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), free cable end, on Socket straight M12, coding: B, cable length: 15 m
1507162
SAC-5P-M12MSB/ 0,3-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 0.3 m
1507175
SAC-5P-M12MSB/ 0,5-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 0.5 m
1507188
SAC-5P-M12MSB/ 1,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 1 m
1507191
Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded, Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 2 m
1507201
SAC-5P-M12MSB/ 5,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 5 m
1507214
SAC-5P-M12MSB/10,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 10 m
1507227
SAC-5P-M12MSB/15,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 15 m
1518326
Sensor/actuator cable - SAC-5P-MS/ 2,0-186 SCO
1518339
Sensor/actuator cable - SAC-5P-MS/ 5,0-186 SCO
1518342
Sensor/actuator cable - SAC-5P-MS/10,0-186 SCO
1518355
Sensor/actuator cable - SAC-5P-MS/15,0-186 SCO
1518368
Sensor/actuator cable - SAC-5P- 2,0-186/FS SCO
1518371
Sensor/actuator cable - SAC-5P- 5,0-186/FS SCO
1518384
Sensor/actuator cable - SAC-5P-10,0-186/FS SCO
1518397
Sensor/actuator cable - SAC-5P-15,0-186/FS SCO
1518407
Sensor/actuator cable - SAC-5P-MS/ 0,3-186/FS SCO
1518410
Sensor/actuator cable - SAC-5P-MS/ 0,5-186/FS SCO
1518423
Sensor/actuator cable - SAC-5P-MS/ 1,0-186/FS SCO
1518436
Sensor/actuator cable - SAC-5P-MS/ 2,0-186/FS SCO
1518449
Sensor/actuator cable - SAC-5P-MS/ 5,0-186/FS SCO
1518452
Sensor/actuator cable - SAC-5P-MS/10,0-186/FS SCO
1518465
Sensor/actuator cable - SAC-5P-MS/15,0-186/FS SCO
1507764
Data connector, PROFIBUS, INTERBUS, 5-position, shielded, Plug straight M12, coding: B, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6.5 mm ... 8.5 mm
1507777
SACC-M12FSB-5CON-PG9 SH AU - Data connector, PROFIBUS, INTERBUS, 5-position, shielded, Socket straight M12, coding: B, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6.5 mm ... 8.5 mm
0810038
ZBF 12:SO/CMS Marker 12mm, divisible, 5pos, special printing
1513570
SACC-M12MSB-5SC SH - Connector, 5-position, shielded, Plug straight M12, coding: B, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm
1513596
SACC-M12FSB-5SC SH - Connector, 5-position, shielded, Socket straight M12, coding: B, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm
1513583
SACC-M12MRB-5SC SH - Connector, 5-position, shielded, Plug angled M12, coding: B, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm
1513606
SACC-M12FRB-5SC SH - Connector, 5-position, shielded, Socket angled M12, coding: B, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm
1508187
SACC-M12MS-5SC M - Connector, 5-position, Plug straight M12, coding: A, Spring-cage connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
1518481
Sensor/actuator cable - SAC-5P-MS/ 0,13-186/FS SCO
1518478
Sensor/actuator cable - SAC-5P-MSB/0,13-PUR/FSB SCO SH
