FLM DI 8 M12

Weight

0.343 kg

Series FLM-DI

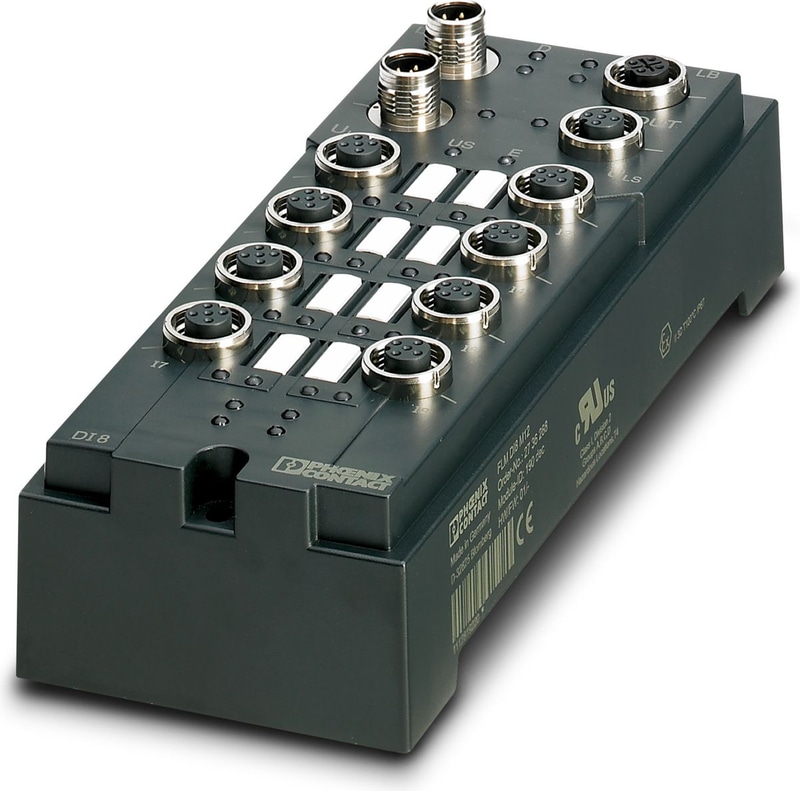

FLM DI 8 M12 - Distributed I/O device

The local bus device has digital inputs. Functions: 8 digital inputs, 3 ms filter time, 500 kbaud/2 Mbaud selection, channel-specific diagnostics, short-circuit and overload protection, 600 mA nominal current, M12 fast connection technology.

Flexible power supply concept
SPEEDCON fast locking system
Short-circuit and overload protection
Diagnostic and status indicators
Consistent connection via M12 connectors

Technical Specifications

Dimensions

Width	70 mm
Height	178.5 mm
Depth	50 mm
Drill hole spacing	168 mm

Connection Method	M12 connector, B-coded
Designation connection point	Copper cable
Number of Positions	5
Transmission Speed	500 kbps / 2 Mbps (can be switched)

Module

ID code (dec.)	190
ID code (hex)	BE
Length code (hex)	81
Process data channel	1 Byte
Input address area	1 Byte
Output address area	0 Byte
Register length	1 Byte
Required parameter data	1 Byte
Required configuration data	4 Byte

Digital:

Input name	Digital inputs
Description of the input	IEC 61131-2 type 1
Number of Inputs	8
Connection Method	M12 connector
Connection technology	2-, 3-, 4-conductor
Input Voltage	24 V DC
Input voltage range "0" signal	-30 V DC ... 5 V DC
Input voltage range "1" signal	13 V DC ... 30 V DC
Nominal input voltage U_IN	24 V DC
Total sensor current	max. 600 mA
Filter time	3 ms
Delay at signal change from 0 to 1	3.1 ms
Delay at signal change from 1 to 0	4.1 ms
Protective circuit	Reverse polarity protection
Output name	M12 connector

Product properties

Product family	Fieldline
Type	modular
No. of channels	8

Potentials

Voltage supply U_L	24 V DC
Power supply at U_L	max. 4 A
Current consumption from U_L	max. 50 mA (At 2 Mbaud)
Current consumption from U_L	typ. 40 mA (At 2 Mbaud)
Current consumption from U_L	max. 50 mA (At 500 kBaud)
Current consumption from U_L	typ. 35 mA (At 500 kBaud)
Voltage supply U_S	24 V DC
Power supply at U_S	max. 4 A
Current consumption from U_S	typ. 5 mA (plus power supply for sensors)
Current consumption from U_S	max. 600 mA

Supply: Module electronics

Connection Method	M12 connector
Designation	UL
Supply Voltage	24 V DC
Supply Voltage Range	18 V DC ... 30 V DC (including ripple)

Electrical isolation/isolation of the voltage ranges

Test voltage: To I/O

500 V AC

Connection data

Connection Method

M12 connector

Ambient conditions

Ambient Temperature (Operation)	-25 °C ... 60 °C
Degree of Protection	IP65/IP67
Air pressure (operation)	80 kPa ... 106 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (storage/transport)	95 %

Standards and Regulations

Protection class

III (IEC 61140, EN 61140, VDE 0140-1)

Mounting

Mounting Type

Wall mounting

Accessories

0809735
Zack Marker strip, flat - ZBF 12:UNBEDRUCKT
1507065
SAC-5P-M12MSB/ 2,0-900 - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on free cable end, cable length: 2 m
1507078
SAC-5P-M12MSB/ 5,0-900 - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on free cable end, cable length: 5 m
1507081
SAC-5P-M12MSB/10,0-900 - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on free cable end, cable length: 10 m
1507094
SAC-5P-M12MSB/15,0-900 - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on free cable end, cable length: 15 m
1507117
Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded, free cable end, on Socket straight M12, coding: B, cable length: 2 m
1507120
SAC-5P- 5,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), free cable end, on Socket straight M12, coding: B, cable length: 5 m
1507133
SAC-5P-10,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), free cable end, on Socket straight M12, coding: B, cable length: 10 m
1507146
SAC-5P-15,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), free cable end, on Socket straight M12, coding: B, cable length: 15 m
1507162
SAC-5P-M12MSB/ 0,3-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 0.3 m
1507175
SAC-5P-M12MSB/ 0,5-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 0.5 m
1507188
SAC-5P-M12MSB/ 1,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 1 m
1507191
Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded, Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 2 m
1507201
SAC-5P-M12MSB/ 5,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 5 m
1507214
SAC-5P-M12MSB/10,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 10 m
1507227
SAC-5P-M12MSB/15,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 15 m
1518326
Sensor/actuator cable - SAC-5P-MS/ 2,0-186 SCO
1518339
Sensor/actuator cable - SAC-5P-MS/ 5,0-186 SCO
1518342
Sensor/actuator cable - SAC-5P-MS/10,0-186 SCO
1518355
Sensor/actuator cable - SAC-5P-MS/15,0-186 SCO
1518368
Sensor/actuator cable - SAC-5P- 2,0-186/FS SCO
1518371
Sensor/actuator cable - SAC-5P- 5,0-186/FS SCO
1518384
Sensor/actuator cable - SAC-5P-10,0-186/FS SCO
1518397
Sensor/actuator cable - SAC-5P-15,0-186/FS SCO
1518407
Sensor/actuator cable - SAC-5P-MS/ 0,3-186/FS SCO
1518410
Sensor/actuator cable - SAC-5P-MS/ 0,5-186/FS SCO
1518423
Sensor/actuator cable - SAC-5P-MS/ 1,0-186/FS SCO
1518436
Sensor/actuator cable - SAC-5P-MS/ 2,0-186/FS SCO
1518449
Sensor/actuator cable - SAC-5P-MS/ 5,0-186/FS SCO
1518452
Sensor/actuator cable - SAC-5P-MS/10,0-186/FS SCO
1518465
Sensor/actuator cable - SAC-5P-MS/15,0-186/FS SCO
1507764
Data connector, PROFIBUS, INTERBUS, 5-position, shielded, Plug straight M12, coding: B, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6.5 mm ... 8.5 mm
1507777
SACC-M12FSB-5CON-PG9 SH AU - Data connector, PROFIBUS, INTERBUS, 5-position, shielded, Socket straight M12, coding: B, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6.5 mm ... 8.5 mm
0810038
ZBF 12:SO/CMS Marker 12mm, divisible, 5pos, special printing
1513570
SACC-M12MSB-5SC SH - Connector, 5-position, shielded, Plug straight M12, coding: B, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm
1513596
SACC-M12FSB-5SC SH - Connector, 5-position, shielded, Socket straight M12, coding: B, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm
1513583
SACC-M12MRB-5SC SH - Connector, 5-position, shielded, Plug angled M12, coding: B, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm
1513606
SACC-M12FRB-5SC SH - Connector, 5-position, shielded, Socket angled M12, coding: B, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm
1508187
SACC-M12MS-5SC M - Connector, 5-position, Plug straight M12, coding: A, Spring-cage connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
1518481
Sensor/actuator cable - SAC-5P-MS/ 0,13-186/FS SCO
1518478
Sensor/actuator cable - SAC-5P-MSB/0,13-PUR/FSB SCO SH
