2773571
Official DistributorSKU
PHX2773571
MPN
FLM DO 8 M8-2MBD
Weight
0.163 kg
Series FLM-DO

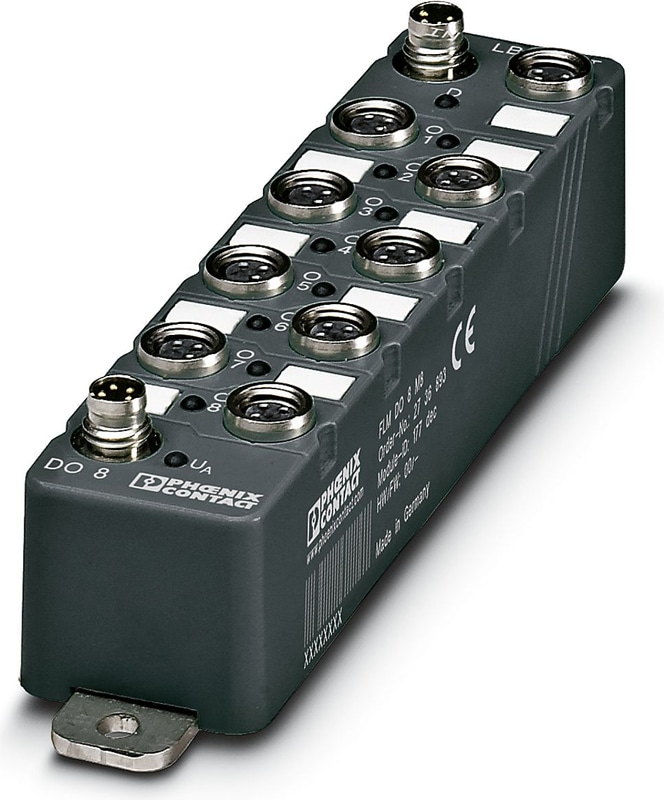

FLM DO 8 M8-2MBD - Distributed I/O device
The space-saving local bus device is particularly suitable for use in close proximity to the process. Functions: 2 Mbaud, 8 digital outputs each with a load capacity of 500 mA, channel-specific diagnostics, short-circuit and overload protection, M8 connection method.
- Consistent connection via M8 connectors
- Short-circuit and overload protection
- Diagnostic and status indicators
- Can also be connected to an Inline station
- Optimized for 30 mm mounting profile
Technical Specifications
Dimensions
| Width | 29.8 mm |
| Height | 143 mm |
| Depth | 26.5 mm |
| Drill hole spacing | 133 mm |
| Note on dimensions | Length details incl. fixing clips |
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Material specifications
| Color | black |
| Connection Method | M8 connector |
| Designation connection point | Copper cable |
| Number of Positions | 4 |
| Transmission Speed | 2 Mbps |
Module
| ID code (dec.) | 177 |
| ID code (hex) | B1 |
| Length code (hex) | 81 |
| Length code (dec) | 129 |
| Process data channel | 8 bit |
| Input address area | 0 bit |
| Output address area | 8 bit |
| Register length | 8 bit |
| Required parameter data | 3 Byte |
| Required configuration data | 4 Byte |
Digital:
| Output name | Digital outputs |
| Connection Method | M8 connector |
| Connection technology | 2-, 3-conductor |
| Number of Outputs | 8 |
| Protective circuit | Short-circuit protection |
| Output Voltage | 24 V DC |
| Maximum Output Current per channel | 500 mA |
Product properties
| Product family | Fieldline |
| Type | modular |
| No. of channels | 8 |
Potentials
| Voltage supply UL | 24 V DC |
Supply: Module electronics
| Connection Method | M8 connector |
| Designation | UL |
| Number of Positions | 4 |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 18 V DC ... 30 V DC (including ripple) |
| Supply current | 3 A |
Electrical isolation/isolation of the voltage ranges
| Test voltage: To I/O | 500 V AC |
Connection data
| Connection Method | M8 connector |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Degree of Protection | IP65/IP67 |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % |
| Permissible humidity (storage/transport) | 10 % ... 95 % |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | Wall mounting |
Why Proax for Phoenix Contact 2773571?
Proax is an authorized distributor of Phoenix Contact 2773571 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
