2700137
Official DistributorSKU
PHX2700137
MPN
PSD-S AE SP1-3 100DB/2
Weight
0.151 kg
This product is Not Cancellable/Not Returnable

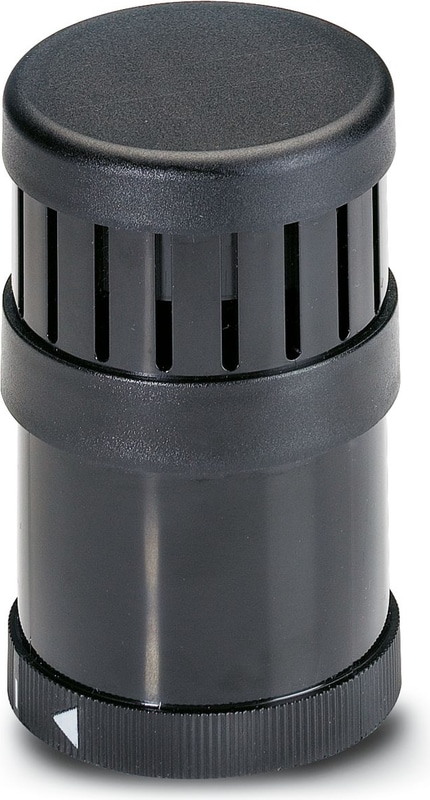

PSD-S AE SP1-3 100DB/2 - Acoustic element
Siren element, pulse tone, 24 V DC, self-regulating volume, max. 100 dB(A), black
- Automatic volume adjustment to the environment
- High volume ensures optimum awareness
Technical Specifications
Electrical properties
| Maximum power dissipation for nominal condition | 3.6 W |
General
| Input Voltage | 24 V DC ±10 % |
| Nominal input voltage range | 21.6 V DC ... 26.4 V DC |
| Maximum Inrush Current | max. 500 mA |
| Current consumption | 150 mA |
| Operating time | 100 % |
| Service life electrical | min. 5,000 h |
| Type of acoustic signal | Pulse tone, automatic volume control |
| Signal frequency | approx. 1 Hz |
| Tone frequency | approx. 2.5 kHz |
| Volume | max. 80 db(A) ... 100 db(A) |
Dimensions
| Height | 110 mm |
| Diameter | 71.5 mm |
Material specifications
| Color | black |
| Material | Polycarbonate PC |
Ambient conditions
| Degree of Protection | IP65, when installed |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Mounting
| Mounting Position | any |
Why Proax for Phoenix Contact 2700137?
Proax is an authorized distributor of Phoenix Contact 2700137 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
