1191993
Official DistributorSKU
PHX1191993
MPN
PSD-S IOL
Weight
0.077 kg

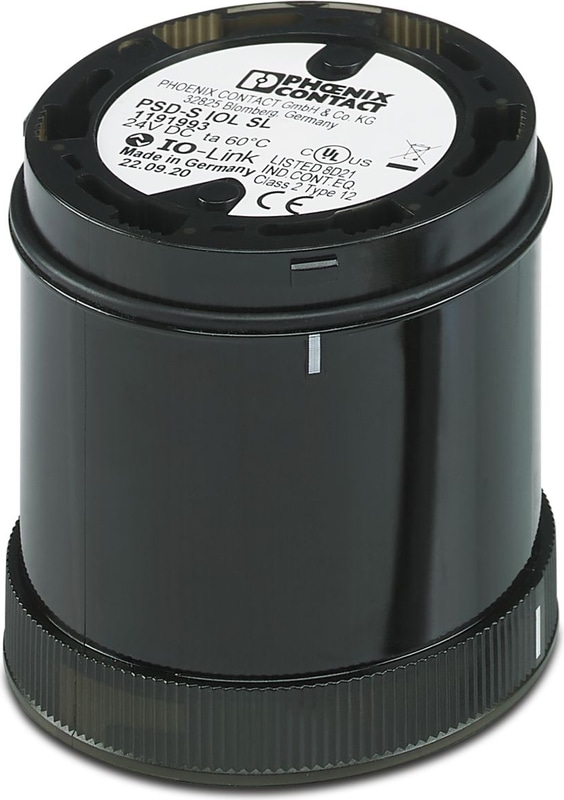

PSD-S IOL - Connection element
IO-Link device for modular signal towers
- Tool-free element changeover
- Can be freely combined
- Low power consumption
- Degree of protection IP65
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
General
| Input Voltage | 24 V DC |
Supply: IO-Link
| Nominal voltage for I/O supply | 24 V DC |
IO-Link
| Number of Ports | 1 |
| Cycle Time | min. 5 ms |
Dimensions
| Height | 65.5 mm |
| Diameter | 70 mm |
Material specifications
| Color | black |
| Material | Polycarbonate PC |
Ambient conditions
| Degree of Protection | IP65 (when installed or with end cover) |
| Ambient Temperature (Operation) | -30 °C ... 60 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC |
Mounting
| Mounting Type | Plug-in mounting |
Why Proax for Phoenix Contact 1191993?
Proax is an authorized distributor of Phoenix Contact 1191993 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
