Official DistributorSKU
MPN
PSD-S ME BR-BM/HCR
Weight
0.078 kg
This product is Not Cancellable/Not Returnable

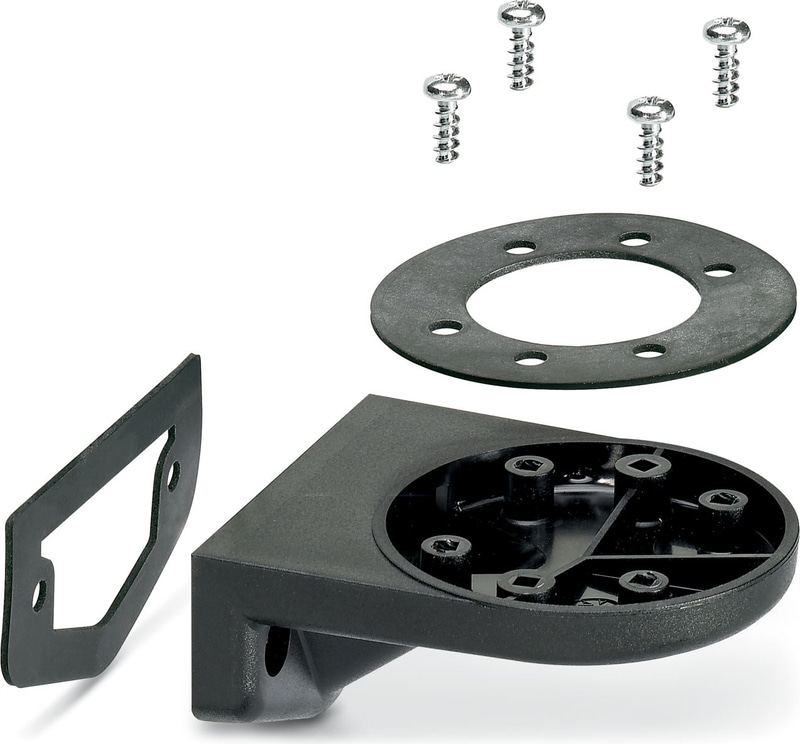

PSD-S ME BR-BM/HCR - Mounting bracket
Angle for base mounting, concealed cable routing, black
Technical Specifications
Product properties
| Scope of delivery | 4 x plastic screw2 x seal |
| Scope of delivery | 4 x plastic screw2 x seal |
Dimensions
| Width | 44.2 mm |
| Height | 98.5 mm |
| Diameter | 79 mm |
Material specifications
| Color | black |
| Material | ABS-PC |
Ambient conditions
| Ambient Temperature (Operation) | -30 °C ... 60 °C |
Mounting
| Mounting Type | Base mounting, concealed cable routing |
| Mounting Type | Tube mounting |
| Assembly instructions | Seal is supplied with |
| Mounting Position | any |
Why Proax for Phoenix Contact 2700149?
Proax is an authorized distributor of Phoenix Contact 2700149 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
