Official DistributorSKU
MPN
PSD-S OE FL CL
Weight
0.088 kg

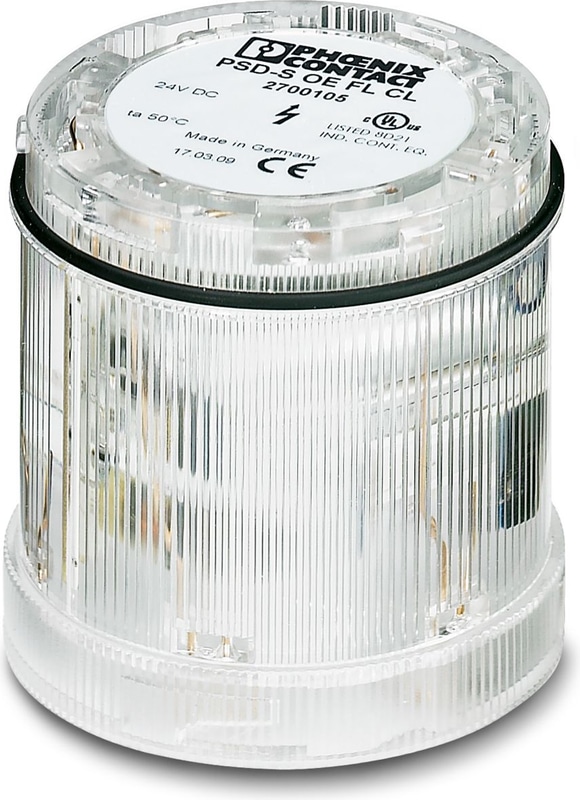

PSD-S OE FL CL - Optical element
Flashing beacon element, 24 V DC, clear, Xenon flash tube
- At least 4 million flashes
- Degree of protection IP65
- Tool-free element changeover
- Can be freely combined
- High light and color intensity
Technical Specifications
Product properties
| Area of application | Signal tower |
Electrical properties
| Maximum power dissipation for nominal condition | 4.8 W |
General
| Input Voltage | 24 V DC |
| Maximum Inrush Current | max. 200 mA |
| Current consumption | 125 mA |
| Source of light type | Xenon flash tube |
| Operating time | 100 % |
| Service life electrical | 4 million flashes, minimum |
| Optical signal type | Flashing |
| Signal frequency | approx. 1 Hz |
Dimensions
| Height | 65.5 mm |
| Diameter | 70 mm |
Material specifications
| Calotte color | clear |
| Material | Polycarbonate PC |
Ambient conditions
| Degree of Protection | IP65 (when installed or with end cover) |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Mounting
| Assembly instructions | Rubber seal pre-installed for each element |
| Mounting Position | any |
