Official DistributorSKU
MPN
PSD-S OE LED FL CL
Weight
0.088 kg
This product is Not Cancellable/Not Returnable

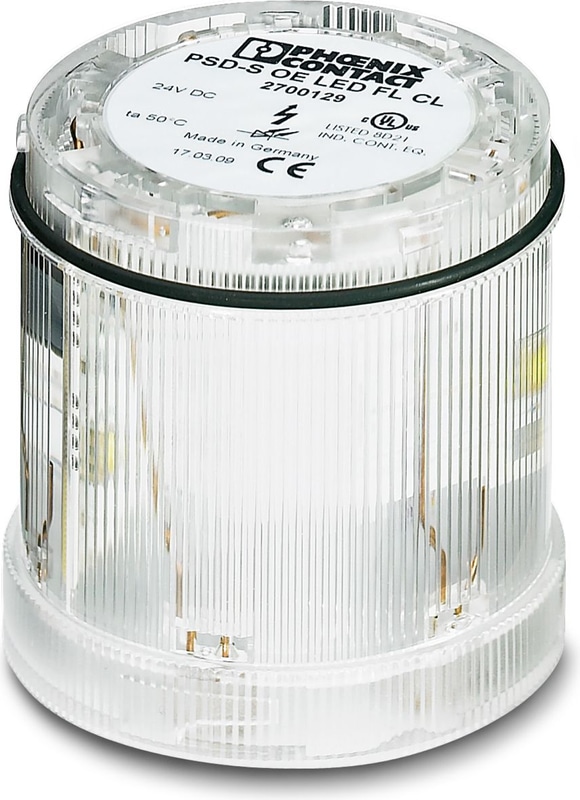

PSD-S OE LED FL CL - Optical element
LED flashing beacon element, 24 V DC, double flash, clear
- Tool-free element changeover
- High light and color intensity
- Can be freely combined
- Minimum LED service life of 50,000 h
- Low power consumption
- Optimum detection thanks to double flash
- Degree of protection IP65
Technical Specifications
Product properties
| Area of application | Signal tower |
Electrical properties
| Maximum power dissipation for nominal condition | 0.84 W |
General
| Input Voltage | 24 V DC |
| Maximum Inrush Current | max. 200 mA |
| Current consumption | 35 mA |
| Source of light type | LED |
| Operating time | 100 % |
| Service life electrical | max. 50,000 h |
| Optical signal type | LED flashing beacon with double flash |
| Signal frequency | approx. 1 Hz |
Dimensions
| Height | 65.5 mm |
| Diameter | 70 mm |
Material specifications
| Calotte color | clear |
| Material | Polycarbonate PC |
Ambient conditions
| Degree of Protection | IP65 (when installed or with end cover) |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Mounting
| Mounting Type | Plug-in mounting |
| Assembly instructions | Rubber seal pre-installed for each element |
| Mounting Position | any |
Why Proax for Phoenix Contact 2700129?
Proax is an authorized distributor of Phoenix Contact 2700129 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
