2702090
Official DistributorSKU
PHX2702090
MPN
PSD-S OE LED MC
Weight
0.082 kg
This product is Not Cancellable/Not Returnable

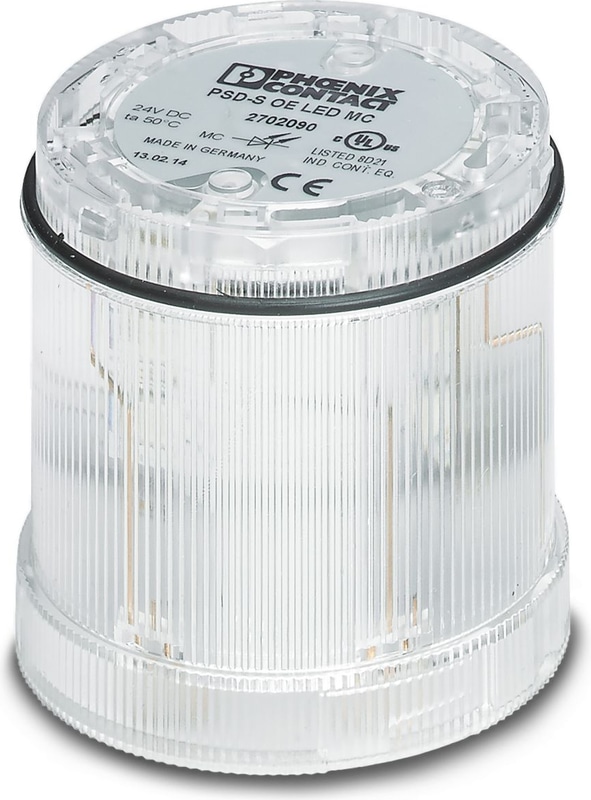

PSD-S OE LED MC - Optical element
LED permanent light element, 24 V DC, 7 colors
- 7 colors in one element
- Can be freely combined
- High light and color intensity
- Minimum LED service life of 50,000 h
- Low power consumption
- Degree of protection IP65
Technical Specifications
Product properties
| Area of application | Signal tower |
Electrical properties
| Maximum power dissipation for nominal condition | 12 W |
General
| Input Voltage | 24 V DC |
| Maximum Inrush Current | max. 500 mA |
| Current consumption | 120 mA |
| Source of light type | LED |
| Operating time | 100 % |
| Service life electrical | max. 50,000 h |
| Optical signal type | Permanent light |
Dimensions
| Height | 65.5 mm |
| Diameter | 70 mm |
Material specifications
| Calotte color | clear |
| Color | red |
| Color | green |
| Color | yellow |
| Color | blue |
| Color | white |
| Color | violet |
| Color | turquoise |
| Note color | In an unconnected state the calotte is clear, once connected it is illuminated according to the colors specified in the control. |
| Material | Polycarbonate PC |
Ambient conditions
| Degree of Protection | IP65 (when installed or with end cover) |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Mounting
| Mounting Type | Plug-in mounting |
| Assembly instructions | Rubber seal pre-installed for each element |
| Mounting Position | any |
