Official DistributorSKU
MPN
PSD-S OE FL RD
Weight
0.088 kg

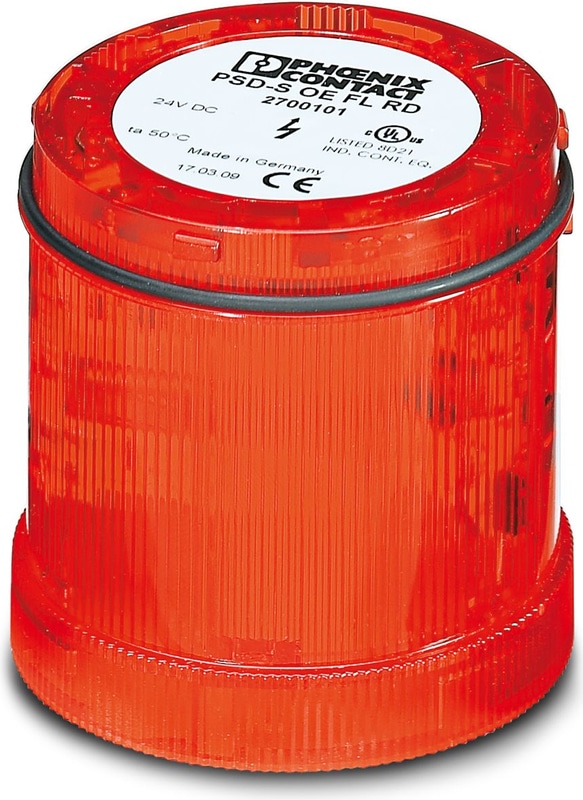

PSD-S OE FL RD - Optical element
Flashing beacon element, 24 V DC, red, Xenon flash tube
- Degree of protection IP65
- At least 4 million flashes
- Tool-free element changeover
- Can be freely combined
- High light and color intensity
Technical Specifications
Product properties
| Area of application | Signal tower |
Electrical properties
| Maximum power dissipation for nominal condition | 4.8 W |
General
| Input Voltage | 24 V DC |
| Maximum Inrush Current | max. 200 mA |
| Current consumption | 125 mA |
| Source of light type | Xenon flash tube |
| Operating time | 100 % |
| Service life electrical | 4 million flashes, minimum |
| Optical signal type | Flashing |
| Signal frequency | approx. 1 Hz |
Dimensions
| Height | 65.5 mm |
| Diameter | 70 mm |
Material specifications
| Calotte color | red |
| Material | Polycarbonate PC |
Ambient conditions
| Degree of Protection | IP65 (when installed or with end cover) |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Mounting
| Assembly instructions | Rubber seal pre-installed for each element |
| Mounting Position | any |
Why Proax for Phoenix Contact 2700101?
Proax is an authorized distributor of Phoenix Contact 2700101 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
