Official DistributorSKU
MPN
PSD-S CE-SM SPRING
Weight
0.091 kg

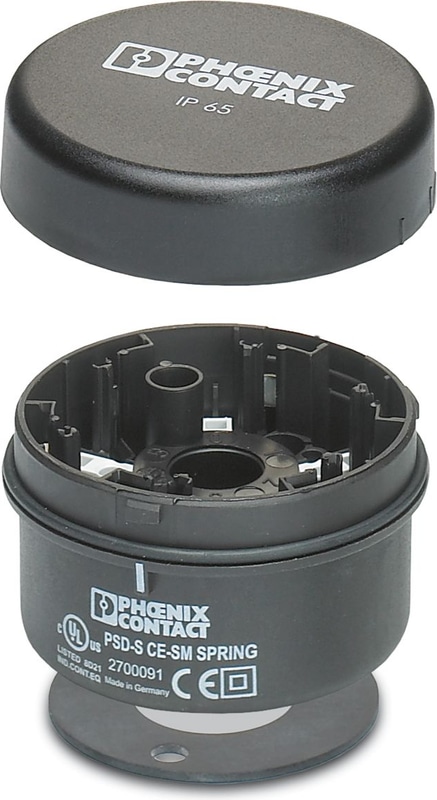

PSD-S CE-SM SPRING - Connection element
Connection element with spring-cage terminal blocks for base mounting
Technical Specifications
Product properties
| Scope of delivery | End cover and seal |
| Scope of delivery | End cover and seal |
| Number of mountable signal elements | max. 5 |
General
| Nominal input voltage range | 12 V AC/DC ... 240 V AC/DC |
without ferrule
| Connection Method | Spring-cage connection |
| Conductor cross section, flexible | 0.5 mm² ... 1.5 mm² |
| Conductor cross section, flexible [AWG] | ... 15 |
| Stripping length | 7 mm |
With ferrule
| Connection Method | Spring-cage connection |
| Conductor cross section, flexible | 0.25 mm² ... 1.5 mm² |
| Conductor cross section, flexible [AWG] | ... 15 |
| Stripping length | 7 mm |
solid
| Connection Method | Spring-cage connection |
| Conductor cross section, rigid | 0.5 mm² ... 1.5 mm² |
| Stripping length | 7 mm |
Dimensions
| Height | 27 mm |
| Diameter | 69 mm |
Material specifications
| Color | black |
| Material | PA-GF |
Ambient conditions
| Degree of Protection | IP65, when installed |
| Ambient Temperature (Operation) | -30 °C ... 50 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC |
Mounting
| Mounting Type | Base mounting |
| Assembly instructions | Rubber seal pre-installed for each element |
| Mounting Position | any |
Accessories
Why Proax for Phoenix Contact 2700091?
Proax is an authorized distributor of Phoenix Contact 2700091 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
