2700141
Official DistributorSKU
PHX2700141
MPN
PSD-S AE SM7-4 100DB/3
Weight
0.096 kg
This product is Not Cancellable/Not Returnable
Series PSD-S-AE-SM

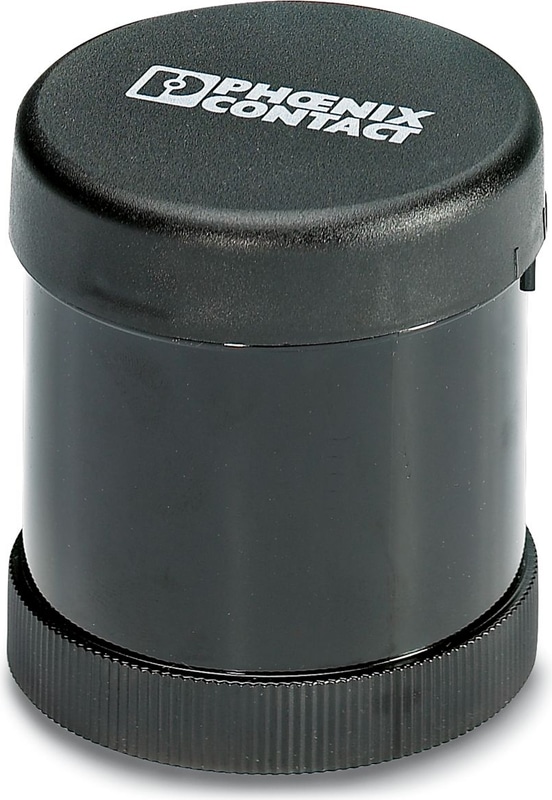

PSD-S AE SM7-4 100DB/3 - Acoustic element
Siren element, 7 tones, 24 V DC, max. 100 dB(A), tone range over 3 signal lines, black
- Multi-tone siren signaling depending on the situation
- Remote control of tone selection via three signal cables
- Adjustable volume
- Minimum volume of 86 dB(A)
Technical Specifications
Electrical properties
| Maximum power dissipation for nominal condition | 1.92 W |
General
| Input Voltage | 24 V DC ±10 % |
| Nominal input voltage range | 21.6 V DC ... 26.4 V DC |
| Maximum Inrush Current | max. 500 mA |
| Current consumption | 80 mA |
| Operating time | 100 % |
| Service life electrical | min. 5,000 h |
| Type of acoustic signal | 7 tones, remotely controlled |
| Signal frequency | approx. 1 Hz (Pulse tone) |
| Signal frequency | approx. 20 Hz (Trill tone) |
| Signal frequency | approx. 420 Hz (Hum tone) |
| Tone frequency | approx. 1.6 kHz |
| Tone frequency | approx. 3.4 kHz |
| Volume | max. 100 dB (for continuous and pulse tone of 3.4 kHz) |
Dimensions
| Height | 72 mm |
| Diameter | 70 mm |
Material specifications
| Color | black |
| Material | Polycarbonate PC |
Ambient conditions
| Degree of Protection | IP65, when installed |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Mounting
| Mounting Position | any |
Why Proax for Phoenix Contact 2700141?
Proax is an authorized distributor of Phoenix Contact 2700141 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
