Official DistributorSKU
MPN
PSD-S AE V15/1
Weight
0.296 kg
This product is Not Cancellable/Not Returnable

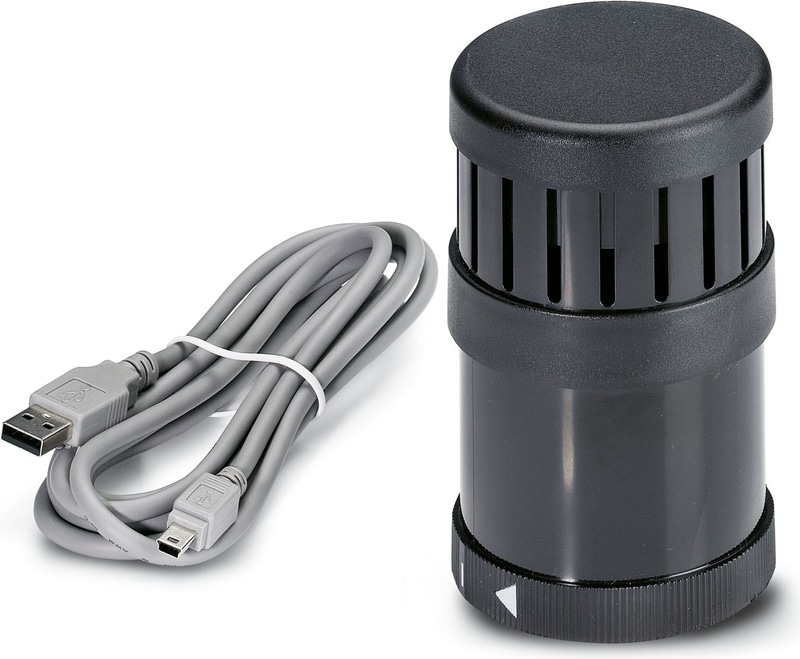

PSD-S AE V15/1 - Acoustic element
Voice output element, 24 V DC, max. 50 mp3 or wav files can be saved, max. 15 files can be controlled, black
- Multilingual signaling thanks to voice output
- Up to 50 mp3 or wav files can be saved
- The volume can be set via configuration software
- The volume can be reduced using up to two control cables
- Maximum volume of 88 dB(A)
- The volume can be set via potentiometer
Documents
Technical Specifications
Note on application
| Note on application | Only for industrial use |
Product properties
| Scope of delivery | USB cable, software for configuring the voice output element, and user manual on the element |
| Scope of delivery | USB cable, software for configuring the voice output element, and user manual on the element |
Electrical properties
| Maximum power dissipation for nominal condition | 1.2 W |
General
| Input Voltage | 24 V DC ±10 % |
| Nominal input voltage range | 21.6 V DC ... 26.4 V DC |
| Maximum Inrush Current | max. 3 A (for approximately 2 ms) |
| Current consumption | max. 50 mA (in standby mode) |
| Current consumption | max. 400 mA (during playback) |
| Operating time | 100 % |
| Service life electrical | min. 5,000 h |
| Type of acoustic signal | Voice, max. 15 texts |
| Volume | approx. 88 |
Dimensions
| Height | 110 mm |
| Diameter | 71.5 mm |
Material specifications
| Color | black |
| Material | Polycarbonate PC |
Ambient conditions
| Degree of Protection | IP65, when installed |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Mounting
| Mounting Position | any |
Why Proax for Phoenix Contact 2700140?
Proax is an authorized distributor of Phoenix Contact 2700140 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
