PSD-S MUX SET/UL - Wireless elements

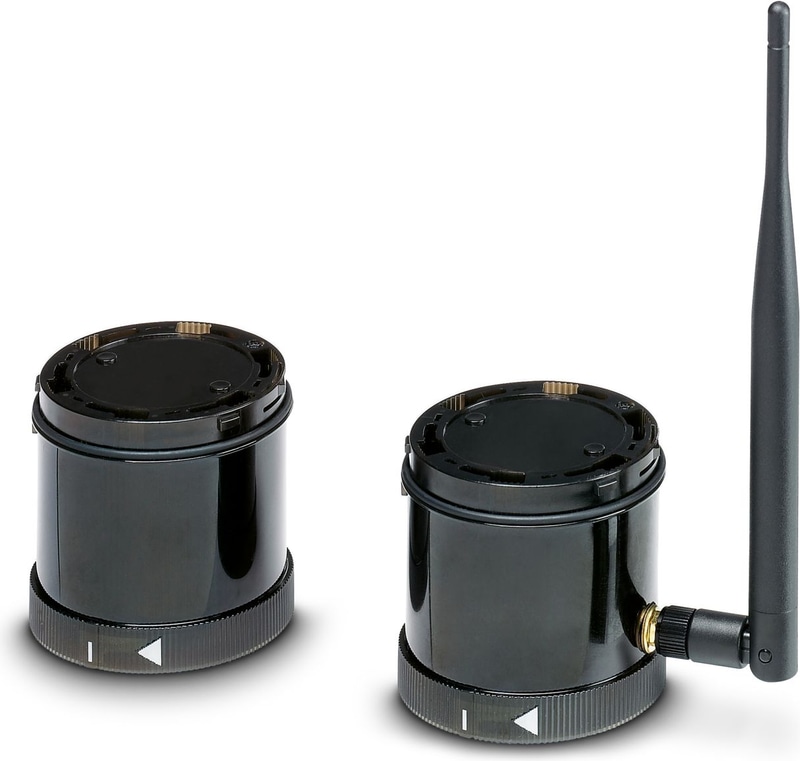

Wireless multiplexer set with C-UL-US approval for mirroring the status of a signal tower to one other signal tower; set consists of a master with external antenna and a slave with internal antenna, 24 V AC/DC, black
- Existing signal towers can be extended without additional wiring
- Can be operated parallel to other wireless applications
- Range of a wireless element with a free line of sight of up to 300 m
Technical Specifications
Product properties
| Scope of delivery | 1 transmitter module (slave) and 1 receiver module (master) |
| Number of mountable signal elements | 4 (on both master and slave) |
Master
| Interfaces | USB, for configuration |
| Operating Voltage | 24 V DC (pos. + neg. logic) |
| Maximum Inrush Current | 430 mA |
| Current consumption | max. 40 mA (internal current consumption) |
| Current consumption | max. 860 mA (total current of the elements above the master) |
Slave
| Interfaces | USB, for configuration |
| Operating Voltage | 24 V AC/DC |
| Maximum Inrush Current | 430 mA |
| Current consumption | max. 40 mA |
Functions
| Wireless licenses | USA, Canada |
| Country support | USA |
| Country support | Canada |
Wireless
| Modulation type | 2 FSK |
| Frequency | 913 MHz |
| Frequency band | 915 MHz |
| Transmission power | 10 dBm (at 50 Ohm) |
| Range | max. 300 m |
| Transmission Speed | 38.4 kbps |
Dimensions
| Height | 65.5 mm |
| Diameter | 70 mm |
| Note on dimensions | with perpendicular antenna: width 104 mm, height 189 mm |
Material specifications
| Color | black |
| Material | Polycarbonate PC |
Ambient conditions
| Degree of Protection | IP65 (when installed or with end cover) |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
EMC data
| Electromagnetic compatibility | Conforms with guidelines: FCC Part 15.249/IC: RSS-210 Issue 8, RSS-GEN Issue 4, RSS-102 Issue 4 |
Mounting
| Assembly instructions | Rubber seal pre-installed for each element |
| Mounting Position | The master and slave are the bottom element in the signal tower |
