1424164
Official DistributorSKU
PHX1424164
MPN
VS-FSBPXS-OE-94F/5,0
Weight
0.271 kg
Series VS-FSBPXS-OE

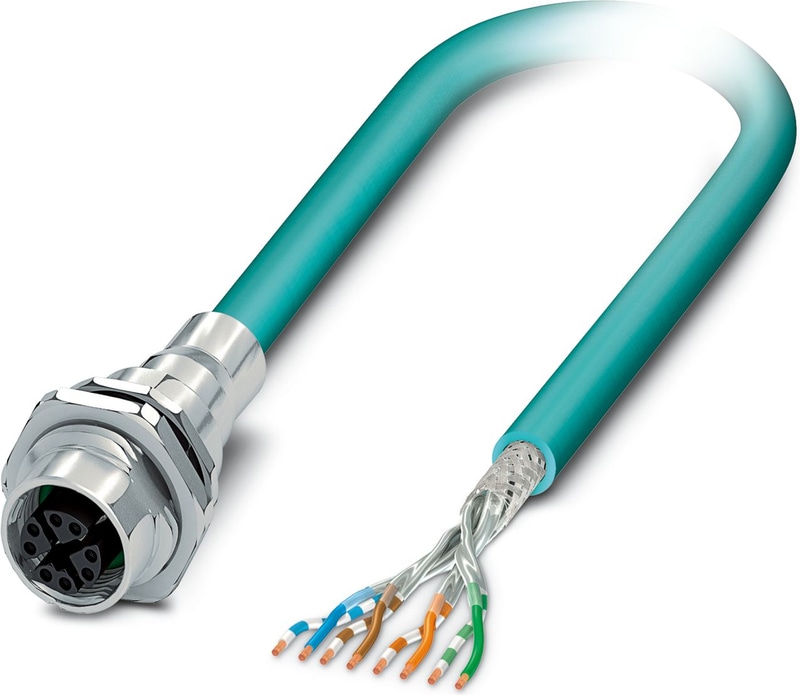

VS-FSBPXS-OE-94F/5,0 - Device connector rear mounting
Device connector rear mounting, Ethernet CAT6A (10 Gbps) CAT6A, 8-position, PUR, water blue RAL 5021, shielded, Socket, straight, M12-SPEEDCON, coding: X, on free cable end, Rear mounting, M16 x 1.5, Bus line, cable length: 5 m, Ethernet 10 Gbit, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239449
- Preassembled with cables in various standard lengths for immediate use
- Customer-specific assemblies and cable lengths can be supplied
- Sealed on the cable side for optimum tightness of seal
- Cable designs for all common networks and fieldbuses
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical Specifications
Notes
| Notes on operation | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| General | Contact connection method: Crimp connection |
Safety note
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Safety note | • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. |
| Safety note | • The products are suitable for applications in plant, controller, and electrical device engineering. |
| Safety note | • When operating the connectors in outdoor applications, they must be separately protected against environmental influences. |
| Safety note | • Assembled products may not be manipulated or improperly opened. |
| Safety note | • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). |
| Safety note | • When using the product in direct connection with third-party manufacturers, the user is responsible. |
| Safety note | • For operating voltages > 50 V AC, conductive connector housings must be grounded |
| Safety note | • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. |
| Safety note | • Observe the corresponding technical data. You will find information:o On the producto On the packing labelo In the supplied documentationo Online at phoenixcontact.com/products under the product |
| Safety note | • Only use tools recommended by Phoenix Contact |
| Safety note | • Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products |
| Safety note | • Ensure that the protective or functional ground has been properly connected. |
| Safety note | • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector |
| Safety note | • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
Product properties
| Application | Railway applications |
| Sensor Type | Ethernet |
| Number of Positions | 8 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Coding | X |
| Thread type | M12 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Interfaces
| Bus system | Ethernet |
| Signal type/category | Ethernet CAT6A, 10 Gbps |
Electrical properties
| Rated surge voltage | 0.8 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 50 V AC |
| Nominal voltage UN | 60 V DC |
| Nominal current IN | 0.5 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed) |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT6A |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM |
| Contact Material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PPA |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Outer sheath, material | PUR |
Connection technology
| Connection Method | Bus line |
Conductor connection
| Contact connection type | Socket |
| Connection Method | Bus line |
| Tightening torque | 2 Nm ... 3 Nm (Installation-side) |
Connection 1
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M12 |
| Head locking type | SPEEDCON |
| Coding | X |
Connection 2
| Head design | free cable end |
Cable/line
| Cable Length | 5 m |
Ethernet 10 Gbit [94F]
| Cable weight | 42 kg/km |
| UL AWM style | 20963 (80°C/30 V) |
| Number of Positions | 8 |
| Shielded | yes |
| Cable Type | Ethernet 10 Gbit [94F] |
| Conductor structure | 4x2xAWG26/7; S/FTP |
| Signal runtime | 5.13 ns/m |
| Conductor structure signal line | 7x 0.16 mm |
| AWG Signal Line | 26 |
| Conductor Cross Section | 4x 2x 0.14 mm² |
| Wire diameter incl. insulation | 1.04 mm |
| External Cable Diameter | 6.40 mm ±0.2 mm |
| Outer sheath, material | PUR |
| External sheath, color | water blue RAL 5021 |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | Foamed PE |
| Single wire, color | white/blue-blue, white/orange-orange, white/green-green, white/brown-brown |
| Thickness, outer sheath | 0.65 mm |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined foil |
| Overall twist | 4 pairs for core |
| Optical shield covering | 70 % |
| Insulation resistance | ≥ 500 MΩ*km |
| Loop resistance | ≤ 290.00 Ω/km |
| Wave impedance | 100 Ω ±5 Ω (at 100 MHz) |
| Cable capacity | 47 nF/km |
| Nominal voltage, cable | ≤ 100 V |
| Test voltage Core/Core | 700 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 700.00 V (50 Hz, 1 min.) |
| Minimum bending radius, fixed installation | 4 x D |
| Minimum bending radius, flexible installation | 8 x D |
| Smallest bending radius, fixed installation | 26 mm |
| Smallest bending radius, movable installation | 52 mm |
| Tensile strength | ≤ 100 N |
| Near end crosstalk attenuation (NEXT) | 75.3 dB (with 1 MHz) |
| Near end crosstalk attenuation (NEXT) | 66.3 dB (at 4 МHz) |
| Near end crosstalk attenuation (NEXT) | 61.8 dB (at 8 МHz) |
| Near end crosstalk attenuation (NEXT) | 60.3 dB (at 10 MHz) |
| Near end crosstalk attenuation (NEXT) | 57.2 dB (at 16 MHz) |
| Near end crosstalk attenuation (NEXT) | 55.8 dB (at 20 МHz) |
| Near end crosstalk attenuation (NEXT) | 54.3 dB (at 25 MHz) |
| Near end crosstalk attenuation (NEXT) | 52.8 dB (at 31.25 МHz) |
| Near end crosstalk attenuation (NEXT) | 48.4 dB (at 62.5 МHz) |
| Near end crosstalk attenuation (NEXT) | 45.3 dB (at 100 MHz) |
| Near end crosstalk attenuation (NEXT) | 40.8 dB (at 200 MHz) |
| Near end crosstalk attenuation (NEXT) | 39.3 dB (at 250 MHz) |
| Near end crosstalk attenuation (NEXT) | 38.1 dB (at 300 MHz) |
| Near end crosstalk attenuation (NEXT) | 38.1 dB (at 400 MHz) |
| Near end crosstalk attenuation (NEXT) | 38.1 dB (at 500 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 72.3 dB (with 1 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 63.3 dB (at 4 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 58.8 dB (at 8 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 57.3 dB (at 10 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 54.2 dB (at 16 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 52.8 dB (at 20 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 51.3 dB (at 25 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 49.9 dB (at 31.25 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 45.4 dB (at 62.5 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 42.3 dB (at 100 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 37.8 dB (at 200 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 36.3 dB (at 250 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 35.1 dB (at 300 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 33.3 dB (at 400 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 31.8 dB (at 500 MHz) |
| Return attenuation (RL) | 20 dB (with 1 MHz) |
| Return attenuation (RL) | 23 dB (at 4 МHz) |
| Return attenuation (RL) | 24.5 dB (at 8 МHz) |
| Return attenuation (RL) | 25 dB (at 10 MHz) |
| Return attenuation (RL) | 25 dB (at 16 MHz) |
| Return attenuation (RL) | 25 dB (at 20 МHz) |
| Return attenuation (RL) | 24.2 dB (at 25 MHz) |
| Return attenuation (RL) | 23.3 dB (at 31.25 МHz) |
| Return attenuation (RL) | 20.7 dB (at 62.5 МHz) |
| Return attenuation (RL) | 19 dB (at 100 MHz) |
| Return attenuation (RL) | 16.4 dB (at 200 MHz) |
| Return attenuation (RL) | 15.6 dB (at 250 MHz) |
| Return attenuation (RL) | 15.6 dB (at 300 MHz) |
| Return attenuation (RL) | 15.6 dB (at 400 MHz) |
| Return attenuation (RL) | 15.6 dB (at 500 MHz) |
| Shield attenuation | 3.1 dB (with 1 MHz) |
| Shield attenuation | 5.7 dB (at 4 МHz) |
| Shield attenuation | 8 dB (at 8 МHz) |
| Shield attenuation | 8.9 dB (at 10 MHz) |
| Shield attenuation | 11.2 dB (at 16 MHz) |
| Shield attenuation | 12.6 dB (at 20 МHz) |
| Shield attenuation | 14.1 dB (at 25 MHz) |
| Shield attenuation | 15.8 dB (at 31.25 МHz) |
| Shield attenuation | 22.5 dB (at 62.5 МHz) |
| Shield attenuation | 28.7 dB (at 100 MHz) |
| Shield attenuation | 41.4 dB (at 200 MHz) |
| Shield attenuation | 46.6 dB (at 250 MHz) |
| Shield attenuation | 51.4 dB (at 300 MHz) |
| Shield attenuation | 60.1 dB (at 400 MHz) |
| Shield attenuation | 67.9 dB (at 500 MHz) |
| Shield attenuation | ≥ 80.00 dB (at 30 ... 100 MHz) |
| Halogen-free | according to IEC 60754-1 |
| Flame resistance | according to IEC 60332-1-2 |
| Resistance to Oil | in accordance with DIN EN 60811-2-1 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (Cable, flexible installation) |
| Ambient temperature (installation) | -20 °C ... 80 °C |
Ambient conditions
| Degree of Protection | IP67 |
| Degree of Protection | IP65 |
| Degree of Protection | IP65/IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug / socket) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (without mechanical actuation) |
M12
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-109 |
| Standard designation | Shock, vibration |
| Standards/specifications | EN 50155 |
Accessories
CUTFOX-S VDE - Diagonal cutter for hard (piano wire) and soft wires, VDE 1000 V AC/1500 V DC tested
MICROFOX-SP-1 - Electronic diagonal cutter, tapered head, without chamfer, with opening spring, non-reflective phosphate-treated surface, punched version
WP-PA HF 13,0 BK - Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: V0, inner diameter: 10 mm, Total length: 50 m
WP-PA HF-HB 13,0 BK - Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: HB, inner diameter: 10 mm, Total length: 50 m
SACC-M12MSX-8QO SH ETH - Data connector, Ethernet CAT6A (10 Gbps), 8-position, halogen-free, shielded, Plug straight M12, coding: X, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 5 mm ... 9.7 mm
SACC-M12FSX-8QO SH ETH - Data connector, Ethernet CAT6A (10 Gbps), 8-position, halogen-free, shielded, Socket straight M12, coding: X, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 5 mm ... 9.7 mm
SACC-CC-8QO SH ETH - Cable connector, Ethernet CAT6A (10 Gbps), 8-pos., halogen-free, shielded, insulation displacement connection, housing material: zinc die-cast, nickel-plated, outer cable diameter of 5 mm ... 9.7 mm
VS-08-M12MS-10G-P SCO - Data connector, Ethernet CAT6A (10 Gbps), 8-position, shielded, Plug straight M12 SPEEDCON, coding: X, Piercecon® fast connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
VS-08-M12MR-10G-P SCO - Data connector, Ethernet CAT6A (10 Gbps), 8-position, shielded, Plug angled M12 SPEEDCON, coding: X, Piercecon® fast connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
SACC-M12MSX-8CT-CL SH - Data connector, Ethernet CAT6A (10 Gbps), PROFINET CAT6A (10 Gbps), 8-position, shielded, Plug straight M12, coding: X, Crimp connection, knurl material: Zinc die-cast, tin-plated, external cable diameter 6.5 mm ... 10 mm, without crimp contacts
VS-08-RJ45-10G/Q - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 10 Gbps, CAT6A, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: straight, color: black, Ethernet
CUC-IND-C1ZNI-S/R4IE8 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5, material: Metal, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: straight, color: green, Ethernet
CUC-IND-C1ZNI-T/R4IE8 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5, material: Metal, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: angled, Ethernet
CUC-IND-C1ZNI-B/R4IE8 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5, material: Metal, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: angled, Ethernet
VS-PPC-C1-RJ45-POBK-8I10G - RJ45 connector, degree of protection: IP65/IP67, number of positions: 8, 10 Gbps, CAT6A, material: Plastic, connection method: Crimp connection, connection cross section: AWG 27- 24, cable outlet: straight, color: black, Ethernet
Why Proax for Phoenix Contact 1424164?
Proax is an authorized distributor of Phoenix Contact 1424164 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
Recommended
VS-FSBPXS-OE-94F/2,0 - Device connector rear mounting, Ethernet CAT6A (10 Gbps) CAT6A, 8-position, PUR, water blue RAL 5021, shielded, Socket, straight, M12-SPEEDCON, coding: X, on free cable end, Rear mounting, M16 x 1.5, Bus line, cable length: 2 m, Ethernet 10 Gbit, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239448- VS-FSBPXS-OE-94F/1,0 - Device connector rear mounting, Ethernet CAT6A (10 Gbps) CAT6A, 8-position, PUR, water blue RAL 5021, shielded, Socket, straight, M12-SPEEDCON, coding: X, on free cable end, Rear mounting, M16 x 1.5, Bus line, cable length: 1 m, For railway applications, Ethernet 10 Gbit, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239447
- VS-FSBPXS-OE-94F/1,0X - Device connector rear mounting, Ethernet CAT6A (10 Gbps) CAT6A, 8-position, PUR, water blue RAL 5021, shielded, Socket, straight, M12-SPEEDCON, coding: X, on free cable end, Rear mounting, M16 x 1.5, Bus line, cable length: 1 m, For railway applications, Ethernet 10 Gbit, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
- Device connector rear mounting, Ethernet CAT6A (10 Gbps) CAT6A, 8-position, PUR, water blue RAL 5021, shielded, Socket, straight, M12-SPEEDCON, coding: X, on free cable end, M16 x 1.5, Bus line, cable length: 10 m, Ethernet 10 Gbit, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238833
- Device connector rear mounting, Ethernet CAT6A (10 Gbps) CAT6A, 8-position, PUR, water blue RAL 5021, shielded, Socket, straight, M12-SPEEDCON, coding: X, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 0.5 m, Ethernet 10 Gbit, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1237433
VS-FSBPYS-OE-94H/5,0 SCO - Device connector rear mounting, Ethernet hybrid CAT5 (100 Mbps) CAT5 (100 Mbps), 8-position, Socket, straight, M12-SPEEDCON, coding: Y, on free cable end, Rear mounting, M16 x 1.5, Hybrid cable, cable length: 5 m, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238752- VS-FSBPYS-OE-94H/2,0 SCO - Device connector rear mounting, Ethernet hybrid CAT5 (100 Mbps) CAT5 (100 Mbps), 8-position, Socket, straight, M12-SPEEDCON, coding: Y, on free cable end, Rear mounting, M16 x 1.5, Hybrid cable, cable length: 2 m, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238751
- VS-FSBPYS-OE-94H/1,0 SCO - Device connector rear mounting, Ethernet hybrid CAT5 (100 Mbps) CAT5 (100 Mbps), 8-position, Socket, straight, M12-SPEEDCON, coding: Y, on free cable end, Rear mounting, M16 x 1.5, Hybrid cable, cable length: 1 m, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238750
- VS-FSBPYS-OE-94H/0,5 SCO - Device connector rear mounting, Ethernet hybrid CAT5 (100 Mbps) CAT5 (100 Mbps), 8-position, Socket, straight, M12-SPEEDCON, coding: Y, on free cable end, Rear mounting, M16 x 1.5, Hybrid cable, cable length: 0.5 m, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238749
VS-FSDBPS-OE-93G-LI/0,5 - Device connector rear mounting, PROFINET CAT5 (100 Mbps) CAT5 (100 Mbps), 4-position, PVC halogen-free, green RAL 6018, shielded, Socket, straight, M12-SPEEDCON, coding: D, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 0.5 m, PROFINET, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239225
VS-FSDBPS-OE-93K-LI/5,0 - Device connector rear mounting, PROFINET CAT5 (100 Mbps) CAT5 (100 Mbps), 4-position, PVC halogen-free, green RAL 6018, shielded, Socket, straight, M12-SPEEDCON, coding: D, on free cable end, Rear mounting, Cable connection, cable length: 5 m, PROFINET, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239236- VS-FSDBPS-OE-93K-LI/2,0 - Device connector rear mounting, PROFINET CAT5 (100 Mbps) CAT5 (100 Mbps), 4-position, PVC halogen-free, green RAL 6018, shielded, Socket, straight, M12-SPEEDCON, coding: D, on free cable end, Rear mounting, Cable connection, cable length: 2 m, PROFINET, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239235
- VS-FSDBPS-OE-93K-LI/1,0 - Device connector rear mounting, PROFINET CAT5 (100 Mbps) CAT5 (100 Mbps), 4-position, PVC halogen-free, green RAL 6018, shielded, Socket, straight, M12-SPEEDCON, coding: D, on free cable end, Rear mounting, Cable connection, cable length: 1 m, PROFINET, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239234
- VS-FSDBPS-OE-93K-LI/0,5 - Device connector rear mounting, PROFINET CAT5 (100 Mbps) CAT5 (100 Mbps), 4-position, PVC halogen-free, green RAL 6018, shielded, Socket, straight, M12-SPEEDCON, coding: D, on free cable end, Rear mounting, Cable connection, cable length: 0.5 m, PROFINET, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239233
- VS-FSDBPS-OE-93G-LI/5,0 - Device connector rear mounting, PROFINET CAT5 (100 Mbps) CAT5 (100 Mbps), 4-position, PVC halogen-free, green RAL 6018, shielded, Socket, straight, M12-SPEEDCON, coding: D, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 5 m, PROFINET, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239228
- VS-FSDBPS-OE-93G-LI/2,0 - Device connector rear mounting, PROFINET CAT5 (100 Mbps) CAT5 (100 Mbps), 4-position, PVC halogen-free, green RAL 6018, shielded, Socket, straight, M12-SPEEDCON, coding: D, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 5 m, PROFINET, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239227
- VS-FSDBPS-OE-93G-LI/1,0 - Device connector rear mounting, PROFINET CAT5 (100 Mbps) CAT5 (100 Mbps), 4-position, PVC halogen-free, green RAL 6018, shielded, Socket, straight, M12-SPEEDCON, coding: D, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 1 m, PROFINET, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239226
VS-FSDBPS-IP20-937-2,0 - Network cable, cable length: 2 m, number of positions: 4, CAT5, cable outlet: straight, PROFINET
VS-FSDBPS-IP20-93G-LI/2,0 - Assembled EtherCAT® cable, shielded, star quad, AWG 22 stranded (7-wire), RAL 6018 (yellow-green), M12 flush-type socket, SPEEDCON, 4-pos. on RJ45 connector/IP20, length: 2 m
