1402765
Official DistributorSKU
PHX1402765
MPN
VS-FSDBPS-IP20-937-2,0
Weight
0.163 kg
Series VS-FSDBPS-IP20
VS-FSDBPS-IP20-937-2,0 - Network cable

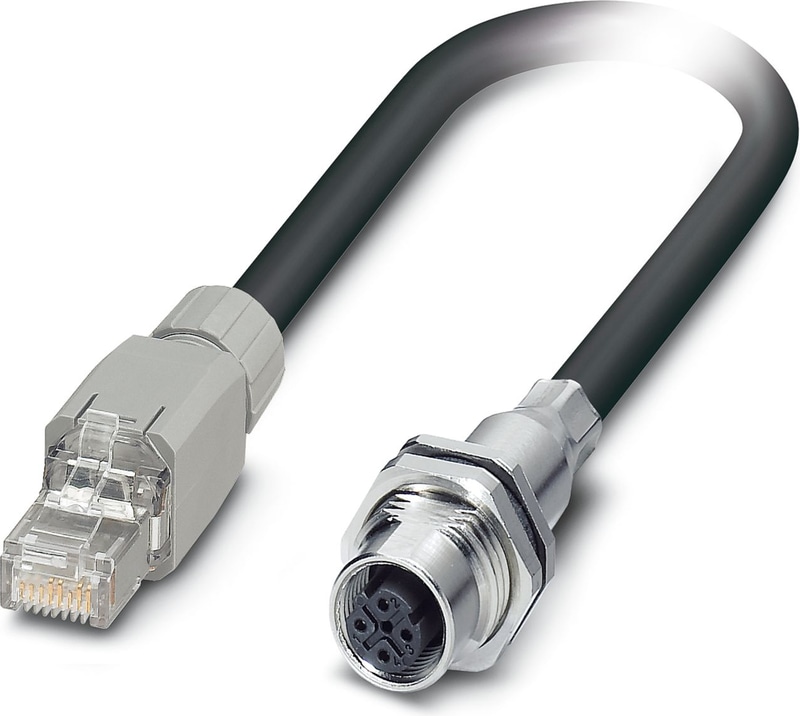

Network cable, cable length: 2 m, number of positions: 4, CAT5, cable outlet: straight, PROFINET
Technical Specifications
Mounting
| Mounting Type | Screw mounting |
Product properties
| Type | M12 |
| Sensor Type | PROFINET |
| Number of Positions | 4 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Cable outlet | straight |
Insulation characteristics
| Overvoltage category | I |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | V2 |
| Outer sheath, material | PE-X |
| Conductor material | silver-plated Cu litz wires |
Electrical properties
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Transmission Speed | 100 Mbps |
| Wave impedance | 100 Ω |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Connection 1
| Type | Flush-type female connector straight M12 |
Connection 2
| Type | Plug straight RJ45 |
Cable/line
| Cable Length | 2.00 m |
PROFINET RADOX® railway application CAT5 [937]
| Shielded | yes |
| Cable weight | 70 kg/km |
| Cable Type | PROFINET RADOX® railway application CAT5 |
| Cable type (abbreviation) | 937 |
| Signal type/category | PROFINET CAT5 (IEC 11801), 100 Mbps |
| Signal type/category | EtherCAT® CAT5 (IEC 11801), 100 Mbps |
| Cable structure | 1x4xAWG22/7, SF/TQ |
| External Cable Diameter | 6.60 mm ±0.4 mm |
| Outer sheath, material | PE-X |
| External sheath, color | black RAL 9005 |
| Thickness, outer sheath | approx. 1.00 mm |
| Conductor material | silver-plated Cu litz wires |
| Conductor structure signal line | 7x 0.25 mm |
| AWG Signal Line | 22 |
| Conductor Cross Section | 4x 0.34 mm² |
| Material wire insulation | Foamed PE |
| Wire diameter incl. insulation | approx. 1.5 mm |
| Single wire, color | white-blue, orange-yellow |
| Overall twist | Star quad |
| Shielding | Plastic-coated aluminum foil, tinned copper braided shield |
| Nominal voltage, cable | 300 V AC |
| Test voltage, cable | 2000 V AC (50 Hz, 5 minutes) |
| Cable resistance | ≤ 54.4 Ω/km |
| Coupling resistance | 200.00 mΩ/m (f ≤ 30 MHz) |
| Wave impedance | 100 Ω ±5 Ω (f = 100 MHz) |
| Working capacitance | ≤ 65 pF (Line-line) |
| Working capacitance | ≤ 100 pF (Line-shield) |
| Signal speed | 75 c |
| Minimum bending radius, fixed installation | 6 x D |
| Remote crosstalk attenuation (FEXT) | 78 dB (with 1 MHz) |
| Remote crosstalk attenuation (FEXT) | 77 dB (at 4 МHz) |
| Remote crosstalk attenuation (FEXT) | 70 dB (at 10 MHz) |
| Remote crosstalk attenuation (FEXT) | 65 dB (at 31.5 МHz) |
| Remote crosstalk attenuation (FEXT) | 56 dB (at 62.5 МHz) |
| Remote crosstalk attenuation (FEXT) | 48 dB (at 100 MHz) |
| Near end crosstalk attenuation (NEXT) | 73 dB (with 1 MHz) |
| Near end crosstalk attenuation (NEXT) | 70 dB (at 4 МHz) |
| Near end crosstalk attenuation (NEXT) | 65 dB (at 10 MHz) |
| Near end crosstalk attenuation (NEXT) | 57 dB (at 31.5 МHz) |
| Near end crosstalk attenuation (NEXT) | 52 dB (at 62.5 МHz) |
| Near end crosstalk attenuation (NEXT) | 48 dB (at 100 MHz) |
| Return attenuation (RL) | 25 dB (at 4 МHz) |
| Return attenuation (RL) | 30 dB (at 10 MHz) |
| Return attenuation (RL) | 30 dB (at 31.5 МHz) |
| Return attenuation (RL) | 30 dB (at 62.5 МHz) |
| Return attenuation (RL) | 28 dB (at 100 MHz) |
| Shield attenuation | 40.00 dB (30 MHz ≤ f ≤ 100 MHz) |
| Fire protection in rail vehicles | BS 6853 (Category Ia, Ib, II) |
| Fire protection in rail vehicles | GM/RT 2130 (Category Ia, Ib, II) |
| Fire protection in rail vehicles | EN 45545 (Risk level HL1 - HL3) |
| Fire protection in rail vehicles | DIN 5510 (Fire protection level 1, 2, 3, 4) |
| Fire protection in rail vehicles | NF F16-101 (Category A1, A2, B) |
| Fire protection in rail vehicles | NF F16-101 (Class C/F0) |
| Fire protection in rail vehicles | NFPA 130 |
| Fire protection in rail vehicles | UNI CEI 11170 (Risk level LR1 - LR4) |
| Halogen-free | in accordance with EN 50267-2-1 |
| Resistance to Oil | according to IRM 902, 72 h at 100 °C |
| Concentration of fumes | BS 6853 D.8.7 |
| Concentration of fumes | EN 61034-2 |
| Concentration of fumes | UL 1685, 12 (FT4) |
| Fume toxicity | BS 6853 B.1 |
| Fume toxicity | EN 50305, 9.2 |
| Fume corrosiveness | EN 50267-2-2 |
| Flame resistance | EN 60332-1-2 |
| Flame resistance | EN 50266 |
| Flame resistance | EN 60332-3-25 |
| Flame resistance | NF C32-070, 2.1 |
| Flame resistance | NF C32-070, 2.2 |
| Flame resistance | UL 1685, 12 (FT4) |
| Flame resistance | in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01) |
| Other resistance | Resistance to fuels (according to IRM 903, 168 h at 70 °C) |
| Ambient Temperature (Operation) | -40 °C ... 90 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | -50 °C ... 90 °C (cable, fixed installation) |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C (Plug / socket) |
