1419167
Official DistributorSKU
PHX1419167
MPN
VS-FSDBPS-IP20-93K-LI/2,0
Weight
0.175 kg
Series VS-FSDBPS-IP20
VS-FSDBPS-IP20-93K-LI/2,0 - Bus system cable

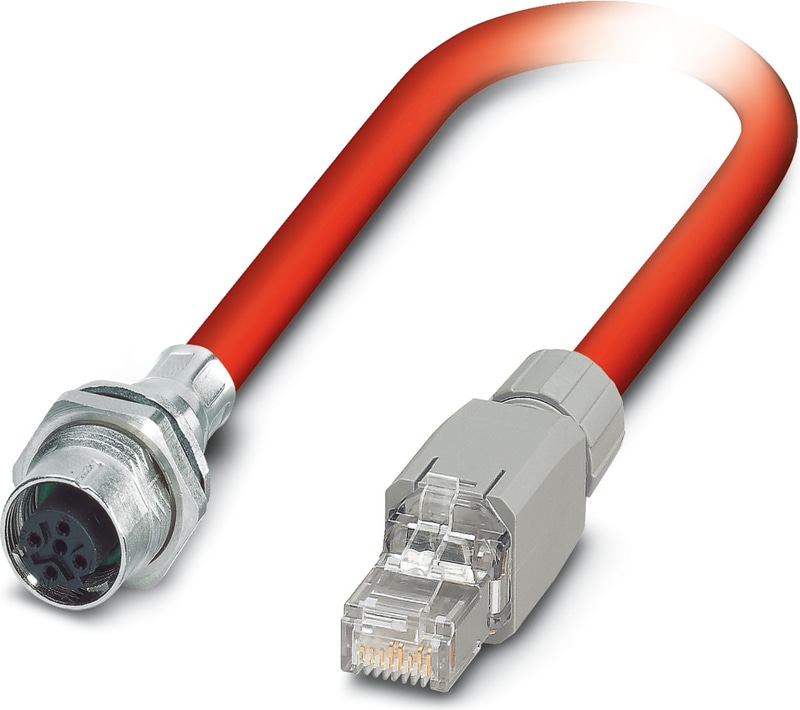

Assembled Sercos III cable, shielded, star quad, AWG 22 stranded (7-wire), RAL 3020 (traffic red), M12 flush-type socket, rear mounting, SPEEDCON 4-pos. on free RJ45 connector/IP20, length: 2 m
Technical Specifications
Product properties
| Sensor Type | Sercos |
| Number of Positions | 4 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Cable outlet | straight |
Material specifications
| Outer sheath, material | PVC |
| Conductor material | Tin-plated Cu litz wires |
Electrical properties
| Transmission medium | Copper |
Connection 1
| Type | Flush-type female connector straight M12 |
| Locking Type | SPEEDCON |
Connection 2
| Type | Plug straight RJ45 |
| Degree of Protection | IP20 |
Cable/line
| Cable Length | 2.00 m |
Sercos III [93K]
| Cable weight | 68 kg/km |
| UL AWM style | 21694 (60 °C / 600 V) |
| Number of Positions | 4 |
| Shielded | yes |
| Cable Type | Sercos III [93K] |
| Conductor structure | 1x4xAWG22/7, SF/TQ |
| Signal runtime | 5.3 ns/m |
| Conductor structure signal line | 7x 0.25 mm |
| AWG Signal Line | 22 |
| Conductor Cross Section | 4x 0.34 mm² |
| Wire diameter incl. insulation | approx. 1.55 mm |
| External Cable Diameter | 6.50 mm ±0.2 mm |
| Outer sheath, material | PVC |
| External sheath, color | signal red RAL 3020 |
| Conductor material | Tin-plated Cu litz wires |
| Material wire insulation | PE |
| Single wire, color | white, yellow, blue, orange |
| Thickness, outer sheath | approx. 0.90 mm |
| Type of pair shielding | Aluminum-lined polyester foil |
| Overall twist | Star quad |
| Max. conductor resistance | ≤ 120 Ω/km |
| Insulation resistance | ≥ 0.5 GΩ*km |
| Coupling resistance | ≤ 20.00 mΩ/m (at 10 Hz) |
| Wave impedance | 100 Ω ±15 Ω (at 100 MHz) |
| Nominal voltage, cable | 600 V |
| Test voltage Core/Core | 2000 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 2000.00 V (50 Hz, 1 min.) |
| Minimum bending radius, fixed installation | 3 x D |
| Minimum bending radius, flexible installation | 7 x D |
| Smallest bending radius, fixed installation | 20 mm |
| Smallest bending radius, movable installation | 46 mm |
| Flame resistance | according to UL 1685 (CSA FT 4) |
| Resistance to Oil | Resistant to oil to a limited extent |
| Other resistance | UV resistant (According to UL 1581, Section 1200) |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (Cable, flexible installation) |
| Ambient temperature (installation) | -20 °C ... 60 °C |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -10 °C ... 60 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 50 °C (Cable, flexible installation) |
Why Proax for Phoenix Contact 1419167?
Proax is an authorized distributor of Phoenix Contact 1419167 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
