Name: 1414077
Brand: Phoenix Contact
SKU: PHX1414077
Price: 8.8600 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

MBKKB 2,5 BU

Weight

0.012 kg

Series MBKKB

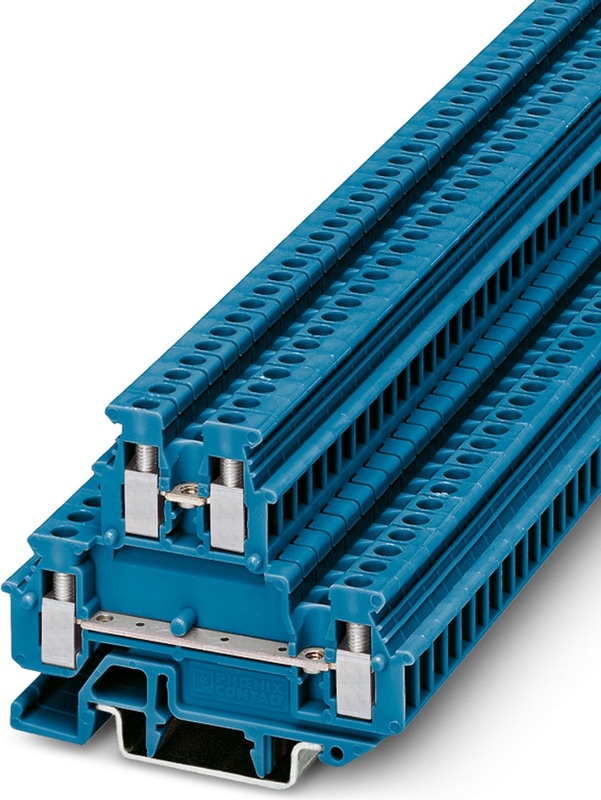

MBKKB 2,5 BU - Mini feed-through terminal block

Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 24 A, connection method: Screw connection, 1st and 2nd level, Rated cross section: 2.5 mm2, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 15, NS 35/7,5, NS 35/15, color: blue

Fixed bridges and test sockets can be used on both levels
Clear arrangement thanks to marking of all terminal points
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Easy potential distribution thanks to standardized plug-in bridges

Product properties

Number of Connections	4
Number of rows	2
Potentials	2

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	0.77 W

Connection data

Number of connections per level	2
Nominal cross section	2.5 mm²

1st and 2nd level

Screw thread	M3
Tightening torque	0.5 ... 0.6 Nm
Stripping length	7 mm
Internal cylindrical gage	A3
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.2 mm² ... 4 mm²
Cross section AWG	24 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]	24 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 1.5 mm²
Cross-section with insertion bridge, rigid	2.5 mm²
Cross-section with insertion bridge, flexible	2.5 mm²
2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1 mm²
Nominal Current	24 A
Maximum Load Current	24 A (with 4 mm² conductor cross section)
Nominal Voltage	500 V
Nominal cross section	2.5 mm²

Rated data (ATEX/IECEx)

Identification	 II 2 G Ex eb IIC Gb
Operating temperature range	-50 °C ... 110 °C
Ex-certified accessories	1413052 D-MBKKB 2,5
Ex-certified accessories	1413065 DP-MBKKB 2,5
Ex-certified accessories	1205053 SZS 0,6X3,5
Ex-certified accessories	3022218 CLIPFIX 35
Ex-certified accessories	1401637 E/MBK
List of bridges	Fixed bridge / FBRNI 2-5 N / 3000175
List of bridges	Fixed bridge / FBRNI 3-5 N / 3000162
List of bridges	Fixed bridge / FBRNI 4-5 N / 3000159
List of bridges	Fixed bridge / FBRNI 5-5 N / 3000146
List of bridges	Fixed bridge / FBRNI 6-5 N / 3000133
List of bridges	Fixed bridge / FBRNI 7-5 N / 3000230
List of bridges	Fixed bridge / FBRNI 8-5 N / 3000243
List of bridges	Fixed bridge / FBRNI 9-5 N / 3000298
List of bridges	Fixed bridge / FBRNI 10-5 N / 2770639
List of bridges	Fixed bridge / FBRNI 20-5 N / 3000609
Bridge data	19 A / 2.5 mm²
Ex temperature increase	40 K (21 A / 2.5 mm²)
Rated voltage	275 V
for bridging with bridge	275 V
Rated Insulation Voltage	250 V
Output	(Permanent)

Ex level General

Rated current	21 A
Maximum Load Current	26 A

Ex connection data General

Torque range	0.5 Nm ... 0.6 Nm
Nominal cross section	2.5 mm²
Rated cross section AWG	14
Connection capacity rigid	0.2 mm² ... 4 mm²
Connection capacity AWG	24 ... 12
Connection capacity flexible	0.2 mm² ... 2.5 mm²
Connection capacity AWG	24 ... 14
2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG rigid	24 ... 16
2 conductors with same cross section, stranded	0.2 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG flexible	24 ... 16
Output	(Permanent)

Ex level Level 1

Contact resistance	0.5 mΩ
Output	(Permanent)

Ex level Level 2

Contact resistance

0.4 mΩ

Dimensions

Width	5.2 mm
End cover width	2.5 mm
Height	62 mm
Depth on NS 15	47.5 mm
Depth on NS 35/7,5	48 mm
Depth on NS 35/15	55.5 mm

Material specifications

Color	blue
Flammability rating according to UL 94	V2
Insulating material group	I
Insulating material	PA
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Relative insulation material temperature index (Elec., UL 746 B)	125 °C

Surge voltage test

Test voltage setpoint	7.3 kV
Result	Test passed

Temperature-rise test

Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 2.5 mm²	0.3 kA
Result	Test passed

Power-frequency withstand voltage

Test voltage setpoint	1.89 kV
Result	Test passed

Mechanical data

Open side panel

Yes

Mechanical strength

Result

Test passed

Attachment on the carrier

DIN rail/fixing support	NS 35/NS 15
Test force setpoint	1 N
Result	Test passed

Test for conductor damage and slackening

Rotation speed	10 rpm
Revolutions	135
Conductor cross section/weight	0.2 mm² / 0.2 kg
Conductor cross section/weight	2.5 mm² / 0.7 kg
Conductor cross section/weight	4 mm² / 0.9 kg
Result	Test passed

Needle-flame test

Time of exposure	30 s
Result	Test passed

Ambient conditions

Ambient Temperature (Operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and Regulations

Connection in acc. with standard

IEC 60947-7-1

Mounting

Mounting Type	NS 15
Mounting Type	NS 35/7,5
Mounting Type	NS 35/15
