1421633
Official DistributorSKU
PHX1421633
MPN
E/MK
Weight
0.001 kg
Series E-MK

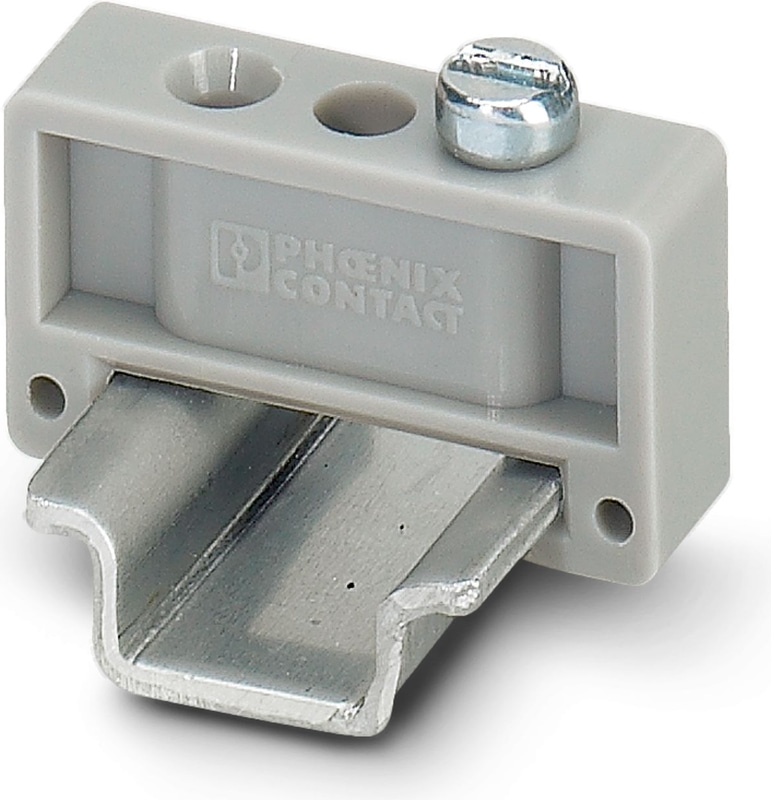

E/MK - End bracket
End clamp, width: 6.2 mm, color: gray
Technical Specifications
Dimensions
| Width | 6 mm |
| Height | 22 mm |
| Depth | 11.4 mm |
| Depth on NS 35/7,5 | 19.5 mm |
| Length | 22 mm |
Material specifications
| Color | gray |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Coating | 3.2 mm fixing hole |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting Type | NS 15 |
Accessories
NS 15 UNPERF 2000MM VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 15 PERF 2000MM VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 15 AL PERF 2000MM VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
NS 15 WH PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
Why Proax for Phoenix Contact 1421633?
Proax is an authorized distributor of Phoenix Contact 1421633 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
