Y distributor with MSTB plug
Official DistributorSKU
MPN
VS-PPC-J-1220-1227-1020-0,2
Weight
0.418 kg
Series VS-PPC-J

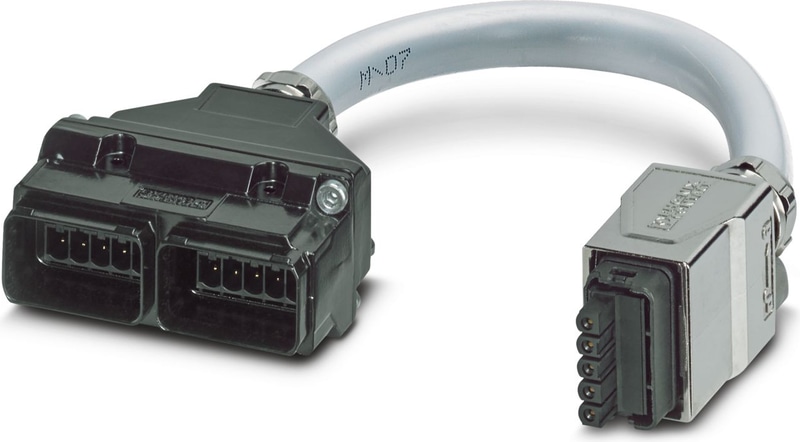

VS-PPC-J-1220-1227-1020-0,2 - Y distributor
Y distributor, degree of protection: IP65, number of positions: 5, material: Metal, connection method: Coupling, color: black
Technical Specifications
Product properties
| Type | Version 14 |
| Number of Positions | 5 |
| Connection profile | Power |
| Number of slots | 2 |
| Shielded | no |
Electrical properties
| Rated voltage (III/3) | 24 V |
| Rated current | 16 A |
| Transmission medium | Copper |
Connection technology
| Connection Method | Coupling |
Signaling
| Status display | No |
| Status display present | No |
Material specifications
| Color | black |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Metal |
| Outer sheath, material | PVC |
| Conductor material | Bare Cu litz wires |
Connection 1
| Type | Plug straight MSTB |
| Locking Type | Push Pull |
Connection 2
| Type | Socket straight MSTB |
| Locking Type | Push Pull |
PVC gray [PVC]
| Shielded | no |
| Cable weight | 242 kg/km |
| Cable Type | PVC gray |
| Cable type (abbreviation) | PVC |
| External Cable Diameter | 11.80 mm |
| Outer sheath, material | PVC |
| External sheath, color | gray RAL 7001 |
| Conductor material | Bare Cu litz wires |
| Conductor structure, voltage supply | 50x 0.25 mm |
| Conductor Cross Section | 5x 2.5 mm² |
| AWG Power Supply | 14 |
| Material wire insulation | PVC |
| Single wire, color | blue, brown, black, gray, green/yellow |
| Overall twist | 5 cores, twisted |
| Nominal voltage, cable | 750 V |
| Nominal voltage, cable | 1000 V (Fixed, protected installation) |
| Test voltage, cable | 4000 V |
| Cable insulation resistance | > 0.2 MΩ*km |
| Minimum bending radius, fixed installation | 4 x D |
| Minimum bending radius, flexible installation | 15 x D |
| Flame resistance | according to IEC 60332-1-2 |
| Ambient Temperature (Operation) | -5 °C ... 70 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
Mechanical data
| Insertion/withdrawal cycles | ≤ 100 |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 70 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | Plug / socket |
Mounting
| Mounting Type | Screw mounting |
Why Proax for Phoenix Contact 1404799?
Proax is an authorized distributor of Phoenix Contact 1404799 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
