Y distributor with 7/8" connector
Official DistributorSKU
MPN
VS-PPC-J-1226-1227-1021-0,2
Weight
0.34 kg
This product is Not Cancellable/Not Returnable
Series VS-PPC-J

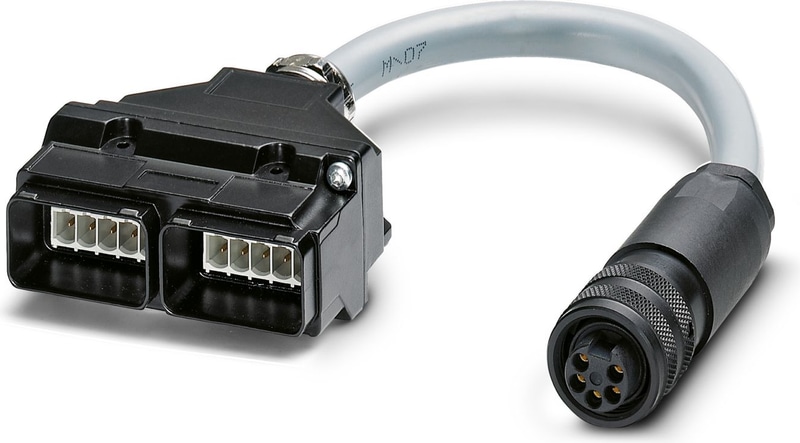

VS-PPC-J-1226-1227-1021-0,2 - Y distributor
PROFINET Y distributor with assembled power line, 5-pos., IP65/IP67, 7/8" connector with metal housing on 2x socket in metal housing, cable length: 0.2 m
Technical Specifications
Product properties
| Number of Positions | 5 |
| Shielded | no |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Housing Material | Zinc die-cast |
| Outer sheath, material | PVC |
| Conductor material | Bare Cu litz wires |
Electrical properties
| Rated voltage (III/3) | 24 V |
| Rated current | 16 A |
Mechanical data
| Insertion/withdrawal cycles | ≤ 100 |
Signaling
| Status display | No |
| Status display present | No |
Connection 1
| Type | Socket straight 7/8"-UNF |
Connection 2
| Type | Socket straight MSTB |
| Locking Type | Push Pull |
PVC gray [PVC]
| Shielded | no |
| Cable Type | PVC gray |
| Cable type (abbreviation) | PVC |
| External Cable Diameter | 8.1 mm |
| Outer sheath, material | PVC |
| External sheath, color | silver-grey RAL 7001 |
| Conductor material | Bare Cu litz wires |
| Conductor Cross Section | 1.5 mm² |
| Smallest bending radius, fixed installation | 40 mm |
| Smallest bending radius, movable installation | 150 mm |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Degree of Protection | IP65/IP67 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 70 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | Plug / socket |
Why Proax for Phoenix Contact 1404812?
Proax is an authorized distributor of Phoenix Contact 1404812 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
